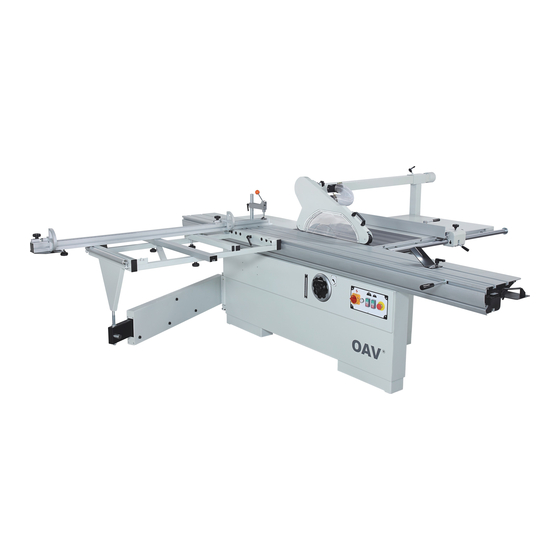

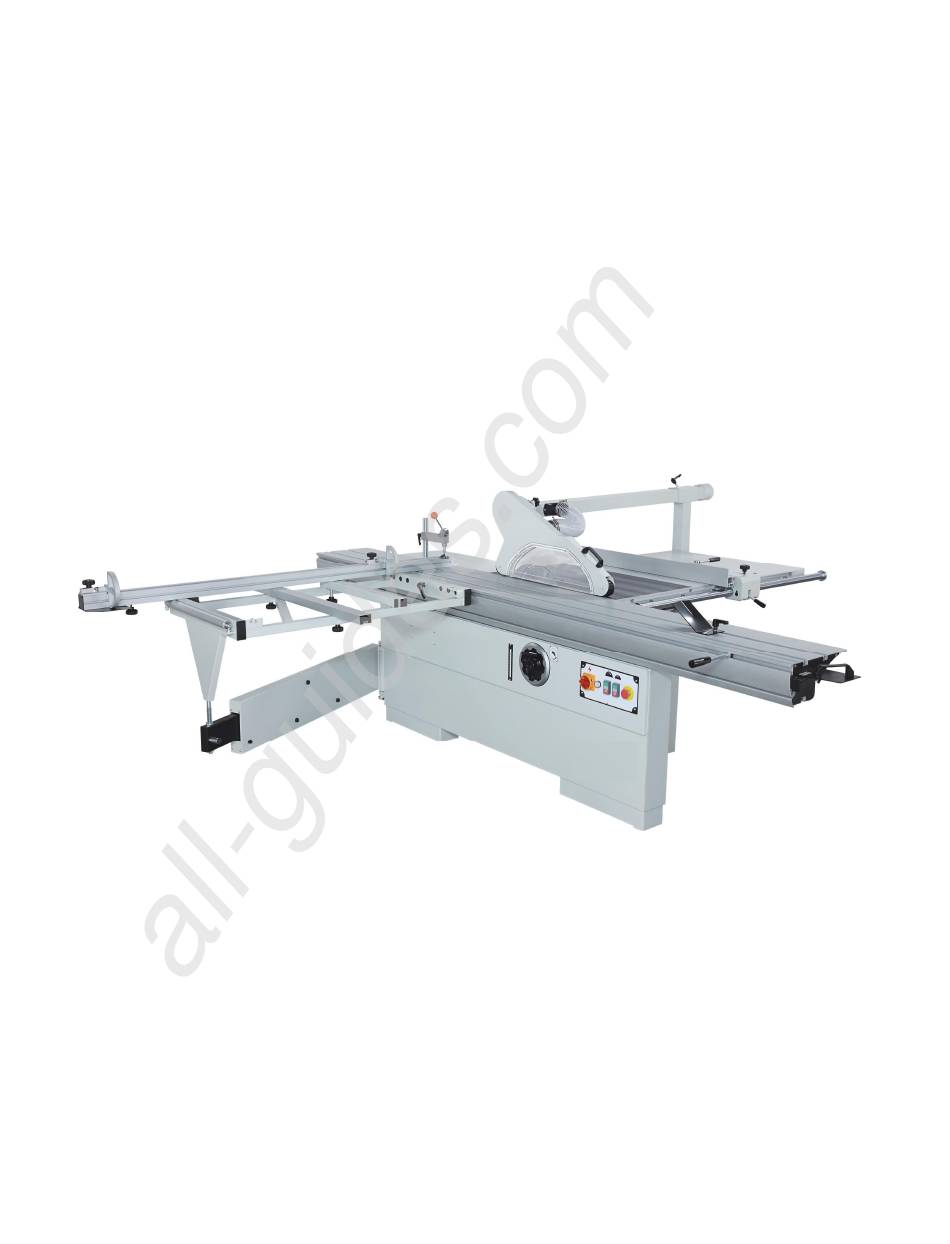

12" PANEL SAW
INSTRUCTION MANUALS

Advertisement

loading
Need help?

Need help?

Do you have a question about the P305 and is the answer not in the manual?

Questions and answers

Related Manuals for OAV P305

Summary of Contents for OAV P305

  • Page 1 All manuals and user guides at all-guides.com 12” PANEL SAW INSTRUCTION MANUALS...
  • Page 2 All manuals and user guides at all-guides.com Table of Contents General Information ............................Safety Rules ..............................Wiring diagram ............................... Specification Sheet ............................Main Features ..............................Assembly And Set Up ............................ (1). Control Panel ............................ (2). Rip Fence ............................(3). Hold Down ............................(4).
  • Page 3 All manuals and user guides at all-guides.com General Information equipment & tools, inc. is specialized to supply full series of panel saw from 1600, 2300, 2500 to 3200mm. The outlook design of this machine is so unique, complete cast iron trunnion bracket instead of sheet metal, enlarged outtirgger and carriage, direct dust collection outlet.
  • Page 4 All manuals and user guides at all-guides.com...
  • Page 5 All manuals and user guides at all-guides.com...
  • Page 6 All manuals and user guides at all-guides.com...
  • Page 7 All manuals and user guides at all-guides.com...
  • Page 8 All manuals and user guides at all-guides.com...
  • Page 9 All manuals and user guides at all-guides.com...
  • Page 10 All manuals and user guides at all-guides.com...
  • Page 11 All manuals and user guides at all-guides.com...
  • Page 12 All manuals and user guides at all-guides.com...
  • Page 13 All manuals and user guides at all-guides.com...
  • Page 14 All manuals and user guides at all-guides.com...
  • Page 15 All manuals and user guides at all-guides.com Specification Sheet Model P305 (one motor) P305 (two motors) Cast iron fixed table 548x896mm dimension Sliding table dimension 3,200x360mm Main saw blade 305mm (Max. 355mm) Main saw bore 30mm Max. cutting height with 90mm (25-115mm) blade at 90°...
  • Page 16 All manuals and user guides at all-guides.com Main Feature 1. Flip Stopper-Large stopper for accurate measurements 2. Crosscut Fence-90° and 45° quick position design for a precise crosscutting operation 3. Hold Down : Strong design with fine adjustment and floating rubber pad. 4.
  • Page 17 All manuals and user guides at all-guides.com Optional (5) Moving & fixing the base unit Place a level on the saw table and djusting foot stands, so the saw table is level from left to right and from front to back.
  • Page 18 All manuals and user guides at all-guides.com 4. Attach the small extension table with cap screws, lock Upper lock washer and flat washers(Fig. 7) 5. Check the surfaces 0 degree the table with a straightedge(Fig. 8) 6. Assemble the supportbracket into the extension table(we have rest holes for fixing), then adjust the levelling screw of foot struds in order to make left ext.
  • Page 19 All manuals and user guides at all-guides.com (7) Scale adjustment 1. Tight the cap screws to the extension table and adjust to be with the top of the table. Rip fence Clamping plate...
  • Page 20 All manuals and user guides at all-guides.com...
  • Page 21 All manuals and user guides at all-guides.com optional 1 2 1 2 1 2 1 2...
  • Page 22 All manuals and user guides at all-guides.com...
  • Page 23 All manuals and user guides at all-guides.com fig.30 (fig.31)
  • Page 24 All manuals and user guides at all-guides.com (fig.32) (fig.32) (fig.33) Use T tool to adjust scoring blade (Fig. 36-1/-2) Adjusting Adjusting scoring rise/fall scoring rise/fall Fig. 36-1 Adjusting scoring forwader/back Fig. 36-2...
  • Page 25 All manuals and user guides at all-guides.com fig.38...
  • Page 26 All manuals and user guides at all-guides.com Run the hose over and aconnect it to the dust collection system.
  • Page 27 All manuals and user guides at all-guides.com...
  • Page 28 All manuals and user guides at all-guides.com To fix the scoring by offered U Tool and using the arbor wrench to remove the nut. (The arbor nut has Fig.45-1 right hand threads and loosens by turning counterclockwise.(fig.45-1)
  • Page 29 All manuals and user guides at all-guides.com...
  • Page 30 All manuals and user guides at all-guides.com Vertical Horizontal...
  • Page 31 All manuals and user guides at all-guides.com forward mounted crosscut fence Rear mounted crosscut fence...
  • Page 32 All manuals and user guides at all-guides.com...
  • Page 33 All manuals and user guides at all-guides.com Lubricate 90° tilt stop hex nut...
  • Page 34 All manuals and user guides at all-guides.com Flat belt as scoring arbor(without scoring To change V-belt for the main motor motor) V-belt Flat Scoring blade arbor Scoring motor (Fig.65) 90 stop bolt (Fig.65-1) 45 stop bolt...
  • Page 35 All manuals and user guides at all-guides.com Cover (Fig. 69-1) Fig. 69-1...
  • Page 36 All manuals and user guides at all-guides.com...
  • Page 37 All manuals and user guides at all-guides.com P305 ASSEM01-1 (One Motor)
  • Page 38 All manuals and user guides at all-guides.com P305 ASSEM01-1 (One Motor) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 150527 2x300x7.5(M/M) Hex Head Bolt M10*40 SH100800 Hex Nut NH101700 Machine frame 206367 Plate 206367-37 SR069300 Cap Screw M6*12 Lock Washer...
  • Page 39 All manuals and user guides at all-guides.com P305 ASSEM01-1 (One Motor) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 605408 Switch Box Strain Relief 998621 Lock 203430 Door 205259 Lock Washer WS040000 SP040400 Pan Head Screw M4*20 Button Head Screw...
  • Page 40 All manuals and user guides at all-guides.com P305 ASSEM01-1 (One Motor) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 107 SR050200 Cap Screw M5x10 Setscrew M5x10 108 SS050200 Indicator Block 109 200843 Cap Screw M6x12 110 SR069300 Lock Washer 111 WS060000...
  • Page 41 All manuals and user guides at all-guides.com P305 ASSEM01-2 (Two motor-optional)
  • Page 42 All manuals and user guides at all-guides.com P305 ASSEM01-2 (Two motor-optional) PARTS NAME ITEM PART NO SIZE Q`TY NOTE 150527 2x300x7.5(M/M) SH100800 Hex Head Bolt M10*40 Hex Nut NH101700 Machine frame 206367 Plate 206367-37 Cap Screw SR069300 M6*12 WS060000 Lock Washer...
  • Page 43 All manuals and user guides at all-guides.com P305 ASSEM01-2 (Two motor-optional) PARTS NAME ITEM PART NO SIZE Q`TY NOTE 605408 Switch Box Strain Relief 998621 Lock 203430 Door 205259 Lock Washer WS040000 SP040400 Pan Head Screw M4*20 Button Head Screw...
  • Page 44 All manuals and user guides at all-guides.com P305 ASSEM01-2 (Two motor-optional) PARTS NAME ITEM PART NO SIZE Q`TY NOTE 106 207399 Steel Wire Cap Screw 107 SR050200 M5x10 Setscrew 108 SS050200 M5x10 Indicator Block 109 200843 Cap Screw 110 SR069300...
  • Page 45 All manuals and user guides at all-guides.com P305 ASSEM01-3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE SS100400 Set Screw M10*20 NH101700 Hex Nut Left Ext. Plate 207077 R / S Left Ext. Plate OPT. 207151 R / OPT. Cap Screw...
  • Page 46 All manuals and user guides at all-guides.com P305 ASSEM02-1 (TWO MOTOR-optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE Control Panel Face Assembly (5HP CE.CSA) AB200888A-A A, OPT. 101 200888A Control Panel Face M4X8 102 ST049200 Phillips Head Sheet Metal Screw...
  • Page 47 All manuals and user guides at all-guides.com P305 ASSEM02-2 (ONE MOTOR) PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB200888A-B Control Panel Face Assembly (5HP CE.CSA) Control Panel Face 101 200888A Phillips Head Sheet Metal Screw M4X8 102 ST049200 103 994808...
  • Page 48 All manuals and user guides at all-guides.com P305 ASSEM02-3 (optional) ITEM PART NO PARTS NAME SIZE Q`TY NOTE Dust Cove R2 PRCF 994855A Switch Button-ON R2 PNF-1A-G 994855 Switch Button-OFF R2 PNF-1B-R 994856 Pilot Lamp YK.24V φ22 (W) 996002 207248...
  • Page 49 All manuals and user guides at all-guides.com P305 ASSEM03-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Cap Screw M6*12 SR069300 Lock Washer WS060000 Cap Screw M5*16 SR059400 206337 Fix Plate Washer M5*10 WF051010...
  • Page 50 All manuals and user guides at all-guides.com P305 ASSEM03-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE NL050800 Lock Nut Cap Screw M5*12 SR059300 Lock Washer WS050000 Hex Head Bolt(+)/W M8x12 SF089300 Channel Base 206301 YF206301 AB136012-3 Door Safety Switch Assembly...
  • Page 51 All manuals and user guides at all-guides.com P305 ASSEM03-2.1...
  • Page 52 All manuals and user guides at all-guides.com P305 ASSEM03-2.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE LJ019130 Belt OPT , 50Hz P J 1 9 0 x 1 3 Belt LJ018130 OPT , 60Hz P J 1 8 0 x 1 3...
  • Page 53 All manuals and user guides at all-guides.com P305 ASSEM03-2.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 110 RR280010 Check ring ψ 2 8 Hex Nut 111 NH121904 M 1 2 × P 1 . 7 5 X 6 T...
  • Page 54 All manuals and user guides at all-guides.com P305 ASSEM03-3 (TWO MOTOR-optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE Belt 3VX-265 208044 50Hz/OPT. Belt 3VX-250 206399 60Hz/OPT. Setscrew M8×10 SS080200 208043 Belt Pulley 50Hz CE/OPT. Belt Pulley 60Hz 208042 CSA/OPT.
  • Page 55 All manuals and user guides at all-guides.com P305 ASSEM03-4...
  • Page 56 All manuals and user guides at all-guides.com P305 ASSEM03-4 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 206304 Gip Plate Button Head Screw SJ100500 M 1 0 × 2 5 Spring Washer WS100000 M 1 0 KD050520 5 x 5 x 2 0 201822 M 1 6 x 2 .
  • Page 57 All manuals and user guides at all-guides.com P305 ASSEM03-4 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 211 SS050200 Setscrew M5x10 Washer M8×ψ30 212 WF083030 Lock Washer 213 WS080000 Button Head Screw M8×20 214 SJ080400 Bushing 215 200964...
  • Page 58 All manuals and user guides at all-guides.com P305 ASSEM03-4.1 (optional)
  • Page 59 All manuals and user guides at all-guides.com P305 ASSEM03-4.1 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 206304 Gip Plate Button Head Screw SJ100500 M 1 0 × 2 5 Spring Washer WS100000 M 1 0 KD050520 5 x 5 x 2 0 201822 M 1 6 x 2 .
  • Page 60 All manuals and user guides at all-guides.com P305 ASSEM03-4.1 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 208 WS050000 Lock Washer Button Head Screw 209 SJ050200 M 5 × 1 0 Setscrew 211 SS050200 M 5 x 1 0...
  • Page 61 All manuals and user guides at all-guides.com P305 ASSEM04-1...
  • Page 62 All manuals and user guides at all-guides.com P305 ASSEM04-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 100203 Lock Knob Washer 204263 ψ 1 0 × ψ 2 0 Washer WF102730 M 1 0 × ψ 2 7 hand wheel 8"...
  • Page 63 All manuals and user guides at all-guides.com P305 ASSEM05-1...
  • Page 64 All manuals and user guides at all-guides.com P305 ASSEM05-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 100203 Lock Knob Washer 204263 ψ 1 0 × ψ 2 0 Washer M10×ψ30 WF103030 Hand Wheel 204289B Hand Wheel 204176A OPT. 200855...
  • Page 65 All manuals and user guides at all-guides.com P305 ASSEM06-1...
  • Page 66 All manuals and user guides at all-guides.com P305 ASSEM06-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB206347-1 Pulley ASM Hex Head Bolt M12×20 SH120440 Flange 206320 Shaft 206321 Ball Bearing 6202LLB BB620204 RS150000 Int. Retaining Ring Wave Washer WW263403 ψ...
  • Page 67 All manuals and user guides at all-guides.com P305 ASSEM06-2 (optional-two motor)
  • Page 68 All manuals and user guides at all-guides.com P305 ASSEM06-2 (optional-two motor) PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB206315-1 Pulley ASM Hex Head Bolt M12×20 101 SH120440 Flange 102 206320 Shaft 103 206321 Ball Bearing 6202LLB 104 BB620204 105 RS150000 Int.
  • Page 69 All manuals and user guides at all-guides.com P305 ASSEM06-4 (optional -two motors) ITEM PART NO PARTS NAME SIZE Q`TY NOTE Cap Screw M12*100 SR122000 Lock Washer WS120000 Pully 206314 50Hz Pully 206336 60Hz LJ014070 Belt 140J7 60Hz Belt 150J7 LJ015070...
  • Page 70 All manuals and user guides at all-guides.com P305 ASSEM06-4 (optional -two motors) PARTS NAME SIZE Q`TY ITEM PART NO NOTE NH101700 Hex Nut Washer WF063030 M 6 * ψ 3 0 Lock Washer WS060000 Cap Screw M6*16 SR069400 Washer WF143530...
  • Page 71 All manuals and user guides at all-guides.com P305 ASSEM07-1 (optional)
  • Page 72 All manuals and user guides at all-guides.com P305 ASSEM07-1 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 200934-2 Magnet Screw Threads 203416 Hex Nut M20x2.5p NH203000 Plug 40*120 203470 Set Screw M8*35 SS080700 201146-1 Magnetic Bracket Sliding Tube 2500mm, 3200mm 205208 OPT.
  • Page 73 All manuals and user guides at all-guides.com P305 ASSEM07-1 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE NH081300 Hex Nut Cover 13mm 207582 Button Head Screw M5*8 SJ059200 Plate 207528...
  • Page 74 All manuals and user guides at all-guides.com P305 ASSEM08-1...
  • Page 75 All manuals and user guides at all-guides.com P305 ASSEM08-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 201103 T-Nut M8x1.25p Plug HP-16 203230 Handle 203128 T-Block 201456 Adjust Handle M12x1.75px57L 200815 200954 Knob Screw M8x50 Knob Screw M8x50 200954 Support Frame ASM...
  • Page 76 All manuals and user guides at all-guides.com P305 ASSEM08-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE BR000041 Puller Bolt 3.2X6/6.4 Lock Washer WS080000 Cap Screw M8*25 SR080500 Block 203122 Washer WF123030 WF083030 Washer...
  • Page 77 All manuals and user guides at all-guides.com P305 ASSEM09-1...
  • Page 78 All manuals and user guides at all-guides.com P305 ASSEM09-1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB200823 Flip Stop Assembly Flip Stop 101 200823 Rotation Shaft 102 200824 Knob M8x1.25px40L 103 200827 Stop Bracket 104 200826 105 201103 T-Nut M8x1.25p...
  • Page 79 All manuals and user guides at all-guides.com P305 ASSEM10-3...
  • Page 80 All manuals and user guides at all-guides.com P305 ASSEM10-3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB206422 Rip Fence Housing Assembly Counter Sunk Screw M6*16 101 SI069400 Fixed Plate 102 206433 Shafts 103 203193 Lock Nut 104 NL081000 105 200875...
  • Page 81 All manuals and user guides at all-guides.com P305 ASSEM10-3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE WS080000 Lock Washer End Washer 206437 Round Rail 201004 Setscrew M6x10 SS060200 Ring Stop 200957 SJ069300 Button Head Screw M6*12 Washer M6*16 WF061620...
  • Page 82 All manuals and user guides at all-guides.com P305 ASSEM12-1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Hood Assembly AB205075 Hood 205075 Screw M3×16 ST029404 Screw M3×12 ST029304 205076 Hood Screw M5×10 203110 Shaft 205124 Lock Nut NL101700 Cap Screw M10×25...
  • Page 83 All manuals and user guides at all-guides.com P305 ASSEM12-2 (optional)
  • Page 84 All manuals and user guides at all-guides.com P305 ASSEM12-2 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 201097 Sliding Rod Bearing LM10UU BL190402 Bearing Bushing 201099 Button Head Screw M6x12 SJ069300 Lock Washer WS060000 WF061310 Washer M6x13 Fixed Plate...
  • Page 85 All manuals and user guides at all-guides.com P305 ASSEM12-2 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 201109 Fasten Handle M10x35 Fixed Bracket 207123 Fixed Bracket 201095 Washer M6x13 WF061310 Lock Washer WS060000 SR069400 Cap Screw M6x16 Rod Assembly...
  • Page 86 All manuals and user guides at all-guides.com P305 ASSEM12-9 (optional)
  • Page 87 All manuals and user guides at all-guides.com P305 ASSEM12-9 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE NL101700 Lock Nut M 1 0 Gas Expansion Cylinder 205004 Washer WF102020 M 1 0 * ψ 2 0 Cap Screw SR060400...
  • Page 88 All manuals and user guides at all-guides.com P305 ASSEM12-9 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE WF061920 Washer M 6 * ψ 1 9 Plate 205073 φ 3 0 0 ~ 3 5 0 Plate 205032 OPT. φ 3 5 0 ~ 4 0 0...
  • Page 89 All manuals and user guides at all-guides.com P305 ASSEM12-9 (optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 202 SP040200 Pan Head Screw M 4 * 1 0 Protection Hood 203 205355 Roller ASM 204 AB207868 Pan Head Screw 205 SP040200...
  • Page 90 All manuals and user guides at all-guides.com P305 ASSEM14-1 PARTS MA,E SIZE Q`TY ITEM PART NO NOTE Down Press ASM AB207065-1 OPT. Adjust Handle 101 207143 102 100271 Ball Knob M8×P1.25 Handle Bar 103 207070 104 207067 Ext. Retaining Ring...
  • Page 91 All manuals and user guides at all-guides.com P305 ASSEM14-2 (optional 2200mm) PARTS NAME SIZE Q`TY ITEM PART NO NOTE Handle 200939 Washer M12x30 WF123030 Plastic Washer 992496 φ13xφ25 T-Nut M12x1.75p 201849...
  • Page 92 All manuals and user guides at all-guides.com P305 ASSEM14-3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Edge Shoe Plate Assembly AB201830 101 201830 Edge Shoe Plate Spint Pin 102 PS051800 φ5xφ18 Washer M10x25 103 WF102025 Knob 104 203718 T-Nut M10x1.5p...
  • Page 93 All manuals and user guides at all-guides.com P305 ASSEM14-4 (optional-2200mm) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 200814 Fasten Handle WF083030 Flat Washer M 8 × ψ 3 0 Spring plungers with ball M4×9 201632 Square Fence 017210 Stop Plate Assembly AB017219 A, OPT.
  • Page 94 All manuals and user guides at all-guides.com P305 ASSEM14-4 (optional-2200mm) PARTS NAME SIZE Q`TY ITEM PART NO NOTE 104 SP049300 Pan Head Bolt M4×12 Pointer 105 201366 Fixed Block 106 201365 Stop Bar 107 201367 Pan Head Bolt M4×16 108 SP049400...
  • Page 95 All manuals and user guides at all-guides.com P305 ASSEM20.2 (Sliding Table-optional)
  • Page 96 All manuals and user guides at all-guides.com P305 ASSEM20.2 (Sliding Table-optional) PARTS NAME SIZE Q`TY ITEM PART NO NOTE Sliding Table Assembly 2200mm QY2360220E OPT. Table 360x2200mm 2360220E Hex Nut M12x1.75p NH121900 Lock Washer WS120000 Washer M12x30 WF123030 201665 Cap Screw M12x1.75 L=60...
