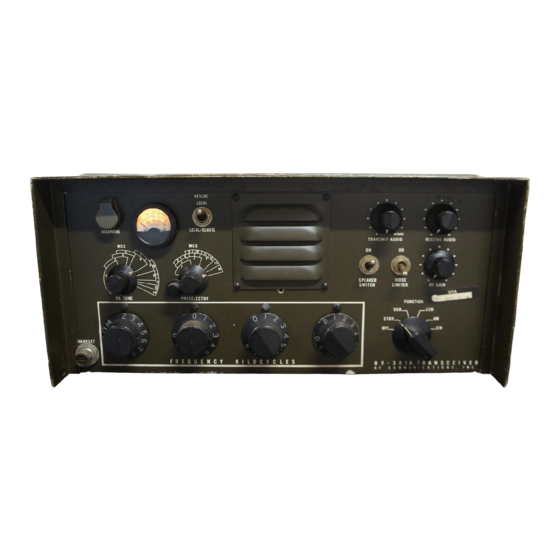

Page 1 All manuals and user guides at all-guides.com RF-301A SSB Transceiver Instruction Manual/PM-0348H...
Page 2 All manuals and user guides at all-guides.com...
Page 3 All manuals and user guides at all-guides.com...
Page 4 All manuals and user guides at all-guides.com...
Page 5 All manuals and user guides at all-guides.com...
Page 6 All manuals and user guides at all-guides.com...
Page 7 All manuals and user guides at all-guides.com...
Page 8 All manuals and user guides at all-guides.com...
Page 9 All manuals and user guides at all-guides.com...
Page 10 All manuals and user guides at all-guides.com...
Page 11 All manuals and user guides at all-guides.com 1-3/1-4...
Page 12 All manuals and user guides at all-guides.com...
Page 13 All manuals and user guides at all-guides.com...
Page 14 All manuals and user guides at all-guides.com...
Page 15 All manuals and user guides at all-guides.com...
Page 16 All manuals and user guides at all-guides.com...
Page 17 All manuals and user guides at all-guides.com...
Page 18 All manuals and user guides at all-guides.com...
Page 19 All manuals and user guides at all-guides.com...
Page 20 All manuals and user guides at all-guides.com...
Page 21 All manuals and user guides at all-guides.com...
Page 22 All manuals and user guides at all-guides.com 2-11/2-12...
Page 23 All manuals and user guides at all-guides.com...
Page 24 All manuals and user guides at all-guides.com...
Page 25 All manuals and user guides at all-guides.com...
Page 26 All manuals and user guides at all-guides.com...
Page 27 All manuals and user guides at all-guides.com...
Page 28 All manuals and user guides at all-guides.com...
Page 29 All manuals and user guides at all-guides.com...
Page 30 All manuals and user guides at all-guides.com...
Page 31 All manuals and user guides at all-guides.com...
Page 32 All manuals and user guides at all-guides.com...
Page 33 All manuals and user guides at all-guides.com...
Page 34 All manuals and user guides at all-guides.com...
Page 35 All manuals and user guides at all-guides.com...
Page 36 All manuals and user guides at all-guides.com...
Page 37 All manuals and user guides at all-guides.com...
Page 38 All manuals and user guides at all-guides.com...
Page 39 All manuals and user guides at all-guides.com...
Page 40 All manuals and user guides at all-guides.com...
Page 41 All manuals and user guides at all-guides.com...
Page 42 All manuals and user guides at all-guides.com...
Page 43 All manuals and user guides at all-guides.com...
Page 44 All manuals and user guides at all-guides.com...
Page 45 All manuals and user guides at all-guides.com...
Page 46 All manuals and user guides at all-guides.com...
Page 47 All manuals and user guides at all-guides.com...
Page 48 All manuals and user guides at all-guides.com...
Page 49 All manuals and user guides at all-guides.com...
Page 50 All manuals and user guides at all-guides.com...
Page 51 All manuals and user guides at all-guides.com...
Page 52 All manuals and user guides at all-guides.com...
Page 53 All manuals and user guides at all-guides.com...
Page 54 All manuals and user guides at all-guides.com...
Page 55 All manuals and user guides at all-guides.com...
Page 56 All manuals and user guides at all-guides.com...
Page 57 All manuals and user guides at all-guides.com...
Page 58 All manuals and user guides at all-guides.com...
Page 59 All manuals and user guides at all-guides.com...
Page 60 All manuals and user guides at all-guides.com...
Page 61 All manuals and user guides at all-guides.com...
Page 62 All manuals and user guides at all-guides.com...
Page 63 All manuals and user guides at all-guides.com...
Page 64 All manuals and user guides at all-guides.com...
Page 65 All manuals and user guides at all-guides.com...
Page 66 All manuals and user guides at all-guides.com...
Page 67 All manuals and user guides at all-guides.com...
Page 68 All manuals and user guides at all-guides.com...
Page 69 All manuals and user guides at all-guides.com...
Page 70 All manuals and user guides at all-guides.com...
Page 71 All manuals and user guides at all-guides.com...
Page 72 All manuals and user guides at all-guides.com...
Page 73 All manuals and user guides at all-guides.com...
Page 74 All manuals and user guides at all-guides.com...
Page 75 All manuals and user guides at all-guides.com...
Page 76 All manuals and user guides at all-guides.com...
Page 77 All manuals and user guides at all-guides.com...
Page 78 All manuals and user guides at all-guides.com...
Page 79 All manuals and user guides at all-guides.com...
Page 80 All manuals and user guides at all-guides.com 6-41/6-42...
Page 81 All manuals and user guides at all-guides.com...
Page 82 All manuals and user guides at all-guides.com...
Page 83 All manuals and user guides at all-guides.com...
Page 84 All manuals and user guides at all-guides.com...
Page 85 All manuals and user guides at all-guides.com...
Page 86 All manuals and user guides at all-guides.com...
Page 87 All manuals and user guides at all-guides.com...
Page 88 All manuals and user guides at all-guides.com...
Page 89 All manuals and user guides at all-guides.com...
Page 90 All manuals and user guides at all-guides.com...
Page 91 All manuals and user guides at all-guides.com...
Page 92 All manuals and user guides at all-guides.com...
Page 93 All manuals and user guides at all-guides.com...
Page 94 All manuals and user guides at all-guides.com...
Page 95 All manuals and user guides at all-guides.com Figure 4.6 Signal Block Diagram.
Page 96 All manuals and user guides at all-guides.com...
Page 97 All manuals and user guides at all-guides.com Figure 8.1 RF Amp fier Parts Location.
Page 98 All manuals and user guides at all-guides.com...
Page 99 All manuals and user guides at all-guides.com Figure 8.2 RF Amplifier Schematic Diagram.
Page 100 All manuals and user guides at all-guides.com...
Page 101 All manuals and user guides at all-guides.com Figure 8.3 Divider/Spectrum Generator Parts Location.
Page 102 All manuals and user guides at all-guides.com Figure 8.4 Divider/Spectrum Generator Schematic Diagram.
Page 103 All manuals and user guides at all-guides.com...
Page 104 All manuals and user guides at all-guides.com Figure 8.5 11,6 Mhz Error Mixer Parts Location.
Page 105 All manuals and user guides at all-guides.com Figure 8.6 11,6 Mhz Error Mixer Schematic Diagram.
Page 106 All manuals and user guides at all-guides.com...
Page 107 All manuals and user guides at all-guides.com Figure 8.7 455 Khz Error Mixer Parts Location.
Page 108 All manuals and user guides at all-guides.com Figure 8.8 455 Khz Error ixer Schematic Diagram.
Page 109 All manuals and user guides at all-guides.com...
Page 110 All manuals and user guides at all-guides.com Figure 8.9 Translator Parts Location.
Page 111 All manuals and user guides at all-guides.com Figure 8.10 Translator Schematic Diagram.
Page 112 All manuals and user guides at all-guides.com...
Page 113 All manuals and user guides at all-guides.com Figure 8.11 IF Amplifier Parts Location.
Page 114 All manuals and user guides at all-guides.com Figure 8.12 IF Amplifier Parts Location.
Page 115 All manuals and user guides at all-guides.com...
Page 116 All manuals and user guides at all-guides.com 8.13 Audio/Modulator Parts Location.
Page 117 All manuals and user guides at all-guides.com Figur e 8.14 Audio/Modulator Schematic Diag ram.
Page 118 All manuals and user guides at all-guides.com...
Page 119 All manuals and user guides at all-guides.com 8.15 VFO Parts Location & 8.16 VFO Schematic Diagram.
Page 120 All manuals and user guides at all-guides.com...
Page 121 All manuals and user guides at all-guides.com 8.17 MHZ Oscillator Parts Location & 8.18 Mhz Oscillator Schematic Diagram.
Page 122 All manuals and user guides at all-guides.com...
Page 123 All manuals and user guides at all-guides.com 8.19 100 Khz Oscillator Parts Location & 8.20 100 Khz Oscillator Schematic Diagram.
Page 124 All manuals and user guides at all-guides.com...
Page 125 All manuals and user guides at all-guides.com 8.21 10 Khz Oscillator Parts Location & 8.22 10 Khz Oscillator Schematic Diagram.
Page 126 All manuals and user guides at all-guides.com...
Page 127 All manuals and user guides at all-guides.com 8.23 1 Khz Oscillator Parts Location & 8 .24 1 Khz Oscillator Schematic Diagram.
Page 128 All manuals and user guides at all-guides.com...
Page 129 All manuals and user guides at all-guides.com 8.25 ALC Parts Location & 8.26 ALC Schematic Diagram.
Page 130 All manuals and user guides at all-guides.com...
Page 131 All manuals and user guides at all-guides.com 8.27 ACC Parts Location & 8.28 ACC Schematic Diagram.
Page 132 All manuals and user guides at all-guides.com...
Page 133 All manuals and user guides at all-guides.com 8.29 Audio Amplifier Parts Location & 8.30 Audio Amplifier Schematic Diagram.
Page 134 All manuals and user guides at all-guides.com...
Page 135 All manuals and user guides at all-guides.com 8.31 Main Frame Schematic Diagram.
Page 136 All manuals and user guides at all-guides.com...
Page 137 All manuals and user guides at all-guides.com...
Page 138 All manuals and user guides at all-guides.com...
Page 139 All manuals and user guides at all-guides.com...
Page 140 All manuals and user guides at all-guides.com 8.32 RF-303 13,5 V DC Power Module Schematic Diagram.
Page 141 All manuals and user guides at all-guides.com 8.33 RF-304 27,5 V DC Power Module Schematic Diagram.
Page 142 All manuals and user guides at all-guides.com...
Page 143 All manuals and user guides at all-guides.com 8.34 Receiver Protector Assembly Parts Location & 8.35 Receiver Protector Assembly Schematic Diagram.
Page 144 All manuals and user guides at all-guides.com...
Page 145 All manuals and user guides at all-guides.com 8.36 MK-0009 Microphone Schematic Diagram.
