Summary of Contents for TTC Lifting CL05

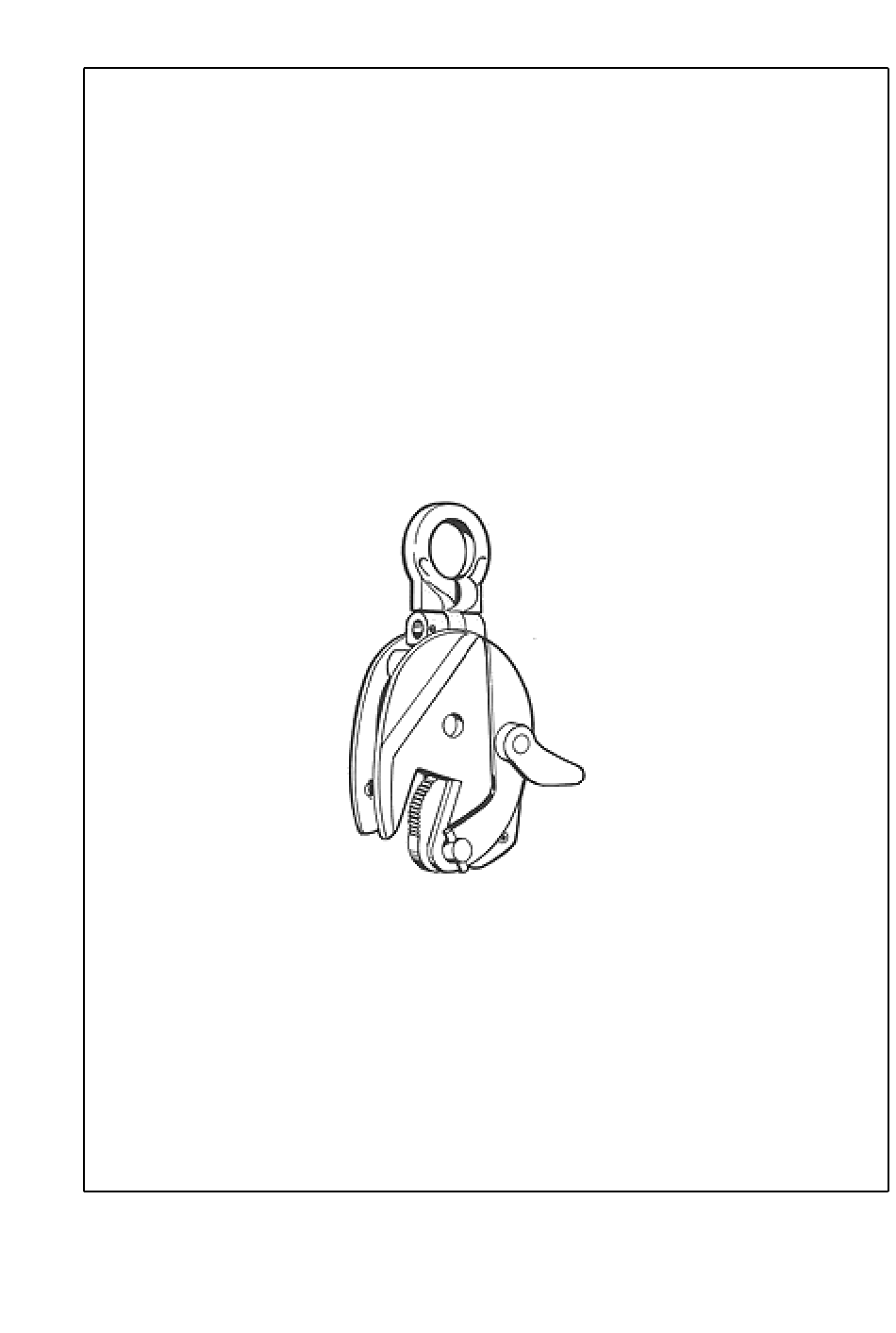

- Page 1 INSTRUCTUCTION MANUAL Note: Owner/Operator must read and understand this instruction manual before using the clamp.
-
Page 2: Specification
General This manual contains important information for the correct installation, operation, and maintenance of the equipment described herein. The use of any clamp presents some risk of personal injury or property damage. All persons involved in such installation, operation and maintenance should be thoroughly familiar with the contents of this manual. - Page 3 Model CL05 CL10 CL20 CL30 Rated capacity t Test load 7.35 14.7 29.4 44.1 Jaw Opening mm 0－15 0－20 0－25 0－30 Dimensions Net weight 14.8...
-
Page 4: Installation
Installation 3.1 Estimate the plate that is to be lifted or moved and make sure it does not exceed the rated load of the clamp. 3.2 This clamp with pivoting shackle can be used for lifting and transporting plate at various angles, but the load capacity is reduced, as seen on the diagram below showing the load/force capacities. - Page 5 The larger the angle of inclination on 2-leg slings the greater is the tension force between the individual slings and damps that has to be taken up in addition to the plate. The reductions in carrying capacity for the inclinations 45" and from 45~ to 60~ as shown as follows.
-
Page 6: Operation
4.Operation Warning To avoid damage and/or personal injury: 1 .Do not exceed maximum load of the clamp. 2. Do not use the clamp to lift or transport people. 3. Do not use damaged clamp or clamp that is not working properly. -
Page 7: Maintenance/Inspection
plate. 4.2 Danger zones Do not lift or transport loads while personnel are in the danger zone. Do not stand or place hands or feet under the raised plate. Raised loads are not to be left unattended for a longer period of time. -
Page 8: Parts List
6.Parts List... - Page 9 Item Description Quantity Pivoting Shackle Rollpin Connecting Block Body Locknut Lockwasher Round Jaw Screw Rollpin Function Lever Connecting Block Pin Pivoting Shackle Pin Rollpin Function Block Pulling Spring Rollpin Connecting Plate Clamping Jaw Rollpin Jaw Pin Shim Washer...
