IMPORTANT
STATED OTHERWISE IN THESE INSTRUCTIONS!

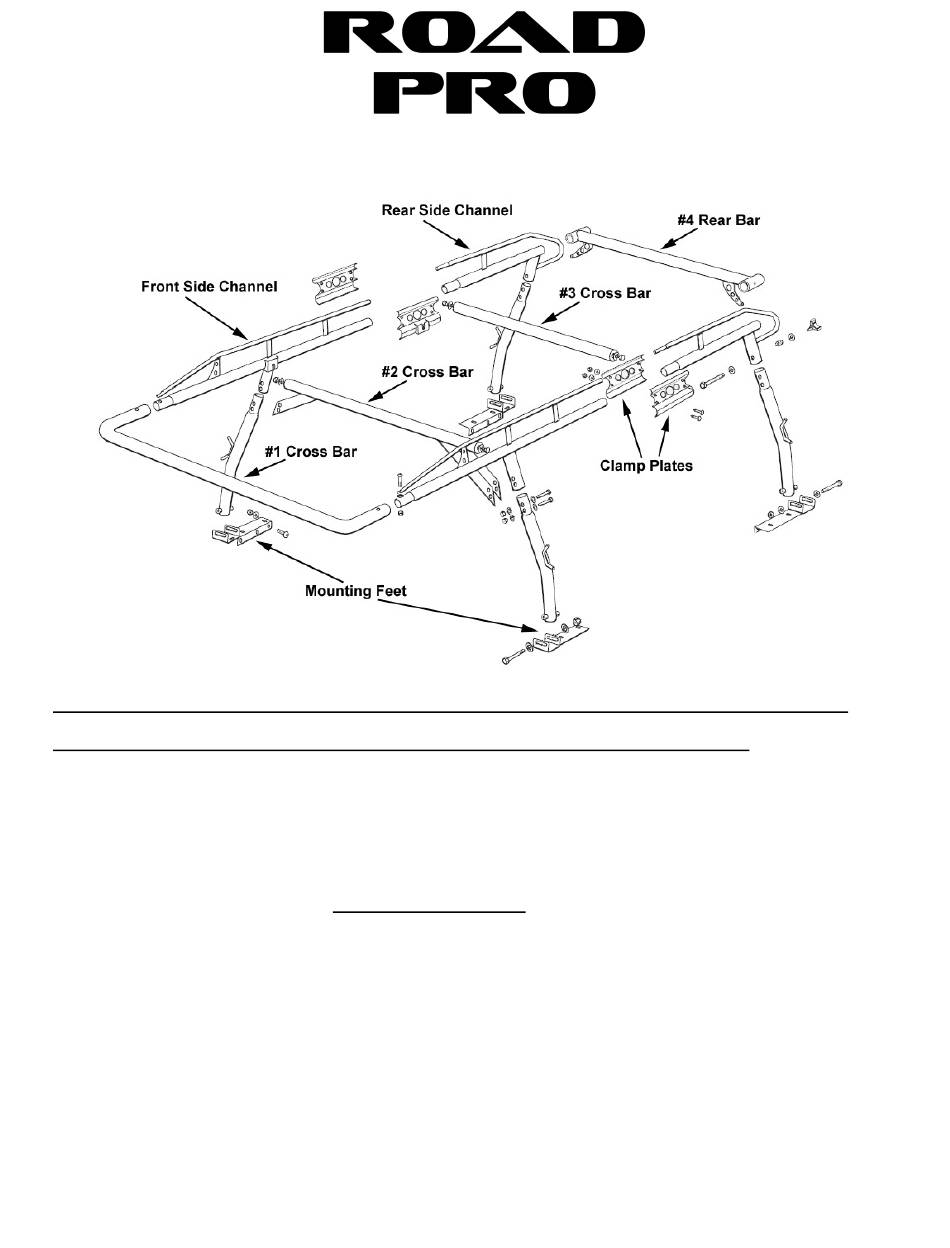

1. SIDE CHANNEL ASSEMBLY - Slide rear side channels fully into front side channels.
2. ASSEMBLE #4 REAR BAR - Slide the #4 rear bar onto the side channels and secure
with two clevis pins (Y) & two lynch pins (S) (See Hardware List On Page 5)
3. LEG INSTALLATION – (All 4 legs are identical) Insert the legs into the rack assembly
with the tie-down hooks facing outward. Bolt the rear legs and rear bar together using two
bolts (N) each bolt receives two flat washers (G) (one on each side of the leg.) A 10mm
high nut (B) and a black plastic knob (W)
Do NOT put bolts in the front legs yet.
4. CLAMP PLATE INSTALLATION - Attach the clamp plates to the side channel
assemblies. Clamp plate with slotted bracket faces the inside. (This is where you will
mount the #3 crossbar.) Secure each bracket with four carriage bolts (M) each bolt
receives one flat washer (U) one lock washer (P) and one nut (Z) on the inside of the
bracket.
Stainless Steel Truck Rack
: LEAVE ALL HARDWARE LOOSE UNLESS
Page 1 of 6
Advertisement
Summary of Contents for Roadpro Stainless Steel Truck Rack
- Page 1 Stainless Steel Truck Rack IMPORTANT : LEAVE ALL HARDWARE LOOSE UNLESS STATED OTHERWISE IN THESE INSTRUCTIONS! 1. SIDE CHANNEL ASSEMBLY - Slide rear side channels fully into front side channels. 2. ASSEMBLE #4 REAR BAR - Slide the #4 rear bar onto the side channels and secure with two clevis pins (Y) &...
- Page 2 5. ASSEMBLE #3 CROSSBAR – With a flat washer (G) and lock washer (D) start a bolt (F) into each end of the #3 cross bar. Leave the bolts loose enough to slip into the brackets. With both washers on the inside of the bracket tighten both bolts. 6.
- Page 3 Option #1. (Fig. 2) Position the front mounting feet as far forward as possible. Bolt head will be approximately 3/4" from the cab of the truck. Determine which pre-drilled hole falls over the stake pocket. If none of the pre-drilled holes fall over the stake pocket, mark and drill a hole in the mounting foot that is approximately over the center of the stake pocket.
- Page 4 12. Position front mounting feet as far forward as possible. Determine which two pre-drilled holes will be used. You may choose to drill an additional hole in the foot bracket if needed. Center punch the hole locations and drill a 3/8” hole at each location. Install a foot-mounting bolt (C) two flat washers (G) one on each side of the bed rail.
- Page 5 Hardware List – A2-70 Stainless Steel (32) 12mm ID x (4) 12mm Lock (34) 10mm (18) 10mm (8) 8mm Flat (8) 8mm Lock 28mm OD Flat Washer Flat Washer Lock Washer Washer Washer Washer (4 ea.) 12mm Nut (14 ea.) 10mm (8 ea.) 8mm (2 ea.) 10mm x (2 ea.) Black Plastic Knob 10mm...
-
Page 6: Required Maintenance
Limited Lifetime Warranty: Road Pro’s stainless steel truck rack is warranted to be free from defects in material and workmanship. This limited lifetime warranty covers only the repair or replacement of a defective rack, or part of a rack, at the manufacturer’s discretion.
