Raysharp RS-H4508AN-N-W User Manual

Wireless network video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
RS-H4508AN-N-W
1

Advertisement

Table of Contents
loading

Summary of Contents for Raysharp RS-H4508AN-N-W

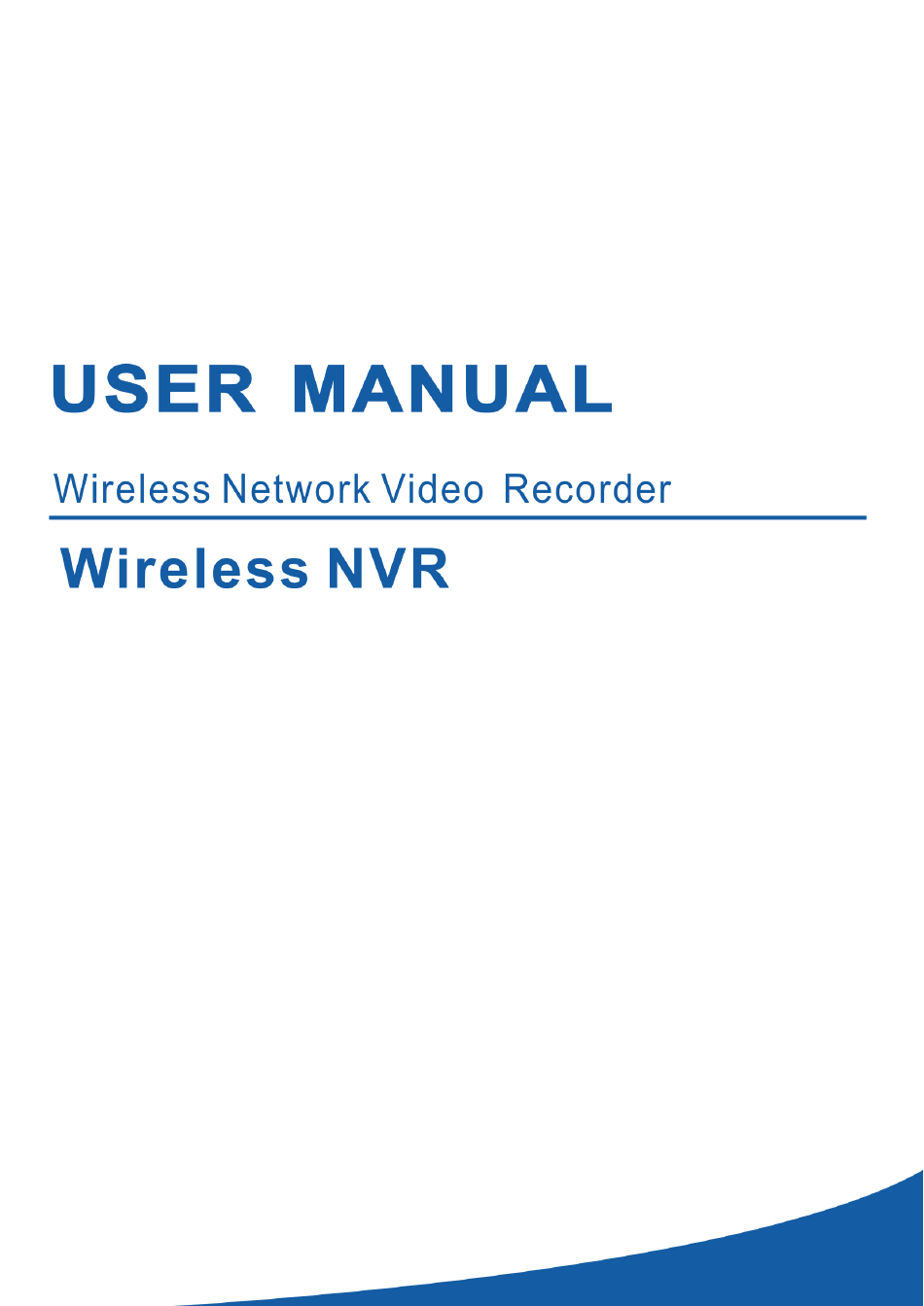

  • Page 1 USER MANUAL RS-H4508AN-N-W...

  • Page 2: Table Of Contents

    USER MANUAL Chapter 1 Safety Instruction ................4 Chapter 2 Product Overview................5 Rear Panel ......................5 1.2 Remote Controller (For Reference Only) ..............6 Chapter 3 WIRELESS NVR Common Operations ..........7 3.1 Using the Supplied Mouse ..................7 3.2 Using the Virtual Keyboard ..................
  • Page 3 USER MANUAL 5. 5.1 Disk ......................... 36 5.5.2 S.M.A.R.T ......................37 5.5.3 Cloud......................38 5.6 System ........................39 5.6.1 General ......................39 5.6.2 Output Configuration ..................42 5.6.3 Multi-user ......................44 5.6.4 Maintenance ....................47 5.6.5 IP Camera Maintain ..................50 5.6.6 System Information ..................

  • Page 4: Chapter 1 Safety Instruction

    USER MANUAL Chapter 1 Safety Instruction Please carefully read the following safety instruction so as to avoid personal injuries and prevent the equipment and other connection devices from being damaged. 1. Power sources (note: please use the power supply attached or specified by the manufacturer) Never operate the equipment by using unspecified power supply.

  • Page 5: Chapter 2 Product Overview

    Chapter 2 Product Overview 1.1 Rear Panel Physical interface Connection A terminal to connect a separate ground cable. Ground connection * Make sure to add a ground cable in order to use the equipment safely. Antenna Receive signal from wireless camera. SD Port USB port Connect with USB.

  • Page 6: Remote Controller (For Reference Only)

    USER MANUAL 1.2 Remote Controller (For Reference Only) Icon Description Numeric keys Press to display channel 1~8 9、0 Numeric keys Press to display all channels Multiple display mode Menu Press to enter or exit the Main Menu Mute Mute On/off (not support this function) Submenu Go to submenu Up arrow key;...

  • Page 7: Chapter 3 Wireless Nvr Common Operations

    USER MANUAL Chapter 3 WIRELESS NVR Common Operations 3.1 Using the Supplied Mouse Left Button of Mouse Right Button of Mouse Click once to choose an item in the menus and confirm your Click once to open the pop-up selection. menu on the Live Viewing screen and to exit from the Click once upon a channel on Live Viewing screen to open...

  • Page 8: Password

    USER MANUAL 3.3 Password For the first time when you run the WIRELESS NVR, you must be required to set your own password immediately in order to protect your privacy. Please be sure to record your username and password and save them in a secure place. Language: Choose an OSD language Input the device ID in the parentheses.

  • Page 9: Chapter 4 Wireless Nvr Starting Up

    USER MANUAL Chapter 4 WIRELESS NVR Starting up 4.1 Startup Wizard Startup Wizard will help to configure the system and get the WIRELESS NVR works quickly. 4.1.1 Start Wizard Click the Start Wizard to proceed to the next step 4.1.2 Network Configuration If you connect to a router allows to use DHCP, please check the DHCP box.
  • Page 10 USER MANUAL Subnet Mask: Subnet mask is a network parameter which defines a range of IP addresses that can be used in a network. If IP address is like a street where you live then subnet mask is like a neighborhood.

  • Page 11: Date/Time

    USER MANUAL 4.1.3 Date/Time This menu allows you to configure the Date, Time, Date Format, Time Format, Time Zone, NTP and DST. Date and Time Click on the calendar icon to set the current system date. Date: Click on the calendar icon to set the system date. Time: Click to set the system time.

  • Page 12: Disk

    USER MANUAL DST stands for Daylight Savings Time. DST: Enable if Daylight Saving Time (DST) is observed in your region Time Offset: Select the amount of time to offset for DST Time Mode: Choose to set the daylight saving time in weeks or in days Start Time/End Time: Set the start time and end time for daylight saving 4.1.4 Disk...

  • Page 13: Resolution

    USER MANUAL 4.1.5 Resolution Choose an output resolution matches to your monitor. The WIRELESS NVR supports to adjust the output resolution automatically to match the best resolution of your monitor when the system is starting up. 4.1.6 Mobile If your WIRELESS NVR come with a P2P ID, you can scan the QR code with your mobile app to view the WIRELESS NVR remotely.

  • Page 14: Summary

    USER MANUAL 4.1.7 Summary You can check the system summary information you had set in the start wizard and finish the wizard. Tick “Don't show this window next time" if you don’t want to display Start Wizard when system reboot next time. Click Finish button to save &...

  • Page 15: Camera Quick Toolbar

    USER MANUAL Status Icons This indicates that the WIRELESS NVR is currently recording. This icon appears when the camera has detected motion. This icon indicates that the HDD is in error to work This icon indicates the HDD is unformatted This icon indicates the HDD is full.

  • Page 16: Taskbar

    USER MANUAL 4.2.2 Taskbar Click to open the Start Menu Click to choose different layout for live view Click to start viewing channels in a sequence Quick playback. You can choose to play the latest recording for all channels from the beginning of the day, or you can choose the playback from the latest 5s, 10s, 30s, 1Min, 5Min.
  • Page 17 USER MANUAL 4.2.3.1 Unlock and Lock Screen The screen will be locked to protect unauthorized OSD operation while the NVR is not in menu operation 1 minute. If necessary, you can also lock the screen operation manually. To do so, go to Star Menu, and then click the Lock Screen icon to lock the system immediately.
  • Page 18 USER MANUAL Click the Shutdown button from Star Menu, and the check the further action you want to move. Click button, system will require to input the Admin password to authenticate. If you choose the system, the live viewing screen will be disappeared. You will need to Logout login the system for further operations.

  • Page 19: Chapter 5 Wireless System Setup

    USER MANUAL Chapter 5 WIRELESS System Setup You are able to configure the WIRELESS NVR for Channel, Record, Alarm, Network, Device &  Setup. System from Start Menu 5.1 Channel In this section, you are allowed to configure the Wireless camera, live view display, manage Wireless cameras,motion setup, Video Cover.

  • Page 20: Live

    USER MANUAL 5.1.2. Live To configure camera parameters. Channel: Display channel number. Setup: Click icon into the setup page. Choose a channel to configure Give a name to the camera Wireless Date format to display for the camera Wireless Time format to display for the camera Display signal strength Adjust the Hue value for the image color...

  • Page 21: Motion

    USER MANUAL 5.1.3 Motion This menu allows you to configure motion parameters. When motion has been detected by one or more cameras, your WIRELESS NVR will alert you to a potential threat at your home. It does this by sending you an email alert with an attached image from the camera to use as a reference (if this option is enabled) and/or sending push notifications via the mobile app.
  • Page 22 USER MANUAL Channel: Display channel number. Buzzer: The WIRELESS NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when the motion is detected. Record: Click icon and choose which channel(s) you want to record when the motion detection is triggered.

  • Page 23: Video Cover

    USER MANUAL 5.1.5 Video Cover This menu allows you to create privacy zone(s) if you want to partially cover some certain part of the image. Enable the Privacy Zone, You can create up to privacy zones in any size and location on the camera image.

  • Page 24: Record

    USER MANUAL 5.2 Record 5.2.1 Record This menu allows you to configure the channel recording parameters. Channel: Display channel number. Record Switch: Enable in order to allow the video to be recorded to the HDD. Stream Mode: Choose the recording resolution. The available options are Mainstream and DualStream.

  • Page 25: Record Schedule

    USER MANUAL 5.2.2 Record Schedule This menu allows you to specify when the WIRELESS NVR records video and define the recording mode for each channel. The recording schedule lets you set up a schedule like, daily and hourly by normal (continuous) recording, motion recording. To set the recording mode, click first on the mode radio button (Normal, Motion), then drag the cursor to mark the slots.

  • Page 26: Capture

    USER MANUAL 5.2.3 Capture This menu allows to configure the image capture function. Auto Capture: Enable or disable automatic capturing on the channel. When this feature is enabled, you can select the snapshot capturing interval. NOTE: When the Auto Capture is enabled, you can select the image capturing interval. Stream Mode: Select the image resolution by mainstream or substream..
  • Page 27 USER MANUAL Capture Schedule Channel: Select the channel to set its snapshot capturing schedule. Normal: When the time slot is marked green, this indicates the channel is capturing snapshots based on the Normal Interval. Motion: When the time slot is marked yellow, this indicates the channel is capturing snapshots based on Alarm Interval only when a motion is detected.

  • Page 28: Alarm

    USER MANUAL 5.3 Alarm In these section, you can configure the alarm parameters. 5.3.1 Motion Operation is same as 5.1.3 Motion 5.3.2 Exception This menu allows you to set the type of events that you want the WIRELESS NVR to inform you. Type: Select the event type from below options: Event - No Space on Disk: When an HDD is full.

  • Page 29: Network

    USER MANUAL 5.4 Network This menu allows you to configure network parameters, such as PPPoE, DHCP. The most common types are DHCP. Most probably your network type is DHCP, unless the network is manually addressed. If you need an authentication user name and password to the Internet, then choose PPPoE.
  • Page 30 USER MANUAL DNS1/DNS2: DNS1 is the primary DNS server and DNS2 is a backup DNS server. Usually should be enough just to enter the DNS1 server address. 5.4.1.1 PPPoE This is an advanced protocol that allows the WIRELESS NVR to connect to the network more directly via DSL modem.
  • Page 31 USER MANUAL 5.4.1.2 Port Configuration Port: This is the port that you will use to log in remotely to the WIRELESS NVR (e.g. using the Web Client). If the default port 80 is already taken by other applications, please change it. Client Port: This is the port that the WIRELESS NVR will use to send information through.

  • Page 32: Ddns

    USER MANUAL 5.4.2 DDNS This menu allows you to configure DDNS settings. The DDNS provides a static address to simplify remote connection to your WIRELESS NVR. To use the DDNS, you first need to open an account on the DDNS service provider’s web page. DDNS: Check to enable DDNS.

  • Page 33: Email

    USER MANUAL 5.4.3 Email This menu allows you to configure email settings. Please complete these settings if you want to receive the system notifications on your email when an alarm is triggered, HDD becomes full, HDD is in error state, or Video Loss occurs. 5.4.3.1 Email Configuration Email: Check to enable.
  • Page 34 USER MANUAL Server: Enter the SMTP server address of your email. SMTP User Name: Enter your email address. Password: Enter the password of your email. 1~3: Enter the email address where you want to receive the event notifications from the Receiver WIRELESS NVR.

  • Page 35: Ftp

    USER MANUAL 5.4.4 FTP This menu allows you to enable FTP function to view and load captured snapshots from WIRELESS NVR to your storage device over FTP. Enable: Click to enable FTP function. IP: Enter your FTP server IP address or domain name. Server Port: Enter the FTP port for file exchanges.

  • Page 36: Device

    USER MANUAL 5. 5 Device In this section, you can configure the internal HDD function. 5. 5.1 Disk This menu allows you to check & configure the internal HDD(s). You need to format the HDD only at the first startup and if you replace a new HDD. Format HDD: Select the HDD you want to format and then click Format HDD.
  • Page 37 USER MANUAL 5.5.2 S.M.A.R.T This function can be used to display technical information on the hard drive installed inside your WIRELESS NVR. You can also perform a test (there are three types available) to evaluate and detect potential drive errors. If for some reason the hard drive has Whole Evaluation not passed, continue to use the disk: developed a fault (such as one or more bad sectors), you can instruct your WIRELESS NVR to...

  • Page 38: Cloud

    USER MANUAL 5.5.3 Cloud This menu allows you to see what is happening on your camera site anytime, It can upload the captured pictures to Dropbox at normal time, or when motion detection happens. Cloud Storage: Enable to allow cloud settings Cloud Type: Only Dropbox cloud storage is supported currently Channel: Select the channels where you want to upload the snapshots to Dropbox...

  • Page 39: System

    USER MANUAL click permit. DVR cloud storage function will be activated. If you have logged in your dropbox account before Cloud storage activation, then no need to relogin. Just click Permit to complete the activation. Please finish the activation within 3 minutes. After activation is completed, you can use the Cloud storage function.
  • Page 40 USER MANUAL Language: Select a language you would like the system menus to be displayed in. Multiple languages are available. Video Format: Select the correct video standard for your region. Menu Timeouts: Click the drop-down menu to select the time your WIRELESS NVR will exit the Main Menu when idle.
  • Page 41 USER MANUAL 5.6.1.2 NTP Settings The NTP (Network Time Protocol) function allows your WIRELESS NVR to automatically sync its clock with a time server. This gives it the ability to constantly have an accurate time setting (your WIRELESS NVR will periodically sync automatically). Check to enable the NTP, and select a Server Address, click Update Now to manually sync...

  • Page 42: Output Configuration

    USER MANUAL Time Offset: Select the amount of time that Daylight Saving has increased by in your time zone. This refers to the difference in minutes, between Coordinated Universal Time (UTC) and the local time. Enable DST: You can select how Daylight Saving starts and ends: Week: Select the month, a particular day and time when Daylight Saving starts and ends.
  • Page 43 USER MANUAL 5.6.2.1 LIVE-OUT Choose LIVE-OUT from the Video Output drop-down menu. Mode: Select how many video channels you would like to display when your WIRELESS NVR is in sequence mode. SEQ Dwell Time: Enter in seconds the maximum length of time you would like to display a video channel in sequence mode before displaying the next video channel (300 seconds is the maximum).

  • Page 44: Multi-User

    USER MANUAL 5.6.3 Multi-user This menu allows you to configure the user name, password and user permission. The system supports the following account types:  — System Administrator: The administrator has full control of the system, and ADMIN can change both administrator and user passwords and enable/disable password protection.
  • Page 45 USER MANUAL 5.6.3.2 Add New Users Select one of the user accounts that is currently disabled, click the User Edit icon Select Enable from the drop-down next to User Enable. Click the field next to User Name to change the user name for the account. Select Enable from the drop-down next to...
  • Page 46 USER MANUAL 5.6.3.3 Setting User Permissions The administrator account is the only account that has full control of all system functions. You can enable or disable access to certain menus and functions of each user account. 1. Click the edit icon under Permission tab.

  • Page 47: Maintenance

    USER MANUAL 5.6.4 Maintenance In this section, you will be able to search & view the system log, load default settings, upgrade the system, export & import system parameters and manager system auto reboot. 5.6.4.1 Log The system log shows you important system events, such as motion alarms and system warnings.
  • Page 48 USER MANUAL Log Searching and Backing Up: 1. Click the field next to Start Date & Start Time to choose the starting date & time for your search from the on-screen calendar. 2. Click the field next to End Date &...
  • Page 49 USER MANUAL 5.6.4.3 Upgrade 1. Copy the firmware file (.sw file) to your USB drive, and insert the USB flash drive into the WIRELESS NVR’s USB port. 2. Click Select File button to choose the firmware file in your USB flash drive, then Click OK. 3.

  • Page 50: Ip Camera Maintain

    USER MANUAL 5.6.4.5 Auto Reboot This menu allows the system to auto reboot the WIRELESS NVR regularly. It is recommended to leave this function enabled, as it maintains the operational integrity of your WIRELESS NVR. Reboot: Check to enable. Auto Time: You can set the WIRELESS NVR to reboot by day, week or month.
  • Page 51 USER MANUAL 5.6.5.1 Upgrade IP Camera 1. Choose one of the IP cameras you want to upgrade firmware. 2. Click Select File select the update file from your USB flash drive, then click OK. 3. Click IPC Upgrade button to start upgrading. You will be required to input the Admin password to authenticate.

  • Page 52: System Information

    USER MANUAL 5.6.6 System Information This menu allows you to view the system information, channel information, record information & network status. 5.6.6.1 Information View system information such as device ID, device model name, IP address, MAC address, firmware version and more. If your WIRELESS NVR supports P2P function, you will find the P2P ID &...

  • Page 53: Chapter 6 Search, Playback & Backup

    USER MANUAL Chapter 6 Search, Playback & Backup The Search function gives you the ability to search for and play previously recorded videos as well as snapshots that are stored on your WIRELESS NVR’s hard drive. You have the choice of playing video that matches your recording schedule, manual recordings or motion events only.
  • Page 54 USER MANUAL Slow Play, 1/2, 1/4 and 1/8, 1/16 speed Play Pause Play frame by frame. Click once to play a frame of the video Stop Fast Forward, x2, x4, x8 and x16 Digital Zoom: Click to zoom in then click-and-drag on a camera image during playback to zoom in on the selected area.

  • Page 55: Search & Play Video In General

    USER MANUAL 6.1.1 Search & Play Video in General This menu gives an option to search & play recording for a selected date. 1. Select a date to search for video recording from the calendar. 2. Choose a search type. 3.
  • Page 56 USER MANUAL 6. Press and hold the left button of your mouse, and drag the drag the cursor to the timeline where you want to end the video clip. 7. The icon has been changed to icon, click to save the video clip. 8.

  • Page 57: Event Search, Playback & Backup

    USER MANUAL 6.1.2 Event Search, Playback & Backup Event search lets you view a list of video recordings with the channel, start and end time, and recording type conveniently summarized. You can also quickly back up events to a USB flash drive.
  • Page 58 USER MANUAL Detailed view. You can view the details of the events. In the detailed view mode, you can lock the video events to keep events from being overwritten in the hard drive. Click the icon to lock or click to unlock the events.

  • Page 59: Sub-Periods Playback

    USER MANUAL 6.1.2.1 Event Playback Control 1. Event List, you can select the events here. 2. Click icon to save your selected event videos to USB flash drive. Click icon to play video. 3. Control the playback with buttons on Video Playback Controls.
  • Page 60 USER MANUAL To search & play video in sub-periods: 1. Choose the date & time you want to search. 2. Choose the split-screens you want the videos to be played in. 3. Check the recording types you want to search, or check Search Type to choose all.

  • Page 61: Picture Search & View

    USER MANUAL 6.1.4 Picture Search & View This function can be used to search, play and copy snapshots to a USB flash drive. To search, play & back up pictures: 1. Choose the date & time you want to search. 2.
  • Page 62 USER MANUAL 8. When you click the left button of your mouse upon one of the pictures, system will show the picture information on the left bottom corner of the screen. 9. Check the box next the number of the event to select files, or check the box next Select select all pictures in the page.

  • Page 63: Chapter 7 Remote Access Via Web Client

    USER MANUAL Chapter 7 Remote Access via Web Client Use the Web Client to remotely access your WIRELESS NVR at any time via a PC. Before you access the Web Client, you need to ensure that the network settings of the WIRELESS NVR are configured properly.

  • Page 64: Web Plugin Download And Installation

    USER MANUAL Web Plugin Download and Installation To access the Web Client, do the following: IE/Chrome/Firefox: 1) Launch the explorer on your PC and enter the WIRELESS NVR static IP address or DDNS domain name (Host Name) you have set on WIRELESS NVR in the URL box. 2) For the first time you run the web client, system will require to install the web client plugin.
  • Page 65 USER MANUAL 3) After installing the plug-in, close & launch again your browser and repeat step 1 to open the login page. Input your user name and password to login the web client. Note : If you use Google Chrome, please use Version V41 or below. If you use V42 to V44, you need to enable NPAPI plugins.
  • Page 66 USER MANUAL For Mac SAFARI: 1) Launch the Safari on your Mac, and enter the WIRELESS NVR static IP address or DDNS domain name (Host Name) you have set on WIRELESS NVR in the URL box. 2) Download the plug-in "SurveillanceClient.dmg", locate the downloaded file and double click it. 3) Click on "Continue"...

  • Page 67: Web Client Manager

    USER MANUAL 7.2 Web Client Manager The web client supports to full control the WIRELESS NVR with administrator account. Please make sure to protect your user name & password for preventing illegal login. 7.2.1 Live Interface This is the first screen that opens after you have logged in to the Web Client. Here you can open or close live preview, record video to local computer manually, take snapshots of the screens, color adjustment, etc.
  • Page 68 USER MANUAL : Stretch. : Original proportions. : Click to maximize the current window to full screen. Right click to popup menu option and select Exit Full Screen. 2. Video Control Hue: Adjust the chromaticity of video Bright: Adjust the brightness of video Contrast: Adjust the contrast of video Saturation: Adjust the saturation of video...

  • Page 69: Playback

    USER MANUAL 7.3.2 Playback You can search & play recorded files stored on the HDD inside the WIRELESS NVR, and save the result to the local directory on your PC. Click to enter into Playback interface to remotely view the records in WIRELESS NVR HDD.
  • Page 70 USER MANUAL 1. Record Search Record playback procedure Firstly, select the date you want to check and tick 1 to 4 channels. Any record files in current channel at current date will be displayed in the status bar of the interface. Secondly, select record type (Normal record, Motion record) and channels, and then click “...
  • Page 71 USER MANUAL 2. Playback Control Playback control bar. Detailed brief description is shown as below list Description Description Play Stop playing all the playback Pause Open/Close is Speaker Stop Slow/Fast playing Slow playing 1/2,1/4, 1/8, Fast By frame playing 1/2/4/8 Record Clip Digital ZOOM Snap...
  • Page 72 USER MANUAL Record file download Click download icon “ ” on the control bar to display all the matched record file according to the search conditions of channels. Tick-select the record file you want to download and click [Start download] .System will download the record file in sequence and save to local PC.

  • Page 73: Local Setting

    USER MANUAL 7.3.3 Local Setting Record Path: Set the path to save manual recordings on your PC’s local drive. Download Path: Set the path on your PC’s local drive where you want to download recordings from the WIRELESS NVR. Snapshot Path: Set the path to save manual snapshots on your PC’s local drive. Save: Click Save to save the modifications.

  • Page 74: Chapter 8 Appendix

    USER MANUAL Chapter 8 Appendix 8.1 Troubleshooting Q: What can I do if the system does not detect the HDD? A: Check if the power supply system is properly connected and data cord and power cables are securely connected, and if something wrong with the HDD interface. Or you may check if your HDD is supported by referring to the specifications or descriptions.

  • Page 75: Usage Maintenance

    USER MANUAL 12. Q: Why doesn’t dynamic detection work? A: Please check if the motion detection time and motion detection regional setting are correct and if the sensitivity is set too low. Q: Why doesn’t alarm work? A: Please check if the alarm setting, alarm connection and alarm input signals are correct. Q: Why does buzzer keep alarming? A: Please check the alarm setting, check if motion detection function is enabled and object motion is detected all the time is set as Always Off.

  • Page 76: Accessories (For Reference Only)

    USER MANUAL 8.3 Accessories (For reference only) Remote Controller Power Adapter Warranty Card USB mouse...
  • Page 77 USER MANUAL FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
