MPPT(Maximum Power Point Tracking) Solar Charge Controller
controller could increase 10%-30%
electrical power using efficiency from solar panel.
Function: This MPPT controller is not only have above mentioned special function, at the
same time including completely Protecting and Controlling functions:
Overcharge Protection
Overdischarge Protection
Battery Reverse Current Protection
Overloading Protection
Short Circuit Protection
Battery
Reverse Polarity Connection Protection

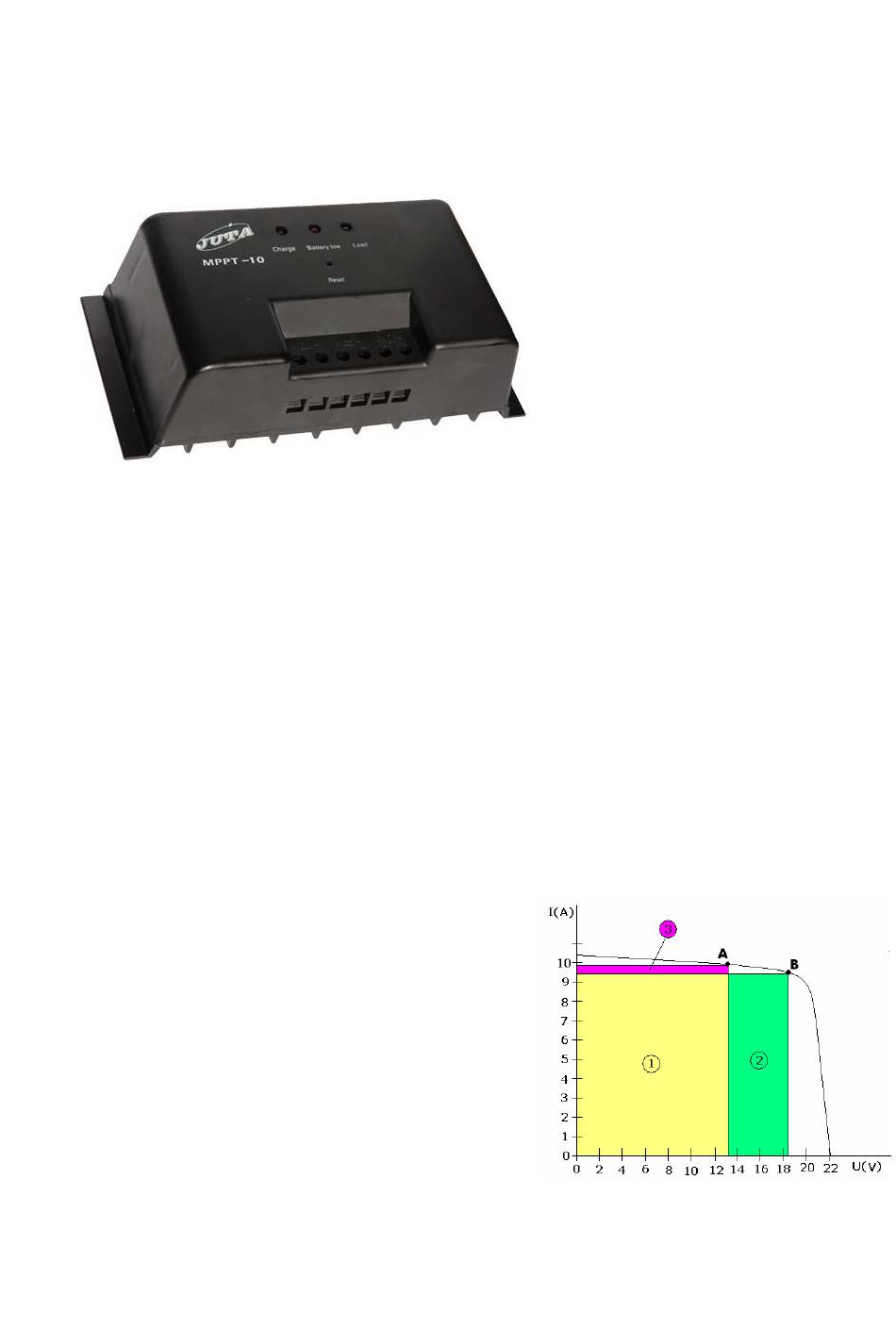

Schematic Diagram: Picture 2 shows typical 12V battery solar charge system V-A curve.
Normal Solar Charge Controller: Solar Panel works at point A state, the solar panel
working voltage is a little higher than battery voltage.
Charge Voltage: U
Charge Current:: I
Charge Power: P
Area in drawing: ①＋③
MPPT Solar Charge Controller: Solar Panel works at
point B state, the solar panel working voltage much
higher than battery voltage.
Charge Voltage: U
Charge Current:: I
Charge Power: P
Area in drawing: ①＋②
=13.2V
A
=9.8A
A
=13.2*9.8=129.36w
A
=18.4V,
B
=9.3A
B
=18.4*9.3=171.12w
B
User's manual
JUTA MPPT-10
Model
Feature:
The
most
feature
of
this
intelligent tracking input voltage
from solar panel, which could let
solar panel always working at
Maximum Power Point of V-A
curve. Compared with normal solar
charge
controller,
important
controller
is
this
MPPT
Advertisement
Table of Contents
Related Manuals for Juta MPPT-10
Summary of Contents for Juta MPPT-10
- Page 1 MPPT(Maximum Power Point Tracking) Solar Charge Controller User’s manual JUTA MPPT-10 Model Feature: most important feature this controller intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar...
- Page 2 Conductor: The cable between solar panel with MPPT solar charge controller should be better calculated by 1Ampere per 1mm². Solar Charge Controller: JUTA brand MPPT-10 Model solar charge controller Rated input Ampere is 10A. We have 12V, 24V and 48V three kinds of MPPT solar charge controllers.
- Page 3 could not normal working. This is normal phenomenon. When the battery voltage recover to 12.6V or (25.2v), the Load will be automatically working, at this time the indicator is off. 3. Charge Indicator, green, bright indicate the battery need to charge, flickering means float charging, off means charge has stop.
