ChemDry 3869506CD Operator And Parts Manual

Horizon tile cleaning machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3869506CD
Horizon Tile Cleaning Machine
Model No.:
Operator and Parts Manual
3869506CD – 15 gal Tile Cleaner
KLEENRITE
1122 MAPLE STREET
MADERA CA 93637 U.S.A.
FAX: 1-559-673-5725
MNL3869506CD
CUSTOMER SERVICE: 1-800-241-4865
Rev. 01 (07-07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3869506CD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ChemDry 3869506CD

Summary of Contents for ChemDry 3869506CD

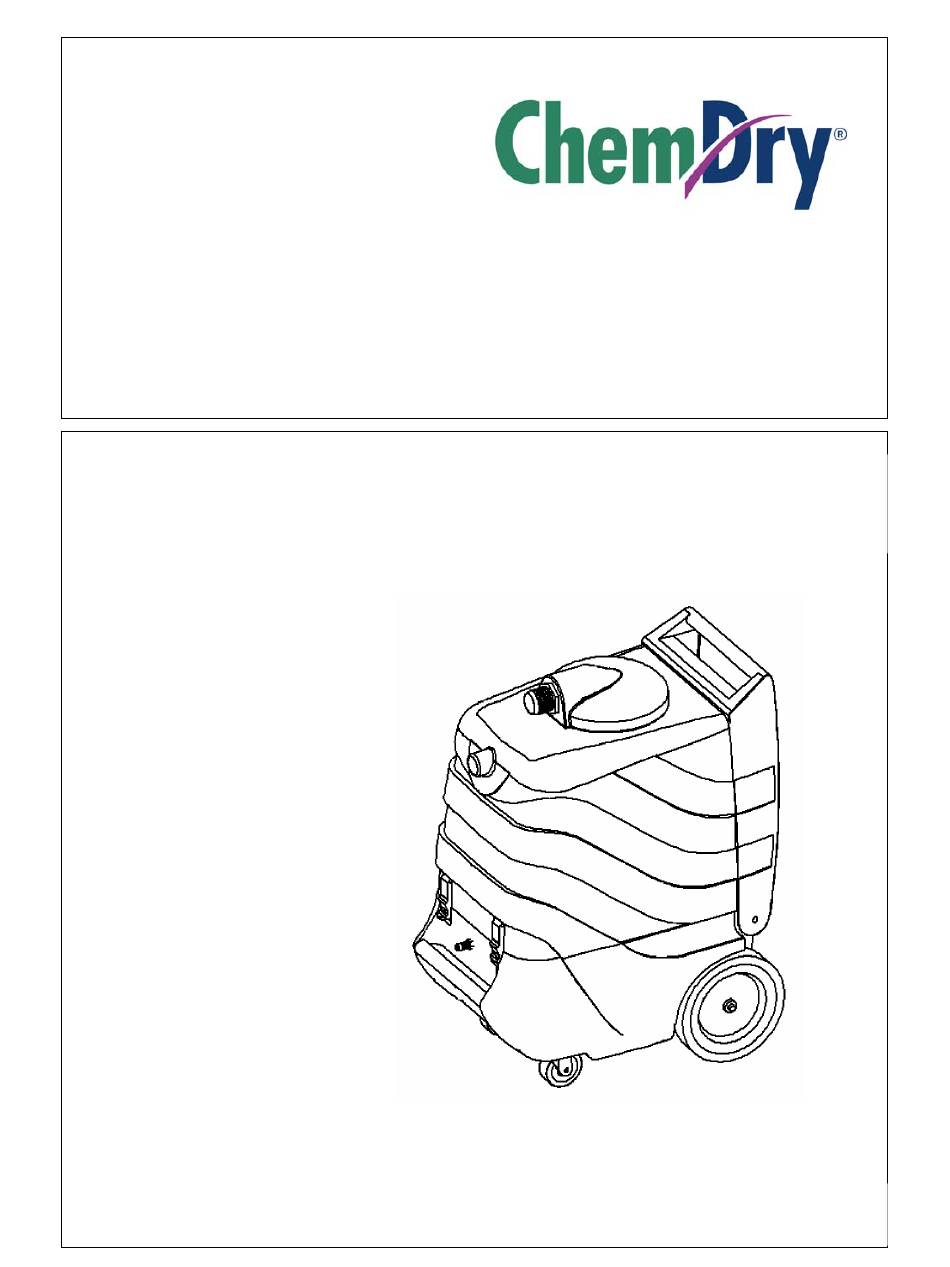

  • Page 1 3869506CD Horizon Tile Cleaning Machine Model No.: Operator and Parts Manual 3869506CD – 15 gal Tile Cleaner KLEENRITE 1122 MAPLE STREET MADERA CA 93637 U.S.A. FAX: 1-559-673-5725 MNL3869506CD CUSTOMER SERVICE: 1-800-241-4865 Rev. 01 (07-07)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS ......... MACHINE COMPONENTS ....... MACHINE SETUP ..........MACHINE OPERATION ........FREEZE PROTACTION........MACHINE MAINTENANCE ......STORING MACHINE......... RECOMMENDED STOCK ITEMS ....TROUBLE SHOOTING ........SPECIFICATIONS..........ELECTRICAL DIAGRAM........PARTS LIST............WARRANTY POLICY ........3869506CD (05-07)

  • Page 3: Safety Precautions

    Do not allow water or foam to enter vacuum. Float ball is not activated by foam. Damage not covered by warranty will result. – Keep cord away from heated surfaces. GROUNDING – Report machine damage or faulty operation immediately. 3869506CD (05—07)

  • Page 4: Machine Components

    Attach a second garden hose to the input connector (Figure 1). Fig. 2 WARNING: Do not vacuum up flammable materials as they could cause an explosion or fire. Fig. 1 3869506CD (05-07)

  • Page 5: Machine Operation

    (Figure 6). and off. 3. Turn on water faucet supplying water to the machine. CLEANING TILE 1. Activate the pressure pump and both vacuum switches (Figure 5). Fig. 6 Fig. 5 Fig. 4 3869506CD (05—07)

  • Page 6: Freeze Protaction

    (Figure 12). Remove base filter and clean. 2. Remove float shut off screen from recovery tank and clean (Figure 8, 9). Fig. 8 Fig. 9 3. Wipe off power cord and check for damage. Replace if necessary. Coil cord neatly after use. Fig. 12 3869506CD (05-07)

  • Page 7: Storing Machine

    Reassumble filter assembly. STORING MACHINE 1. Before storing machine, be certain to drain and rinse tank 2. Store machine in a dry area in an upright position. 3. Open recovery tank lid to promote air circulation. 3869506CD (05—07)

  • Page 8: Trouble Shooting

    Recovery tank drain valve open. Close valve. Defective recovery tank lid gasket. Replace gasket. Clogged float shut-off screen. Remove recovery tank lid and clean screen. Loose vacuum hose connections. Secure cuffs to hose. Defective vacuum hose. Replace hose. 3869506CD (05-07)

  • Page 9: Specifications

    POWER CORDS 2 @ 7.6m (25 ft) 3/12 DECIBEL RATING 3 METERS (10 FT) FROM <68 db(A) MACHINE ON CARPET MACHINE DIMENSIONS 939 mm 978 mm (37 in) (38.5 in) 787 mm 450 mm (31 in) (17.7 in) 3869506CD (05—07)

  • Page 10: Electrical Diagram

    ELECTRICAL DIAGRAM 3869506CD 120 V WIRING DIAGRAM 3869506CD (05-07)

  • Page 11: Parts List

    PARTS LIST 3869506CD TANK GROUP 3869506CD (05—07)
  • Page 12 CUFF, 1 1/2 SLIP 1 1/2 HOSE SK-09.2B CORD, 25' 12/3 SJT W/TREM APPL J-41HZN/EXTRACT-CD TANK,EDGE HZN ROTO CHEM-DRY SK-84HZN1/HNDL HARNESS, HZN HNDL C2VV CI C1PD • SL-23.25 J-49BLUGRNT LID,MEGA/E3 ROTO BLUGRNT PUMP, SUBMSBLE 115V W/FLT TRMNTED • RECOMMENDED STOCK ITEMS 3869506CD (05-07)
  • Page 13 M-0563.8 B-10 (4X) PUMP REF SJ-40.5BLK101209210 D-17 C-04.1 (2X) SK-84HZN1/BASE M-0790.5 E-04.11 C-95 M-0791.3 (2X) F-11 M-72 B-17.6 (4X) C-11.9 (2X) M-0790.4 B-18.02 (4X) B-42.5 (2X) B-36.01 (8X) B-38.5 (8X) C-60(2X) C-02.45 (2X) B-32 (8X) C-23.9(2X) 3869506 05/25/07 3869506CD (05—07)
  • Page 14 SJ-40.5BLK101209210 BASE,DRLD PAR W/QT HRZN BLK D-43 NIPPLE, 1/4 HEX BRASS • SK-84HZN1/BASE HARNESS, HZN BASE C2VV CI C1PD E-04.10 HOSE,PLS 34" 3/8MSVX1/4FP • SL-004 BLOWER,2STG 120V 5.7COMP #116392-00 E-04.11 HOSE,PLS 34" 1/4MSVX3/8MSV • SL-28.1200 PUMP, 1200PSI CMP 110V RECOMMENDED STOCK ITEMS • 3869506CD (05-07)

  • Page 15: Warranty Policy

    Kleenrite for warranty consideration to be in effect. All returns will be sent to Kleenrite at 1122 Maple Street, Madera Ca. 93637. Fax communications can be sent to 1-559-673-5725 and emails sent to kleenritemfg.com. 3869506CD (05—07)
  • Page 16 SPECIALS: Check our web site at: kleenritemfg.com for parts and equipment price specials. KEEP THIS COPY FOR YOUR RECORDS Date Received WARRANTY Registered Owner(s) REGISTRATION Address Phone Number Fax Number Email Address Machine Serial Number Purchased From (Distributor) 3869506CD (05-07)
  • Page 17 PLEASE RETURN REGISTRATION WITHIN 10 DAYS OF RECEIVING YOUR HORIZON CLEANING MACHINE. SPECIALS: Check our web site at: kleenritemfg.com for parts and equipment price specials. PLEASE RETURN THIS ENTIRE SHEET Date Received WARRANTY Registered Owner(s) REGISTRATION Address Phone Number Fax Number Email Address Machine Serial Number Purchased From (Distributor) 3869506CD (05—07)
