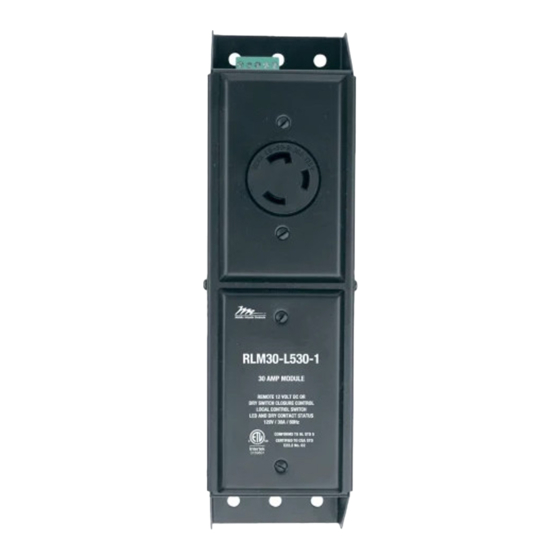

- Page 1 Instruction Sheet RLM30-L5X0-1 Stand Alone Power Module THANK YOU Thank you for purchasing the RLM30-L5X0-1 Stand Alone Power Module. Please read these instructions thoroughly before installing this product. I-00093 Rev D...
- Page 2 WARNING Modules do not contain any user serviceable parts inside. For use indoors in dry locations only. Refer to instructions, provided with the equipment, for proper installation and servicing. Equipment contains hazardous voltages - to prevent the risk of electrocution, installation and service must be performed by qualified personnel only.
- Page 3 30 AMP MPR SERIES STAND ALONE POWER MODULES CONTROL TERMINAL BLOCK CONTROL MODE SWITCH 9 CONTROL ON STATUS TOP VIEW LED (GREEN) CONTROL ON AUTO AUTO STATUS LED (YELLOW) DRY CONTACT STATUS CLOSURE 5 DRY CONTACT STATUS CLOSURE 4 CONTROL COMMON 2 ON - OFF - AUTO + 12 VDC CONTROL 3 DRY SWITCH CLOSURE CONTROL 6...
- Page 4 WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the RLM30-L5X0-1 Stand Alone Module to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.
