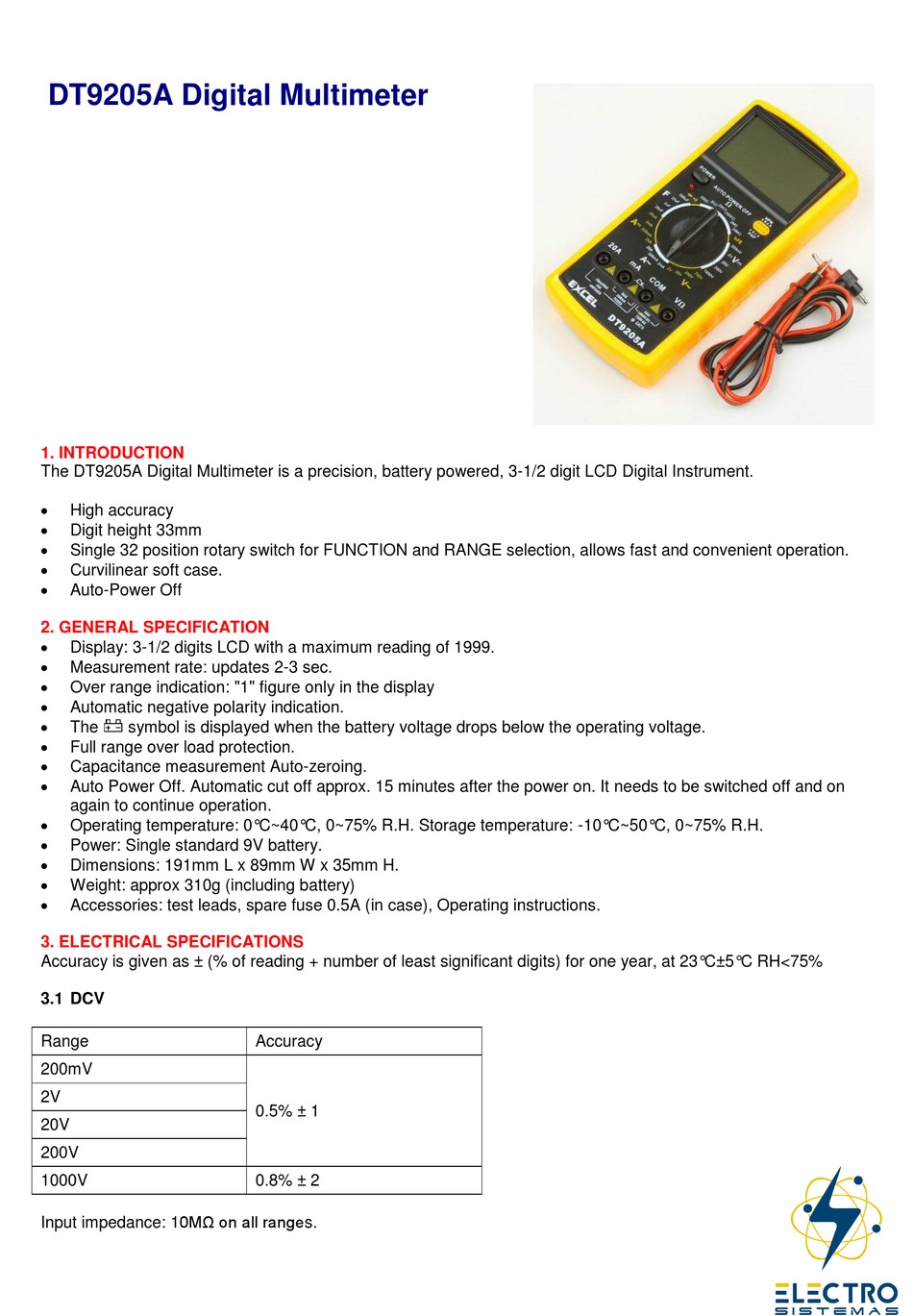

DT9205A Digital Multimeter
1. INTRODUCTION
The DT9205A Digital Multimeter is a precision, battery powered, 3-1/2 digit LCD Digital Instrument.

High accuracy

Digit height 33mm

Single 32 position rotary switch for FUNCTION and RANGE selection, allows fast and convenient operation.

Curvilinear soft case.

Auto-Power Off

2. GENERAL SPECIFICATION


Display: 3-1/2 digits LCD with a maximum reading of 1999.

Measurement rate: updates 2-3 sec.

Over range indication: "1" figure only in the display

Automatic negative polarity indication.

The symbol is displayed when the battery voltage drops below the operating voltage.

Full range over load protection.

Capacitance measurement Auto-zeroing.

Auto Power Off. Automatic cut off approx. 15 minutes after the power on. It needs to be switched off and on
again to continue operation.

Operating temperature: 0°C~40°C, 0~75% R.H. Storage temperature: -10°C~50°C, 0~75% R.H.

Power: Single standard 9V battery.

Dimensions: 191mm L x 89mm W x 35mm H.

Weight: approx 310g (including battery)

Accessories: test leads, spare fuse 0.5A (in case), Operating instructions.

3. ELECTRICAL SPECIFICATIONS

Accuracy is given as ± (% of reading + number of least significant digits) for one year, at 23°C±5°C RH<75%
3.1 DCV
Range
200mV
2V
20V
200V
1000V
Input impedance: 10MΩ on all ranges.
Accuracy
0.5% ± 1
0.8% ± 2
