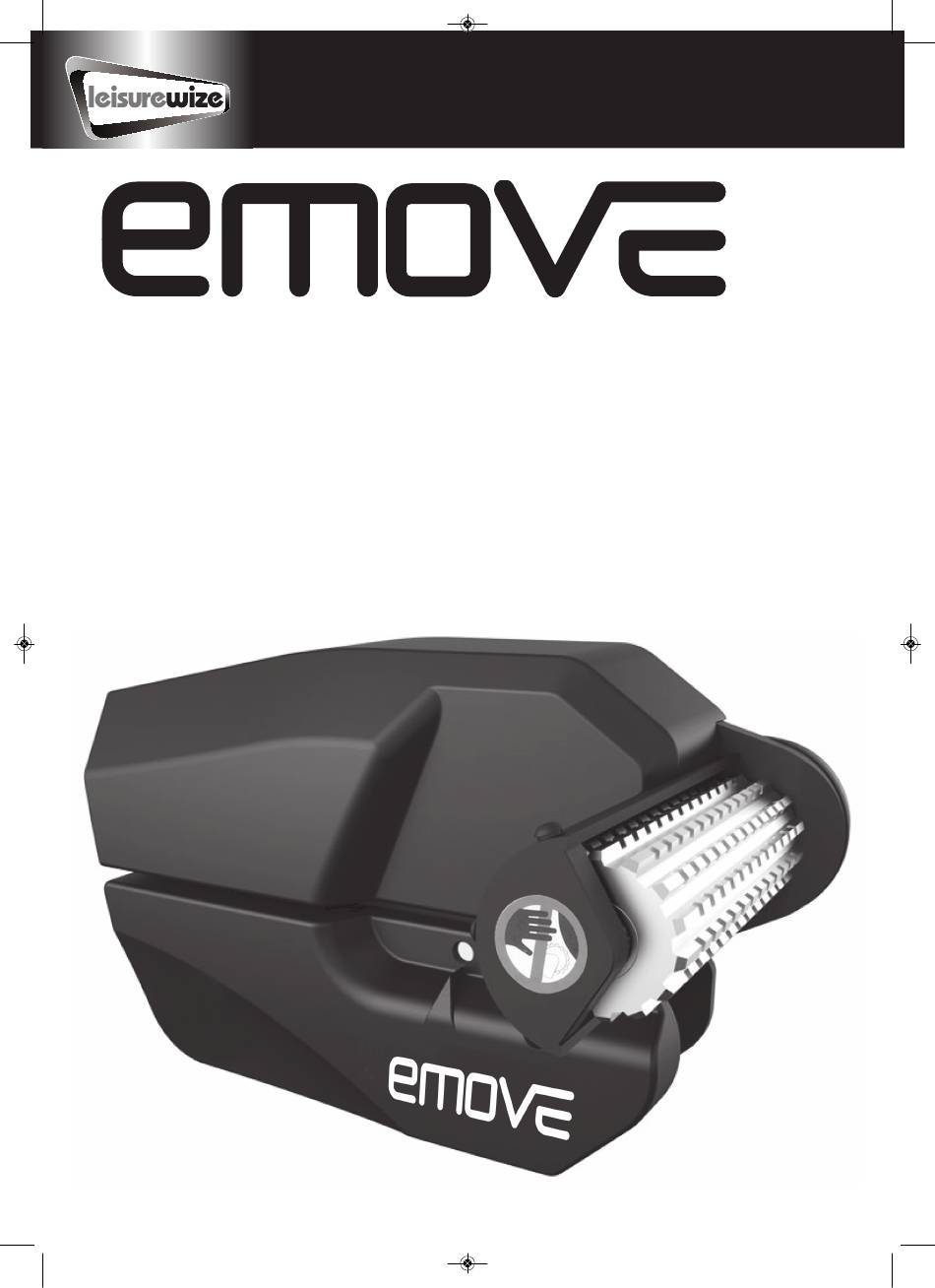

EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 2
®
EM303A
Caravan Manoeuvring
System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the emove EM303A and is the answer not in the manual?

Questions and answers

Summary of Contents for Camec emove EM303A

  • Page 1 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 2 ® EM303A Caravan Manoeuvring System...

  • Page 2: Table Of Contents

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 3 TABLE OF CONTENTS Package contents (Parts list) Introduction Intended use Specifications Installation - safety guidelines Installation - mechanical components Installation - electrical/electronic components Installation - twin axle Operation - safety guidelines Operation - motor units Operation - remote control handset Operation - electronic control unit...
  • Page 3 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 4...

  • Page 4: Introduction

    Keep this manual inside your caravan for future reference. INTENDED USE The emove EM303A caravan manoeuvring system is suitable for single axle and double axle caravans. Suitable only for L-profiled and U-profiled chassis with a chassis thickness between min. 2.5mm and max. 3.5mm.

  • Page 5: Installation - Mechanical Components

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 6 Check the minimal installation dimensions of the manoeuvring system based on figure 14. Only use adapters and accessories that are supplied or recommended by the manufacturer. Check that the caravan is disconnected from the battery supply and the mains electrical supply. Check that the tyres are not over worn and do have the same size and design (fitting to new or nearly new tyres is the best option).

  • Page 6: Installation - Electrical/Electronic Components

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 7 Adequate ground clearance: Please notice that the min. distance between the lowest line of motors and ground is 110mm, no matter what kind of chassis or install situation. Make sure that the main cross bar (3) is positioned in the middle of the caravan (the centre of the bar is marked).
  • Page 7 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 8 Table. A Table. B FRONT OF AXLE FITTING REAR OF AXLE FITTING (4,6mm cables) (4,6mm cables) Motor unit A Positive (+) cable to terminal 4 Motor A Positive (+) cable to terminal 1 Motor unit A Negative (-) cable to terminal 3 Motor A Negative (-) cable to terminal 2 Motor unit B Positive (+) cable to terminal 2...

  • Page 8: Installation - Twin Axle

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 9 Caution! Make sure that you do not reverse the Positive (+) and Negative (-) connections. Incorrect connection (reverse polarity) will result in damage to the control unit. Connect the battery cables (14 & 15) to the control unit (4). Seal the 25mm hole in vehicle under body using plastic body sealant.

  • Page 9: Operation - Safety Guidelines

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 10 OPERATION - SAFETY GUIDELINES Practice operating the manoeuvring system in an open area before using for the first time. This is to fully familiarise yourself with the handset / manoeuvring system operation. Before use, always check the caravan manoeuvring system for any damage.

  • Page 10: Operation - Motor Units

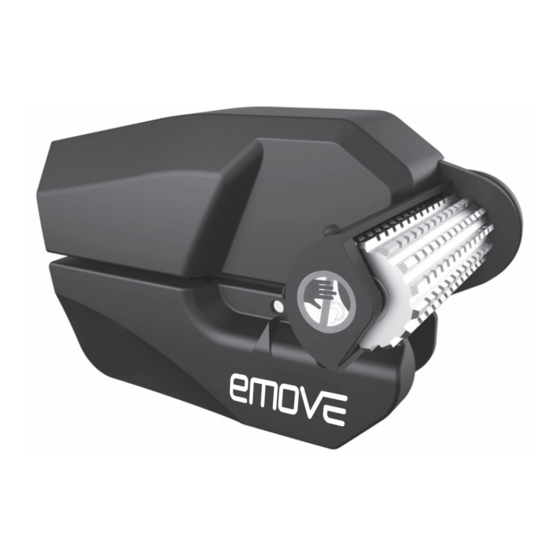

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 11 OPERATION - MOTOR UNITS The manoeuvring system has two motor units (1 & 2). In general they are mounted in front of the axle of the caravan. Both units are identical but cannot be switched. Fig.

  • Page 11: Operation - Electronic Control Unit

    Error messages via the remote control handset: Error messages of the emove EM303A will be communicated via the remote control handset by the green LED (Fig. 5H), the error message (Fig. 5L, 5M & 5N) and a buzzer signal: Green LED (Fig.

  • Page 12: Operation - Getting Started

    After successful synchronisation, the green LED on the control unit (Fig. 3B) and on the remote control handset (Fig. 5H) will illuminate continuously. The single-twin axle function switch (Fig. 3S/T): The emove EM303A caravan manoeuvring system is suitable for both single axle and twin axle caravans. You just need to pull the single-twin axle function switch (Fig 3S/T) on the control unit, so that the manoeuvring system can be used for a single-axle caravan or a twin- axle caravan (for 2 motor use but also for 4 motor use).

  • Page 13: Operation - Hitching And Unhitching

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 14 In addition, the left forward (Fig. 5D) and right reverse (Fig. 5G) buttons or right forward (Fig. 5E) and left reverse (Fig. 5F) buttons may be pressed at the same time to turn the caravan around on its own axis without moving forward or backward (this function just can work under the -axle When you drive straight forwards or reverse (press button 5B or 5C), it is also possible to adjust the direction...

  • Page 14: Trouble-Shooting

    EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 15 Regularly clean the drive units with a water hose to dissolve mud etc. Please check regularly the distance between the rollers and the tyres. In the neutral (fully disengaged) position this must be about 20mm. Once a year have your caravan manoeuvring system maintained and visually inspected.
  • Page 15 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 16 Check if there is any distortion signal (other transmitter, high power cables, Wifi etc.) that disturbs a good communication between remote control handset and control unit. If there is no good communication between the control unit and remote control handset, the manoeuvring system will not function and the green LED on remote control handset is blinking.
  • Page 16 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 17...
  • Page 17 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 18...
  • Page 18 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 19...
  • Page 19 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 20...
  • Page 20 EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 1 Five Year Warranty Your emove caravan mover is covered by a five years’ parts and labour warranty (when registered). You are covered against reasonable use of your caravan mover for the period of five years. It does not cover against misuse or accidental damage of the e caravan mover.
