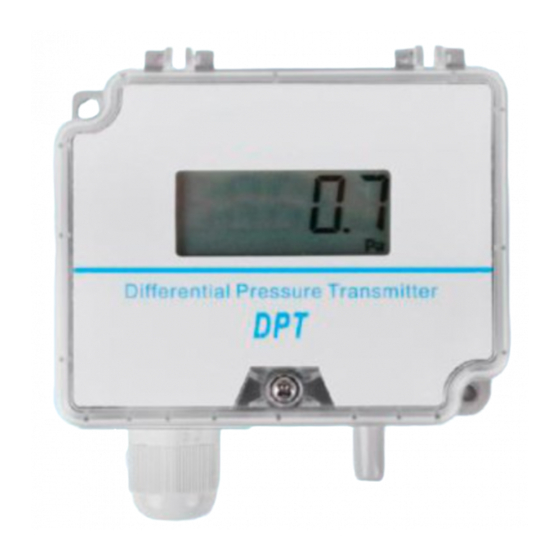

RSA-TDPA Differential Pressure Transmitter
Applications & Features
Apply high accuracy MEMS sensor and digital technologies,
can measure positive, negative or differential pressure .
RSA-TDPA is suitable for wall mount, RSA-TDPA -F is
suitable for flush mount
It can measure system pressure of fan, blower, filter,
furnace draft and orifice plate and can apply to various
clean room, biological safety cabinet, clean bench, ducts
collection, medical or pharmaceutical machine, etc.
Multiple ranges, engineering units and outputs
Good performance with accuracy of 1.0% and range as low
as 25Pa
Function keys: zero calibrate, unit select, response time set,
etc
Field upgradable LCD display module and multiple ranges
selection

Specifications

Medium: non-combustible, non-corrosive air, insensitive to
moisture, dust, condensation and oil
Working Temp.: -20~70°C
Medium Temp.:0~60°C
Temp. Compensation: 0~50°C
Working Pressure: overload 10xFS, burst 15xFS
Accuracy: ±1.0%FS(±2.0%FS@25Pa range)
Long term stability: ±0.5%FS/Year
Thermal effect: <0.05%FS/°C (zero), <0.08%FS/°C (FS)
Response Time: 0.5~30s, can be set by keys
Process Connection: 5mm ID tubing
Display: 5 digits LCD, displayarea 44x18mm, with unit
indication, field upgradable
Output: 0~10V, 4~20m A (2 wires), RS485 selectable
Output Load: ≤500Ω (current), ≥2kΩ (voltage)
Power: Voltage: 16~28VAC/ 16~35VDC
Current: 18.5~35VDC (R
Units: 5 units, selected by keys

Measuring Ranges

1. Code 1 and 3 have multiple rangeswhich could be jumper sel ected.
2. Set the 5 engineering unitsby button keysand the related LCD indicator will be on.
3. For zero center models, add "Z" at the end of the model. For example,
the range is-30-0-30/-62.5-0-62.5pa. Only ranges 1~6 have thisselection.
Telefone Sac: 55 11 2031 6658 – WHATSAPP 11 979936574 Email:
=500Ω); 8.5~35VDC (R
=0Ω)
L
L
Code
Pa
0
0-25
1
0-60/125
3
0-250/500/1000
6
0-2500
7
0-5000
8
0-10000
Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São
contato@rsa-sensors.com.br
Zero set: easy to reset by external key
Materials: ABS (housing) & PC (cover)
Protection: IP54
Weight:165g
Approval: CE
Accessories: LCD displaymodule (model RSA-TDPA -LCD),
including 1 LCD module and 1 panel film , and flush mount
panel (model RSA-TDPA -A), can be ordered separately

Models

RSA-TDPA
Model
RSA-TDPA -F
Range
Output
Display
RSA-TDPA-F Flush Mount Differential Pressure Transmitter
It's the combination of RSA-TDPA (with LCD) and flush mount panel
(model RSA-TDPA -A). The specifications are the same as RSA-
TDPA. And the model is RSA-TDPA -F xx1(with LCD). It's good for
flush mount in clean room or equipment with no dust and easy to
clean 316 brushed stainless steel panel, with the size
W104×H88×T1.5 and flush mount opening size W93
×H79×D42(mm).
Unit & Range & Display Resolution
Pa
kPa
in w.c.
25.00
0.025
0.100
60.00
0.060
0.250
125.0
0.125
0.500
250.0
0.250
1.000
500.0
0.500
2.000
1000
1.000
4.000
2500
2.500
10.00
5000
5.000
20.00
10000
10.00
40.00
RSA-TDPA
Site:
http://www.rsa-sensors.com.br
DP transmitter
Flush Mount DP Transmitter
X
Range selection
1
0-10V
2
4-20mA(2 wires)
8
RS485/Modbus
0
N/A
1
LCD
mm w.c.
mbar
2.500
0.250
6.000
0.600
12.00
1.250
25.00
2.500
50.00
5.000
100.0
10.00
250.0
25.00
500.0
50.00
1000
100.0
1**Z, means
