HealthyLine HEAT+PEMF Instruction Manual

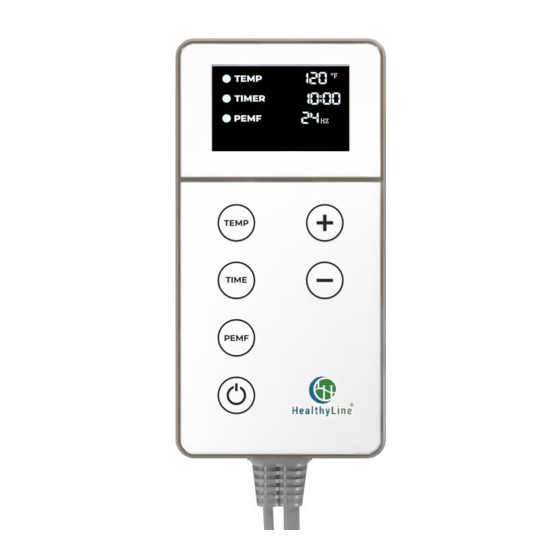

HEAT + PEMF (1 - 30 Hz)
CONTROLLER
INSTRUCTION MANUAL

POWER

Press the Power button to turn ON the controller.
TEMP, TIMER, PEMF, PHOTON indicators will light up
on the screen.

TEMPERATURE

SET and ADJUST
Press TEMP button once to turn Heat ON. Press TEMP again to initiate
temperature adjustment mode (temperature indicator will start flashing).
Set the desired temperature and press TEMP again to save the setting.
TEMP TEMP
Press and
°F or °C
Hold for 6 sec
UNITS SET

TIMER

SET and ADJUST
Press TIME button to initiate time adjustment mode (time indicator
will start flashing). Set the desired time and press TIME button again to
save the setting.
TIME

PEMF

SET and ADJUST
Press PEMF button once to turn PEMF ON. Press PEMF again to initiate
PEMF frequency adjustment mode (PEMF indicator will start flashing).
Set the desired frequency (1-30 Hz) and press PEMF button again to save
the setting.
PEMF PEMF
Press and Hold for 6 sec
PEMF

FACTORY RESET

Press and
Hold for 10 sec
WITH THE CONTROLLER ON
TEMP
To switch between
TIME
Fahrenheit and Celsius
TIME
PEMF
To turn PEMF OFF
The controller will shut
downand turn back ON
automatically
Information
i
Please allow up to 40 minutes for the surface to reach
the maximum temperature.
Once flashing temperature has stopped, the indicator
displays the actual temperature measured at the core
of the Mat.
Press and hold or to reach desired numbers faster.
Default PEMF frequency is set to 7.83 Hz and displayed
as 8 Hz.
