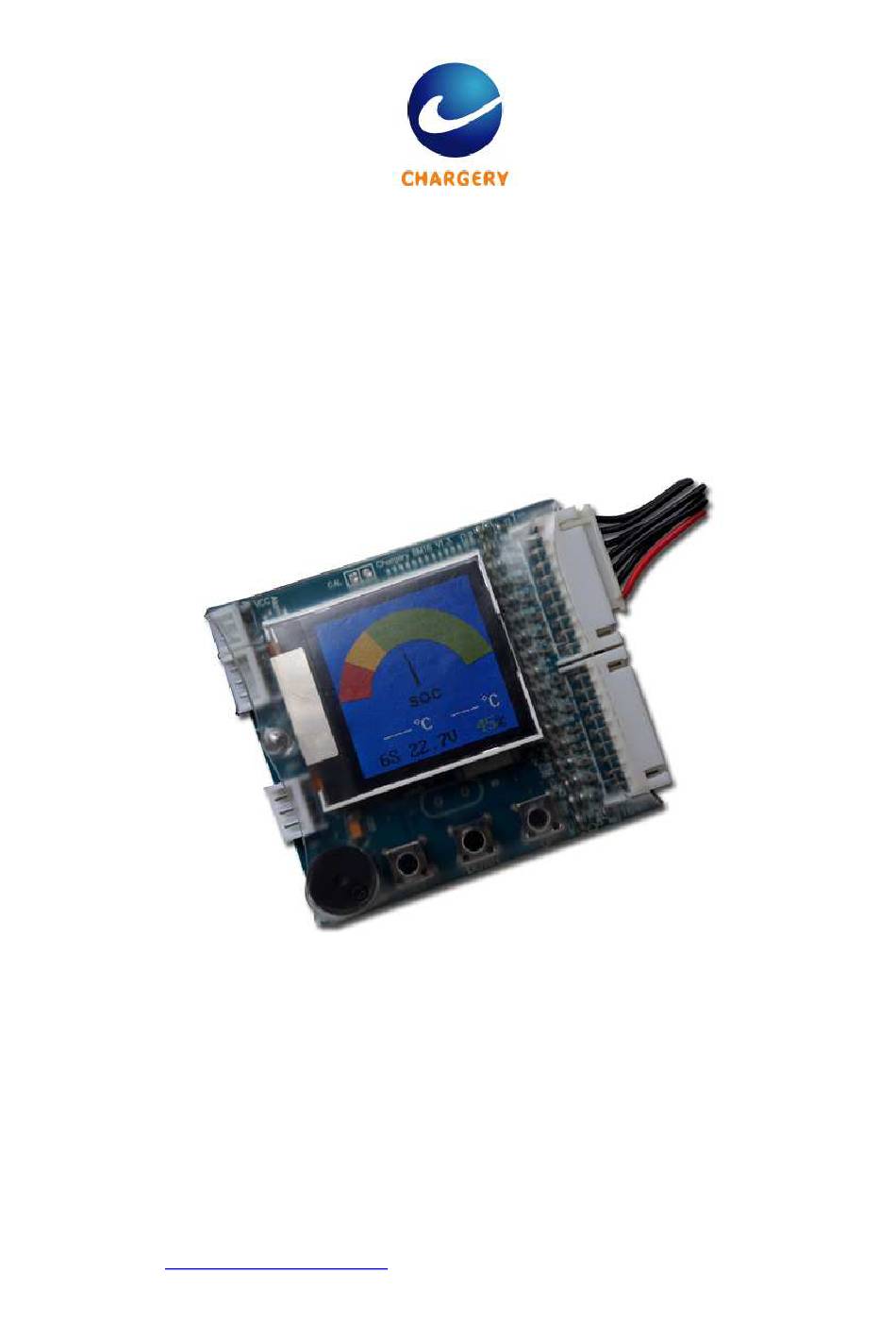

Operating Instructions
CHARGERY
BM16LP
V3.0
Microprocessor controlled high performance Battery Monitor
For 3S~16S LiPoly battery pack.
Chargery Power Co., Ltd.
Head Office
Road, Nanshan Shenzhen, 518054, China.
Add: Chuangye
Zip code: 518054
Tel: +86 755 2643 6165
Fax: +86 755 2641 2865
Email:
admin@chargery.com.cn
Web: www.chargery.com
Advertisement
Related Manuals for Chargery BM16LP V3.0
Summary of Contents for Chargery BM16LP V3.0
- Page 1 Operating Instructions CHARGERY BM16LP V3.0 Microprocessor controlled high performance Battery Monitor For 3S~16S LiPoly battery pack. Chargery Power Co., Ltd. Head Office Road, Nanshan Shenzhen, 518054, China. Add: Chuangye Zip code: 518054 Tel: +86 755 2643 6165 Fax: +86 755 2641 2865 Email: admin@chargery.com.cn...
- Page 2 Thanks for your purchasing the Battery saver, please read the manual carefully before using. Chargery Battery Saver BM16LP is for 3S ~ 16S LiPolymer battery applied to E-bike, E-scooter etc., High light red LED and loud beepers (85Db) make sure battery operation safety. The unit is with TFT...
- Page 3 3S-16S LiPolymer battery Monitor and Saver BM16LP V3.0 Operating guideline Connect the battery to BM16LP, keep the polarity correct. The detailed connection diagram is as the following figure 1 and figure 2. The unit will initialize the beeper and LED, beeper sounds once time, warning LED flash once time.
- Page 4 3S-16S LiPolymer battery Monitor and Saver BM16LP V3.0 battery 2# into socket 2 separately. Take one 8S battery and one 4S sample as following: Figure 2 Cell 1 Socket 1 Cell 2 Alarm Port Cell 3 Temperature sensor Cell 4...
-
Page 5: Backlight Time
3S-16S LiPolymer battery Monitor and Saver BM16LP V3.0 Program setup Before driving your e-bike or e-scooter etc., you can set up many important parameters prevent your battery from over charge, over discharge, over difference of cell voltage, under battery gauge or over temperature. - Page 6 3S-16S LiPolymer battery Monitor and Saver BM16LP V3.0 Alarm Remind If the device detects the alarm events, including over charge, over discharge, over temperature and over difference voltage, it can do: The buzzer beeps and LED flash. You can press UP or DOWN button check the error information, as the following.
- Page 7 BM16LP V3.0 Warranty and Service Chargery Power Co., Ltd. as manufacture of R/C model power warrants its charger and saver, monitor etc. to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
