HIGH RISER ASSEMBLY INSTRUCTIONS
1

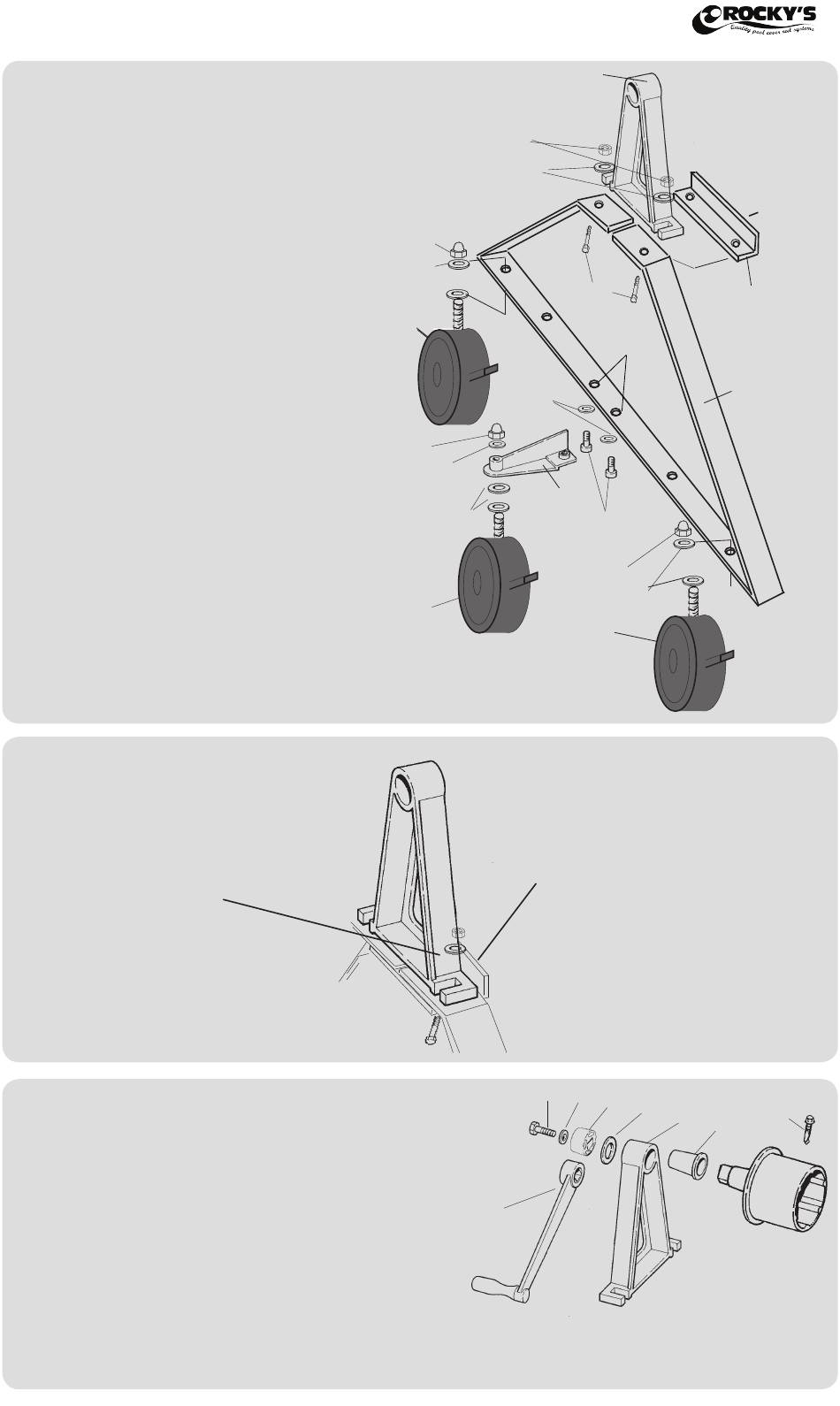

Assembling the End Units
Important: Before you start to assemble the
High Riser make sure that the two
middle holes in the High Riser Base are
pointing inwards. These holes are closer to
the edge of the Base and are where the Third
Leg will attach. Attach the 4 Frame to the Base
using two 3/8"x1.5" Bolts, two 3/8'' Washers
and two Heavy Nuts.
Ensure that the Retainer is bolted under the
Base on the outside.
The Retainers purpose is to secure the Frame
onto the High Riser Base and keep the Frame
centered.
Next attach the Third Leg to the Base using
two 3/8''x1'' Bolts and two 3/8'' Washers.
Then bolt the Wheels onto the Base and Third
Leg. On the Third Leg Wheel with the short-
er stem place 2 of the thick 3/8" Washers on
the Wheel Shaft before putting it through the
Third Leg this will keep the wheel level when
the Tube is weighted.
2
Retainer Detail
When attaching the Frame
to the High Riser Base put
the Bolts through the Re-
tainer then the Base and
finally the Frame.
Next use the Heavy Nuts
on the top to cover the
slot in the Frame. Doing
this will ensure that the
top Frame will not shift or
slip over the Bolt.
3
Reel Assembly
When you have joined and bolted the
tubing together and secured the Hub into the end of the Tube
using the TEK screws, next slide the end of the Hub into the
Black Bushing through the Frame. Place the Black
Washer on the end of the Hub and then
secure the Handle. On the other end of the unit place the
Knob in place of the Handle and secure with the 5/16"
stainless Washer and Bolt.
Very Important:
Do not overtighten the Bolts holding the Handle in place, or
the Bolt that holds the Knob at the other end of the unit. This
will make it difficult to turn the Handle.
VERY IMPORTANT:
difficult to rotate the tube.
For Commercial and Residential Units
Do not over tighten the bolt on either end as this will make it
031
021
029
021
988
021
029
021
022
213
Note: The Retainer must
be fitted in this position to
stop the Frame from
moving and to help
disperse the weight of the
Tube.
005 019
073
057
009
Retainer bolts
under High Riser
Base
3rd Leg
Holes
063
007
029
021
988
061
107
057
105
053
High Riser Base
051
001
065
069
