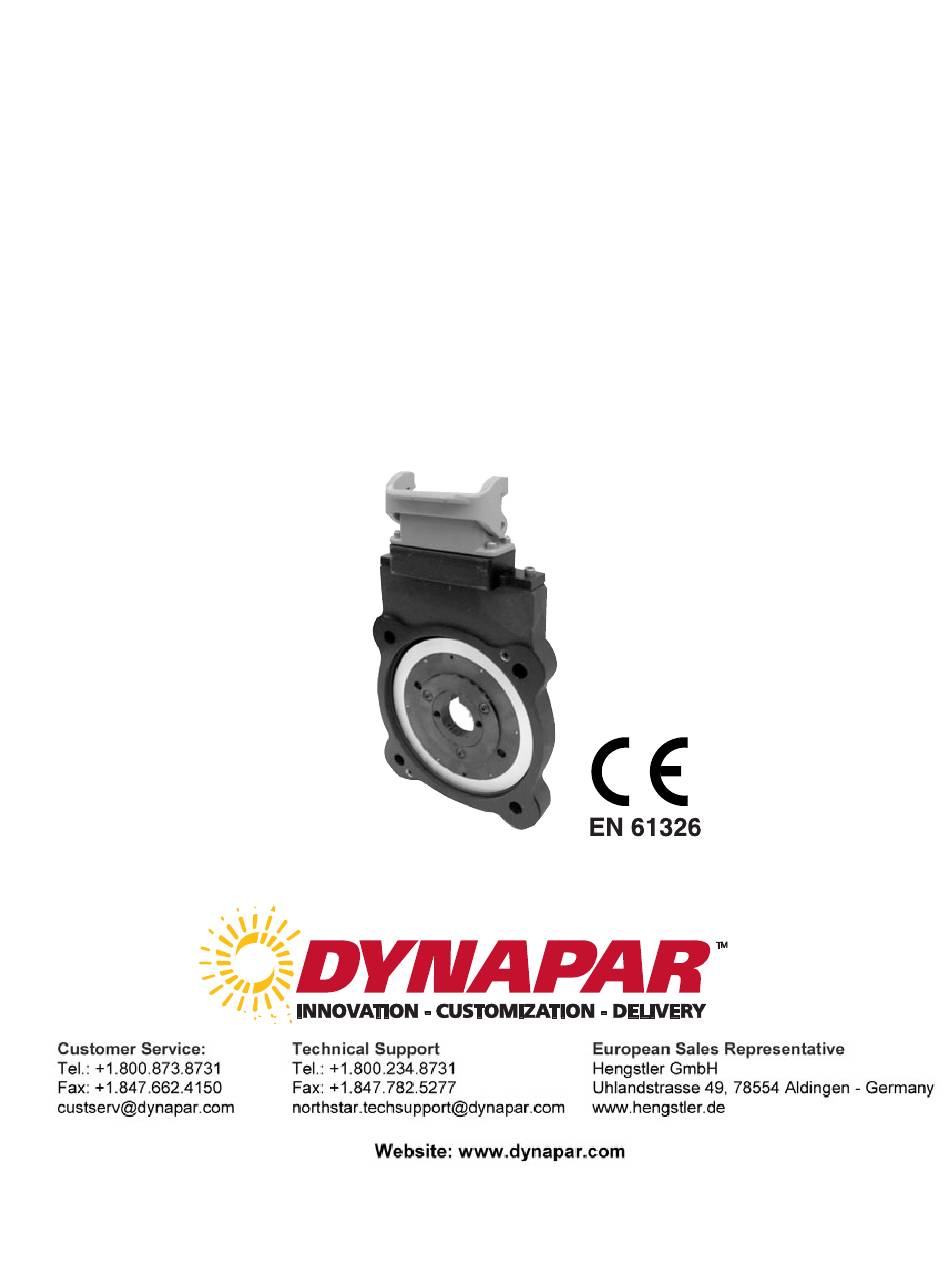

- Page 1 NorthStar brand Instruction Manual WIND 56 Magnetoresistive Encoder for Pitch Control Unit Applications Patent Pending *702820-0001* REV. C...
- Page 2 NorthStar WIND 56 Instruction Manual +1.800.873.8731 702820-0001 Rev. C ©DYNAPAR June 2012 Page 2...
-
Page 3: Table Of Contents
Methods and apparatus disclosed herein may be subject to U.S. Patents existing or applied for. Dynapar reserves the right to add, improve, modify, or with- draw functions, design modifications, or products at any time without notice. Dynapar shall not be liable for errors contained herein or for incidental or consequential damages in connection with furnishing, performance, or use of this material. -
Page 4: Introduction
National Electrical Code and sound local practices. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Dynapar assumes no liability for the customer's failure to comply with these requirements. -
Page 5: General

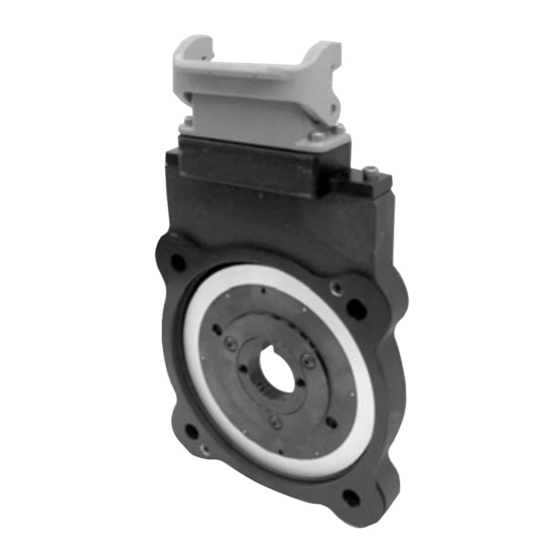

Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, please contact Dynapar., or one of its designated representatives. 1.2 Description The NorthStar WIND56 is a modular digital encoder. -
Page 6: Specifications
NorthStar WIND 56 Instruction Manual 1.3 Specifications MECHANICAL STANDARD OPERATING CHARACTERISTICS Shaft Speed: 5,000 RPM Code: Incremental Mounting Configuration: 4.5” 56C face mount Pulses per Revolution: 1024 for NEMA MG1 standards Phasing Sense: A leads B for Counter-Clockwise Housing Material: Cast Aluminum... -
Page 7: Installation
Inspect shipping container for external damage. All claims for damage (apparent or concealed) or partial loss of shipment must be made in writing to Dynapar within (5) days from receipt of goods. If damage or loss is apparent, please notify the shipping agent immediately. -
Page 8: Encoder Frame Installation
NorthStar WIND 56 Instruction Manual 2.2 To install the encoder frame, perform the following steps: NOTES: 1. The encoder and the wheel are a matched set and are not interchangeable. The serial numbers should be double checked to ensure proper assembly and performance. The serial number on the encoder is found on the encapsulation (example: 102). - Page 9 NorthStar WIND 56 Instruction Manual NOTE Be sure “This Side Out” is visible on the face of the pulse wheel after installation Shown with customer supplied mating connector Figure 4: Pulse Wheel Orientation +1.800.873.8731 702820-0001 Rev. C ©DYNAPAR June 2012...
-
Page 10: Electrical Installation
NorthStar WIND 56 Instruction Manual 2.3 Electrical Installation Electrical connections are made to the sensor module through a standard 1/2 inch NPT liquid tight flexible conduit. The nipple length may be changed to extend the outlet box if desired. Interconnection cable recom- mendations are as follows: stranded copper, 22 through 16 gage, braided or foil with drain wire shielding 0.05 µF maximum total mutual or direct capacitance, outer sheath insulated. -
Page 11: Returning Northstar Brand Equipment To Dynapar
NorthStar WIND 56 Instruction Manual 2.4 Returning Equipment to Dynapar If it is necessary to return the unit for repair or replacement, a Return Material Authorization (RMA) number must be obtained from a factory representative before returning the equipment to our service department. - Page 12 NorthStar WIND 56 Instruction Manual +1.800.873.8731 702820-0001 Rev. C ©DYNAPAR June 2012 Page 12...
