Original Instructions

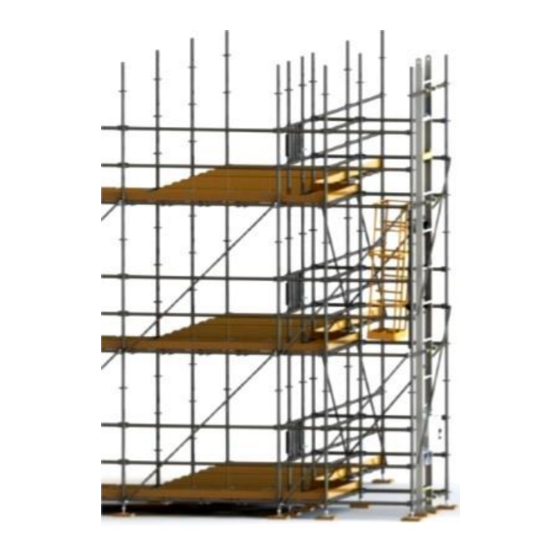

BETA MAX
MAXIAL TRACK HOIST
USE AND MAINTENANCE
INSTRUCTION MANUAL
Rev. 2 .2 - 2017
SERIAL NUMBER:
1895 Robert J. Conlan Blvd. NE
Palm Bay, FL 32905
PH: 800.233.5112 --- Fax 321.768.9517
www.betamaxhoist.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXIAL TRACK HOIST and is the answer not in the manual?

Questions and answers

Related Manuals for Beta Max MAXIAL TRACK HOIST

Summary of Contents for Beta Max MAXIAL TRACK HOIST

  • Page 1 Original Instructions BETA MAX MAXIAL TRACK HOIST USE AND MAINTENANCE INSTRUCTION MANUAL Rev. 2 .2 - 2017 SERIAL NUMBER: 1895 Robert J. Conlan Blvd. NE Palm Bay, FL 32905 PH: 800.233.5112 --- Fax 321.768.9517 www.betamaxhoist.com...
  • Page 3 This manual is to be used only if the serial or model shown in the manual corresponds with the identification information shown on the machine. If they do not correspond, contact your local BETA MAX retailer or agent.
  • Page 4 BETA MAX Model: MAXIAL TRACK HOIST Date Signature Written By: Beta Max 06-16-2015 Approval By: Beta Max 07-08-2015 © BETA MAX Reproduction of this document by any means, in whole or in part, is prohibited without the authorization of BETA MAX...

  • Page 5: Table Of Contents

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) TABLE OF CONTENTS INTRODUCTION ................1-1 USE AND MAINTENANCE INSTRUCTION MANUAL ............. 1-1 1.1.1 The importance of the manual ....................1-1 1.1.2 Conserving the manual ......................1-2 1.1.3 Consulting the manual ......................1-2 PURPOSE OF THE USE AND MAINTENANCE INSTRUCTION MANUAL ......
  • Page 6 Electrical ..........................3-15 3.4.9.1 Understanding electricity ....................3-15 3.4.9.2 Maxial Track Hoist electricity ................... 3-17 INTENDED USE ........................3-18 NORMAL CONDITIONS OF STORAGE ................3-18 STORAGE CONDITIONS WITH TEMPERATURES REACHING A MINIMUM OF 14°F ..3-18 STORAGE CONDITIONS WITH TEMPERATURES LOWER THAN 14°F ......3-19 AMBIENT WORKING CONDITIONS ..................
  • Page 7 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) INSTALLATION PROCEDURE ....................5-3 RAISING THE SLIDING HEAD ....................5-10 TEST AND VERIFICATION DATA SHEET OF THE MACHINE’S COMPONENTS ....5-12 COMMAND AND CONTROL DEVICES ..........6-1 GENERAL INFORMATION ON COMMAND DEVICES ............6-1 COMMANDS ON THE HANDHELD CONTROL PENDANT ............
  • Page 8 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) RESIDUAL RISKS ........................7-8 7.6.1 Risks arising from operating with configurations not provided for by the manufacturer ..7-8 7.6.2 Risks arising from an incorrect positioning of the machine ............ 7-9 7.6.3...
  • Page 9 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3 FUNDAMENTAL MAINTENANCE OPERATIONS ..............10-5 10.3.1 Ladder track sections ...................... 10-6 10.3.2 Sliding Head ........................10-6 10.3.3 Universal Carriage ......................10-7 10.3.4 Wire rope cable ....................... 10-8 10.3.4.1 Removing the wire rope cable ..................10-8 10.3.4.2 Installing wire rope cable ....................
  • Page 10 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | vi TABLE OF CONTENTS...

  • Page 11: Introduction

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 1: INTRODUCTION Record of modifications Revision Executor Date Description of modification INTRODUCTION...

  • Page 12: Use And Maintenance Instruction Manual

    REV. 2.2 (2017) 1. INTRODUCTION In 1990, Beta Max introduced a portable track hoist system or ladder hoist, as it is sometimes called because of its ladder-like appearance. This product is being employed by scaffolding companies, utilities, processing plants, and a variety of commercial companies.

  • Page 13: Conserving The Manual

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 1.1.2 Conserving the manual The manual must be carefully kept away from humidity and heat and it is to be used in such a way so as not to damage the content or alter the format.

  • Page 14: Purpose Of The Use And Maintenance Instruction Manual

    • SHUTTING DOWN NOTE If the warnings and suggestions presented in this manual, regarding the above mentioned operations, are not complied with, BETA MAX cannot be held responsible for the safety, reliability and performance of the machine. NOTE Failure to meet the requirments stipulated in this manual relieves the Manufacturer from responsibility, or any incidents pertaining to such negligence.
  • Page 15 • use of spare parts other than those provided by BETA MAX BETA MAX will not be held liable for risks caused as a result of non-complicance with such requirements. The manual cannot be used as a reference if the intention is to carry out modifications that effect the machine’s configuration.

  • Page 16: Updates Of The Manual

    “MACHINE” refers to the material hoist with a wire rope cable drive system mounted onto a ladder track, with the brand name BETA MAX MAXIAL TRACK HOIST model, in all its possible conformations and configurations. From this point forward in this instruction manual, when reference is made to the Material Hoist MAXIAL TRACK HOIST model, solely “MACHINE”...

  • Page 17: Prerequisites For The Machine User

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) PREREQUISITES FOR THE MACHINE USER The information contained in this manual must be supported by the work being carried out well and applying firm principles of safety, training, inspection, assembly, maintenance,...

  • Page 18: Prerequisites For The Assigned Operator

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) PREREQUISITES FOR THE ASSIGNED OPERATOR The information contained in this instruction manual must be supported by sound judgement, appropriate safety checks and caution in assessing every situation. Since the operator has direct control of the machine, it is his/her responsibility to comply with the safety requirments in question.

  • Page 19: General Information

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 2: GENERAL INFORMATION Record of modifications Revision Executor Date Description of modification GENERAL INFORMATION...

  • Page 20: Identification Data Of The Manufacturer And The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 2. GENERAL INFORMATION IDENTIFICATION DATA OF THE MANUFACTURER AND THE MACHINE Manufacturer: Beta Max, Inc. P.O. Box 2750 Melbourne, FL 32902-2750 www.betamaxhoist.com info@betamaxhoist.com Type: MATERIAL HOIST Model: MAXIAL TRACK HOIST...

  • Page 21: Identification Sign

    — also meaning that the rated load of the machine is 450 lbs in the carrier basket. The Maxial Track Hoist is a material hoist with a vertical ladder style supporting mast. Since the machine has been created with characteristics which are totally modular, whichever height of assembly is reached (up to the maximum lifting height of 325 feet) identical modules are to be used.
  • Page 22 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 2-3 GENERAL INFORMATION...

  • Page 23: Machine Information

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 3: MACHINE INFORMATION Record of modifications Revision Executor Date Description of modification MACHINE INFORMATION...

  • Page 24: Preface

    3. MACHINE INFORMATION PREFACE In 1990, Beta Max introduced a portable track hoist system or ladder hoist, as it is sometimes called because of its ladder-like appearance. This product is being employed by scaffolding companies, utilities, processing plants, and a variety of commercial companies.

  • Page 25: Machine Layout

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) MACHINE LAYOUT Figure 3.1 Maxial Track Hoist Page | 3-2 MACHINE INFORMATION...

  • Page 26: Description Of The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) DESCRIPTION OF THE MACHINE The main sections of the machine shown in figure 3.2 and listed in the legend below are then described in detail in the subsequent paragraphs.

  • Page 27: Track Components

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.3.1 Track components 3.3.1.1 Base Feet The Base Feet are an important component in stabilizing the base of the ladder track. The Base Feet create a larger footprint for the ladder track rails.

  • Page 28: Ladder Track

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.3.1.4 Ladder Track The track sections are built of rugged aluminum, so they are strong but lightweight, weighing only 3 lb/ft (44.6 g/cm). The track sections come in three lengths. Each track section is 24 in.

  • Page 29: Univerisal Carriage

    Figure 3.8 DANGER It is mandatory to identify and resolve the cause of the intervention of the pawl style safety device before placing the Maxial Track Hoist back into service. Page | 3-6 MACHINE INFORMATION...

  • Page 30: Sliding Head

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.3.1.6 Sliding Head The Sliding Head holds the pulley over which the wire rope travels and is designed to make it easier to add or remove track pieces. It incorporates a 5-in. (12.7-cm) pulley on which the wire rope coming from the Motor Pack goes up and over clockwise, traveling from the front of the track and back down to the Universal Carriage.

  • Page 31: Moveable Carriage Stops

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.3.1.7 Moveable Carriage Stops 3.3.1.7.1 Bottom Stop The Bottom Stop is a movable carriage stop that rests on a rung below the Universal Carriage to stop the downward travel of the Universal Carriage at a predetermined location for loading and unloading a Carrier Basket.

  • Page 32: Carrier Baskets

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.3.1.8 Carrier Baskets A variety of attachments are available to lift different kinds of loads known as Carrier Baskets. BetaMax manufactures three main Carrier Baskets and other specialized custom Carrier Baskets that can be attached to the Universal Carriage.

  • Page 33: Hoist Components

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.3.2 Hoist components 3.3.2.1 Motor pack The Motor Pack is the brawn of the system. It is made up of the shroud structure, transmission and drum, electric motor and brake, and the wire rope cable. The motor pack also contains the two safety limit switches of the unit, one for the up direction and one for the down direction.

  • Page 34: Technical Specifications Of The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) TECHNICAL SPECIFICATIONS OF THE MACHINE 3.4.1 General data Lifting speed 80 fpm Rated load 450 lbs Maximum lifting height 325 ft Max. wind speed allowed during installation 25 mph Max.

  • Page 35: Technical Specifications Of Electric Motor

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.4.4 Technical specifications of electric motor Type self-braking single-phase Motor size TIPO 2329 Protection against the elements IP55 Duty cycle Isolation class Rated output 1.1 Kw Revolutions 1600 Rated voltage (110 version)

  • Page 36: Internal Dimensions And Capacity

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 20” x 11” x 35” Motor pack (dimension) (weight) 166 lbs 16” x 16” x 15” Control/electrical box (dimension) (weight) 30 lbs 12” x 12” x 4” Handheld Control Pendant (dimension)

  • Page 37: Forces On Scaffold

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 3.4.8 Forces on scaffold For a balanced load; the pullout force will be equally distributed into F1 and F2 as denoted. For forces that push on the scaffold F1 and F2 will be reversed. For a balanced load, shear force is minimal.

  • Page 38: Electrical

    3.4.9 Electrical 3.4.9.1 Understanding electricity The electricity that powers your Maxial Track Hoist is as important as the hoist itself. Electricity may seem complicated, and an easy-to-understand explanation would be helpful. The following is an attempt to help explain and simplify electricity.
  • Page 39 MAXIAL TRACK HOIST REV. 2.2 (2017) Beta Max electrical hoists are high energy and can lift large loads at high speeds, which require a lot of AMPERAGE (water volume). Therefore, a lot of continuous VOLTAGE (pressure) is required. As the load increases, more AMPERAGE is needed. Maxial Track Hoists require more AMPERAGE than a simple rotary saw or drill because of the extra work being performed.

  • Page 40: Maxial Track Hoist Electricity

    3.4.9.2 Maxial Track Hoist electricity The Maxial Track hoist is powered by 115V AC or 220V AC motor that drives a gear reduction transmission providing a single-rope lifting capacity of 600 lb (272.2 kg). The 600 lb lifting capacity is an end of the wire rope cable capacity. The net capacity is 450 lbs which is from the end of rope capacity minus the Universal Carriage and Carrier Basket.

  • Page 41: Intended Use

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) INTENDED USE The machine’s specific applications: — Roofing — General building/construction — Scaffold erection and dismantling — Tiling — Plastering — Carpentry — Insulation installation The machine is designed to provide the user with the following advantages: —...

  • Page 42: Storage Conditions With Temperatures Lower Than 14°F

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) STORAGE CONDITIONS WITH TEMPERATURES LOWER THAN 14°F The following precautions must be taken when storage temperatures are lower than 14°F: — in order to protect the electrical system from damage caused by low temperatures, remove the electrical control panel and the pendant and store them in a dry, heated place or either way in a place where the temperature is not lower than 14°F.

  • Page 43: Handling And Transportation

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 4: HANDLING AND TRANSPORTATION Record of modifications Revision Executor Date Description of modification HANDLING AND TRANSPORTATION...

  • Page 44: Introduction And Preliminary Operations

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 4. HANDLING AND TRANSPORTATION INTRODUCTION AND PRELIMINARY OPERATIONS The area to be used for preparation of the material, loading, unloading, temporary storage or warehousing must have clear signs and closed off, in such a way so as to prevent access to outsiders or anyone not authorized.

  • Page 45: Transportation

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) TRANSPORTATION The packaging of the modular components constituting the machine is designed primarily to reduce clutter, as much as possible. This particular type of packaging greatly facilitates the process of unloading the material; it is obligatory to use a lift truck (forklift) to unload the material, due to the weight as well as for reasons of safety of personnel;...

  • Page 46: Handling

    With regards to transportation for the first installation, BETA MAX uses a tested positioning system, to place the various components of the machine onto the various transport vehicles. This allows the warehousing department to establish the exact overall dimensions and therefore, the capacity that the transport vehicle is required to have for any type of arrangement of hoist which is to be dispatched.

  • Page 47: Loading And Unloading

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) LOADING AND UNLOADING In order to optimize all subsequent stages of work, before proceeding to load or unload the machine, carry out the operations described below: — close off the area where operations of loading and unloading the machine are carried out, in a clear and unequivocal manner, and enclose its perimeter in an effective manner, to prevent possible access to outsiders or persons anyhow not authorized.
  • Page 48 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 4-5 HANDLING AND TRANSPORTATION...
  • Page 49 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 5: INSTALLATION Record of modifications Revision Executor Date Description of modification INSTALLATION...

  • Page 50: Installation

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 5. INSTALLATION INTRODUCTION The operations described in this chapter are of particular importance as they explain the installation, disassembly and raising the sliding head procedures of the machine. Experience...

  • Page 51: Installation Data Sheet

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) The following functions have to be constantly monitored during the assembly operations: — the exact positioning of the structures and components constituting the machine, in accordance with the heights and indications shown in the installation design, and particularly in conformity with the horizontal and vertical measurements or distances provided in the design itself;...

  • Page 52: Installation Procedure

    REV. 2.2 (2017) INSTALLATION PROCEDURE Once the ideal location for the Maxial Track Hoist has been determined, the setup and operation are not complicated. There are no tools necessary for installing your Maxial Track Hoist. When deciding upon the most suitable position for the hoist, several items are to be considered.
  • Page 53 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 4. Locate the Universal Carriage. Insert the Universal Carriage onto the track section starting with the bottom of the Universal Carriage (bumper end) at the top the track to the bottom of the track. To fully install the Universal Carriage onto the track you must manually release the Pawl Safety Device.
  • Page 54 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7. Once the track is in the correct position and plumb, attach it to the horizontal members of the scaffolding section using Scaff-clamps. Twist the T-bolt to pull the track tightly against the scaffolding. There should be 2 Scaff-clamps positioned no farther than 6 ft 6 in.
  • Page 55 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10. Stack the track section with the Sliding Head vertically onto the track section securely fastened to the scaffolding. Align the holes that are in the tongue with the holes in the channel.
  • Page 56 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 13. Grasp the sliding head section by the handle, pulling it up the track and resting it on the rung that is no higher than the last scaff-clamp. Ensure the sliding head locks into postion on top of the rung.
  • Page 57 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 15. Set the hoist Motor Pack in front of the base section with the wire rope on the drum facing out to the Universal Carriage side of the track. Set the bottom of the Motor Pack on the second rung from the ground.
  • Page 58 Figure 5.14 26. Insert the top stop onto the track one rung under the sliding head. Figure 5.15 27. The Maxial Track Hoist is now ready for use. Page | 5-9 INSTALLATION...

  • Page 59: Raising The Sliding Head

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) RAISING THE SLIDING HEAD This procedure takes two people, one at the Motor Pack and one above the Sliding Head. 1. Raise the Universal Carriage up the track by pressing the UP button on the Handheld Control Pendant so that the bottom of the carriage is higher than two rungs above the Motor Pack.
  • Page 60 Universal Carriage to the ground by pressing the DOWN button on the Handheld Control Pendant. 9. Remove the Top Stop from the track and reinstall it one rung under the Sliding Head section. 10. The Maxial Track Hoist is now ready to begin work at the desired height. Page | 5-11 INSTALLATION...

  • Page 61: Test And Verification Data Sheet Of The Machine's Components

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) TEST AND VERIFICATION DATA SHEET OF THE MACHINE’S COMPONENTS The test data sheet, attached to the machine's use and maintenance instruction manual, is the original, and a double copy of it must be completed by the person who is adequately trained to carry out the installation operations.
  • Page 62 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 5-13 INSTALLATION...

  • Page 63: Command And Control Devices

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 6: COMMAND AND CONTROL DEVICES Record of modifications Revision Executor Date Description of modification COMMAND AND CONTROL DEVICES...

  • Page 64: General Information On Command Devices

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 6. COMMAND AND CONTROL DEVICES GENERAL INFORMATION ON COMMAND DEVICES The commands and control devices pertaining to the machine referred to in this manual are described in detail if the following paragraphs, therefore, it is of the utmost importance to read this chapter attentively in order to use all the commands described correctly.

  • Page 65: Down Pushbutton

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 6.2.3 DOWN pushbutton The DOWN pushbutton allows the operator to control the machine in the downward direction. This pushbutton has a momentary contact, contact is only closed by continued pressure on the pushbutton and opens upon release.
  • Page 66 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 6-3 COMMAND AND CONTROL DEVICES...
  • Page 67 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 7: SAFETY REGULATIONS Record of modifications Revision Executor Date Description of modification SAFETY REGULATIONS...

  • Page 68: Safety Regulations

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7. SAFETY REGULATIONS MOVABLE GUARDS Panels, doors, or bars made of steel are set in place to close off parts of the machine used to transport materials, or areas which can be particularly dangerous due to the machine’s movable parts or to an area where electricity passes.

  • Page 69: Safety Equipment

    Sliding Head for if the Top Stop was not installed to help protect the Sliding Head section from impact with the Universal Carriage. DANGER All installations of the Maxial Track Hoist system require the Top Stop to be installed at least one rung below the Sliding Head section. 7.2.1.2 Pawl style safety device The pawl style safety device is a safety device located on the Universal Carriage.

  • Page 70: Electo-Mechanical Safety Equipment

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.2.2 Electo-mechanical safety equipment The following electro-mechanical safety equipment is installed on the machine: — Slack rope assembly 7.2.2.1 Slack rope assembly The slack rope assembly is a directional safety device located on the Motor Pack. The slack rope assembly intervenes when tension on the wire rope cable is lost.

  • Page 71: List Of Plates Found On The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) LIST OF PLATES FOUND ON THE MACHINE Figure 7.2 Figure 7.3 Figure 7.4 Figure 7.7 Figure 7.6 Figure 7.10 Figure 7.9 Figure 7.8 Page | 7-4 SAFETY REGULATIONS...

  • Page 72: Fundamental Safety Regulations

    (these operations are to be carried out exclusively by authorized and particularly experienced personnel, otherwise, you must contact Beta Max Technical Support) 7.4.2 Local safety regulations Strictly adhere to all national safety regulations in the country where the machine is installed.

  • Page 73: Pre-Installation Requirements

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.4.4 Pre-installation requirements To install the machine correctly, the designated technical expert must: — study the use and maintenance instruction manual attentively before starting the work — secure the assembly/disassembly area from objects that may fall, by delimiting or...

  • Page 74: Regulations Pertaining To Maximum Loads

    The plates indicating the maximum loads of the machine are illustrated below. MAXIAL TRACK HOIST may have a maxium of 450 lbs. in the Carrier Basket. Figure 7.11 Page | 7-7...

  • Page 75: Residual Risks

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) RESIDUAL RISKS This paragraph is intended to highlight the residual risks associated with the operations covered in this manual. The major risks can be identified in the particular situations mentioned below: —...

  • Page 76: Risks Arising From An Incorrect Positioning Of The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.6.2 Risks arising from an incorrect positioning of the machine The position where the machine will be mounted is actually defined and the machine is prepared for this operation.

  • Page 77: Risks Arising From Transporting The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.6.4 Risks arising from transporting the machine The machine and its accessories are actually unloaded. The material is set according to the position chosen for the assembly operation. For this operation, all the documents pertaining to the configuration together with the Use and Maintenance Instruction Manual of the machine must be consulted.

  • Page 78: Risks Arising From Incorrect Assembly On The Ground

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.6.5 Risks arising from incorrect assembly on the ground The first components of the Ladder Track sections and anchors are assembled. For this operation, all the documents pertaining to the configuration together with the Use and Maintenance Instruction Manual of the machine must be consulted.

  • Page 79: Risks Arising From Incorrect Over Ground Assembly

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.6.6 Risks arising from incorrect over ground assembly The machine’s Ladder Track sections are assembled and the relative anchors are implemented with the relative protruding sections, which are necessary for fastening the Ladder Track.

  • Page 80: Risks Arising From Functional Verification Of The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.6.7 Risks arising from functional verification of the machine Correct functionality of all of the machine’s driving and safety devices is verified together with the correct movement of the machine itself.

  • Page 81: Risks Arising From Handling The Machine At The Construction Site

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 7.6.9 Risks arising from handling the machine at the construction site With the use of lifting equipment, the machine is moved from one area to another, within the same construction site where it has been installed.
  • Page 82 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 7-15 SAFETY REGULATIONS...

  • Page 83: Preparation For Machine Use

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 8: PREPARATION FOR MACHINE USE Record of modifications Revision Executor Date Description of modification PREPARATION FOR MACHINE USE...

  • Page 84: Safety Requirement Before Handling The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 8. PREPARATION FOR MACHINE USE SAFETY REQUIREMENT BEFORE HANDLING THE MACHINE Once the machine is mounted and the electrical connection is set, it is good practice to carry out a number of verifications to ascertain its functionality.

  • Page 85: Safety Requirements During Machine Operation

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) SAFETY REQUIREMENTS DURING MACHINE OPERATION In order to work safely, always remember the following requirements during machine operation: — it is strictly forbidden to construct work levels which are higher than the loading unit —...

  • Page 86: Electrical Verification Of The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 8.3.2 Electrical verification of the machine In order to test and ascertain that the electrical command and control devices work perfectly well, proceed as described below: — check that all the STOP pushbuttons function properly. For this purpose, carry out trial...

  • Page 87: Daily Verification Prior To Operating The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 8.3.4 Daily verification prior to operating the machine Every day, before starting to operate the machine, proceed as described below: — ensure that no equipment or material is suspended from the machine’s structure that can interfere with the machine’s path...

  • Page 88: Operating The Machine

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) OPERATING THE MACHINE Operators who are appropriately trained can operate the machine. Once all the verifications have been carried out on the machine by qualified Technicians who are responsible for the construction site, proceed as described below: —...

  • Page 89: Troubleshooting

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 9: TROUBLESHOOTING Record of modifications Revision Executor Date Description of modification TROUBLESHOOTING...

  • Page 90: The Machine Does Not Start

    Only authorized personnel are to carry out any troubleshooting on the Maxial Track Hoist. The troubleshooting guides are a step-by-step guide with a question being asked and the answer to the question sending the reader to the next apporpiate step to check.

  • Page 91: Maintenance And Repair

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 10: MAINTENANCE AND REPAIR Record of modifications Revision Executor Date Description of modification MAINTENANCE AND REPAIR...

  • Page 92: General Maintenance

    If maintenance is not carried out in accordance with the above mentioned instructions, or not in conformity with what is stipulpated in this manual, it will be considered as improper use. BETA MAX disclaims all responsibility if the operator fails to comply with the requirements.

  • Page 93: Maintenance Schedule

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.2 MAINTENANCE SCHEDULE Maintenace operations must be preformed with the following timetable: Daily Monthly Maitenance every Annually Maintenance operations to perform according to the working hours of the machine are described in detail in the following paragraphs.

  • Page 94: General Maintenance (Daily)

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.2.1 General maintenance (Daily) Perform the maintenance described below daily: — check the work area near and around the hoist and hoistway is free from obstructions, clutter, and trip hazards —...

  • Page 95: General Maintenance (Monthly)

    In addition to the controls concerning the daily maintenance, perform the additional maintenance described below: — inspect the transmission gears by a certified Beta Max technican for any signs of missing or broken gear teeth — inspect wear and tear/usage of the transmission gears by a certified Beta Max technician —...

  • Page 96: Fundamental Maintenance Operations

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3 FUNDAMENTAL MAINTENANCE OPERATIONS The machine’s main components of inspection, verification and lubrication, recommended for all the maintenance operations mentioned above, can be carried out correctly by the following the sections given below: —...

  • Page 97: Ladder Track Sections

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3.1 Ladder track sections The Ladder Track sections are built of rugged aluminum, so they are strong but lightweight. Inspection and maintenance of the Ladder Track sections are important to ensure the structural integrity of the machine.

  • Page 98: Universal Carriage

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3.3 Universal Carriage Some kind of inspection and maintenance on the Universal Carriage should be done daily, refer to the specifc types of maintenance in the maintence checklists located in this manual.

  • Page 99: Wire Rope Cable

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3.4 Wire rope cable Ensure the wire rope cable is not bent, kinked, corroded, knotted, or damaged in any way. If the wire rope shows any of these conditions, immediately replace the wire rope.

  • Page 100: Transmission And Drum

    REV. 2.2 (2017) 10.3.5 Transmission and drum The Maxial Track Hoist transmission is a grease filled gearbox. It contains steel gears incased in a cast aluminum housing. The transmission seals should be inspected routinely, externally of the transmission for any leaks as the grease begins to breakdown. Once a year the transmission is to be opened and inspected by a factory trained certified Beta Max technician.

  • Page 101: Motor And Brake

    REV. 2.2 (2017) 10.3.6 Motor and brake The Maxial Track Hoist utilizes a conical braking system. The conical braking system is a fail safe system that provides safe load handling at any lifting position and securely holds the load even when electrical power is lost. This system operates from the inductive forces in the rotor created by the AC current through the stator wires.

  • Page 102: Adjusting Brake Tension

    9’-9” track sections with the Unisversal Carriage and a basket carrier with full-rated load (450lbs) attached to the end of the wire rope. Beta Max recommends a test distance of wire rope be used for this process instead of a full drum of wire rope to reduce the risk of damage to wire rope.

  • Page 103: Adjusting The Air Gap

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3.6.2 Adjusting the Air Gap The nominal recommended air gap is 0.025 inches (0.635 mm). The air gap is measured between the rotor and the end of brake pad assembly. When adjusting the air gap; the rotor, rear rotor bearing, and bearing locknut move in or out as the adjustment is being made.
  • Page 104 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) — To increase the air gap 1. Remove the motor cooling fan 2. Loosen the three hex head capscrews on the back of the motor end cap (do not remove the three hex head capscrews). Loosen them evenly the amount of distance wanting to be added to the air gap by turning them counterclockwise to control the inner air gap adjustment ring.

  • Page 105: Slack Rope Assembly

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.3.7 Slack Rope Assembly Some kind of inspection and maintenance on the Slack Rope Assembly should be done daily, refer to the specifc types of maintenance in the maintence checklists located in this manual.

  • Page 106: Overweight Limit Switch

    REV. 2.2 (2017) 10.3.8 Overweight limit switch The Maxial Track Hoist is equipped with an overweight limit switch to protect the system from transporting more than the designed rated-load. The Maxial motor pack is designed to float inbetween any two rung locations on the ladder track. The system works like a balancing scale;...
  • Page 107 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) To perform the Overweight Limit Switch Adjustment, follow the procedure below: 1. Add approximately 350 lbs of weight onto the carrier basket and lift the load up approximately 6-8 ft 2.

  • Page 108: Electrical System Maintenance

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.4 ELECTRICAL SYSTEM MAINTENANCE Inspection and maintenance operations of the electrical system will be carried out with the supply voltage disconnected but some troubleshooting will require the supply voltage to be connected.

  • Page 109: Technical Support

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) 10.5 TECHNICAL SUPPORT Technical support for the machine is provided directly by the BETA MAX Company by calling or sending a fax to the numbers below: Ph. 321-727-3737 800-233-5112...
  • Page 110 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 10-19 MAINTENANCE AND REPAIR...

  • Page 111: Warranty

    Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) CHAPTER 11: WARRANTY Record of modifications Revision Executor Date Description of modification WARRANTY...

  • Page 112: Warranty

    Beta Max, Incorporated will provide to the original purchaser** a 12 month limited warranty on all parts excluding those parts whose warranty schedule is listed below. Our obligation under this warranty, as outlined below, is limited to repairing or replacing, at our discretion, any part of the unit, which proves upon examination to be defective in material or workmanship.
  • Page 113 This warranty is void on any unit that has been modified or tampered with, repaired by persons other than a factory representative or an authorized Beta Max distributor, repaired with other than Beta Max standard parts, or damaged by reasons of accident, alteration, misuse or abuse.
  • Page 114 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes Page | 11-3 WARRANTY...
  • Page 115 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix Installation Data Sheet Form (Section 5.2) APPENDIX...
  • Page 116 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
  • Page 119 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix B Verification and Test Data Sheet Form (Section 5.5) APPENDIX...
  • Page 120 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
  • Page 125 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix C Maxial cUL Track Hoist 110 version Troubleshooting Guide (Section 9.2) APPENDIX...
  • Page 126 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
  • Page 135 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix D Maxial cUL Track Hoist 220 version Troubleshooting Guide (Section 9.2) APPENDIX...
  • Page 136 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
  • Page 147 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix E General Maintenance (Daily) Checklist Form (Section 10.2.1) APPENDIX...
  • Page 148 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
  • Page 151 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix F General Maintenance (Monthly) Checklist Form (Section 10.2.2) APPENDIX...
  • Page 152 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
  • Page 155 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) Appendix G General Maintenance (Annually) Checklist Form (Section 10.2.3) APPENDIX...
  • Page 156 Use and Maintenance Instruction Manual MAXIAL TRACK HOIST REV. 2.2 (2017) This page has been left blank for formatting purposes APPENDIX...
