Sensa-Heat ES Series User Manual

Inverter pool& spa heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ES Series
INVERTER POOL& SPA HEAT PUMP
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sensa-Heat ES Series

Summary of Contents for Sensa-Heat ES Series

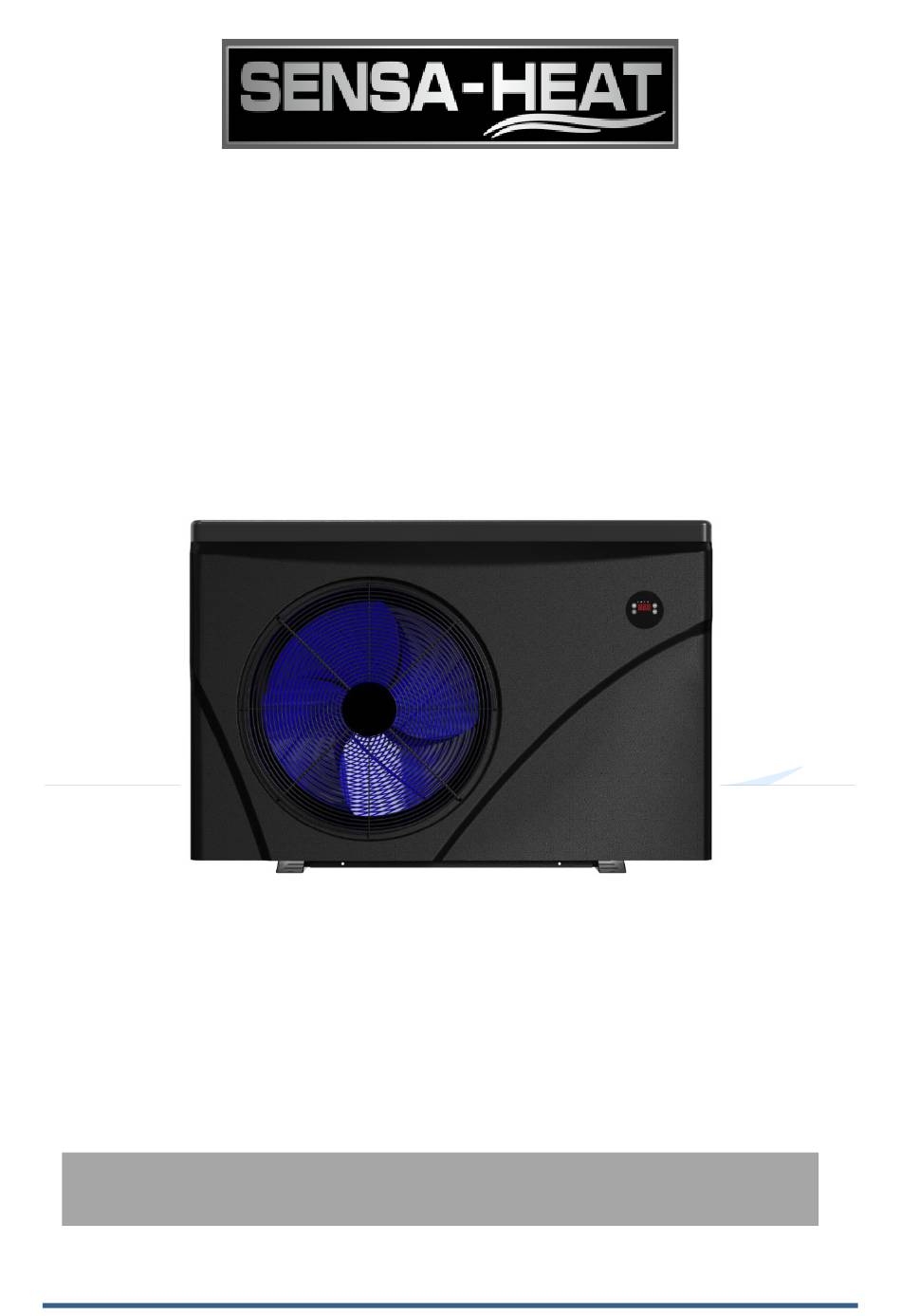

  • Page 1 ES Series INVERTER POOL& SPA HEAT PUMP USER MANUAL...

  • Page 2: Table Of Contents

    Table of contents 1.Introduction 2.Safety precautions 2.1 Warning 2.2 Attention 2.3 Safety 3.About your heat pump 3.1 Transportation 3.2 Accessories 3.3 Features 3.4 Operating condition and range 3.5 Introduction of different modes 3.6 Technical parameter 3.7 Dimension 4.Installation guidance 4.1 Installation reminder 4.2 Wiring 4.3 Electric wiring diagram 4.4 Reference for protecting devices and cable specification.

  • Page 3: Introduction

    1.Introduction Congratulations on the purchase of your new ES Series Heat Pump. The ES Series Heat Pump has been specifically designed for Pool & Spa applications ensuring optimum performance and many years of trouble-free operation. Please read and understand this complete user manual before attempting to install your ES Series Heat...

  • Page 4: Safety Precautions

    2.Safety precautions We have provided important safety messages in this manual for the installation and upkeep of your heat pump. Please thoroughly read and obey all safety messages in this manual. Environment friendly R32 Refrigerant is used for this heat pump. 2.1 Warning This WARNING signed notes a hazard.

  • Page 5: Attention

    2.2 Attention a. Please read the following instructions before installation, use and maintenance. b. Installation must be carried out by a competent person in accordance with this manual. c. Check all plumbing before operating the heat pump, insure there are no water leaks. d.

  • Page 6: About Your Heat Pump

    3.About your heat pump 3.1 Transportation a. Always keep upright. b. Do not lift the heat pump by the water unions as this may cause internal damage to the titanium heat exchanger inside the heat pumps. 3.2 Accessories Connection of the condensate drainage kit:...

  • Page 7: Features

    3.3 Features Stable DC inverter compressor. EEV Technology. Quick reverse cycle defrosting with 4-way valve. High efficiency twisted titanium heat exchanger. High pressure and low-pressure protection. Soft start & wide voltage application. Stable inverter control system. 3.4 Operating condition and range a.

  • Page 8: Technical Parameter

    3.6 Technical parameter Model HPES07 HPES09 HPES13 HPES16 HPES20 HPES24 PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity (kW) 13.0 16.0 20.2 24.2 COP Range 6~10.1 6.2~10.5 6.3~10.8 6.2~10.7 6.2~10.8 6.3~10.8 PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% Heating capacity (kW) 11.0 14.0...

  • Page 9: Dimension

    3.7 Dimension Name Size (mm) Model HPES07 HPES09 HPES13 HPES16 HPES20 HPES24 ※ Above data is subject to modification without notice. Note:The picture above is the specification diagram of the pool& spaheat pump, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice.

  • Page 10: Installation Guidance

    4.Installation guidance 4.1 Installation reminder Only competent persons are authorized to install the heat pump and should be educated with the relevant building codes and standards of their state or local governing body. All electrical connections must be performed by a licensed electrician. a.
  • Page 11 d. Typical plumbing installation diagram, NOTE: If installing the heat pump on an existing pump/filtration setup, the heat pump must be installed after the pump/filter and before the chlorinator/sanitizer Please note:Water connection locations may differ from the diagram; this diagram is to be used as a guide only! ater o tlet hlorinator cell...

  • Page 12: Wiring

    4.2 Wiring a. Connect to appropriate power supply, the voltage should comply with the rated voltage of the products. b. Heat pump must be earthed. c. Wiring must be handled by a professional technician according to the circuit diagram. d. Set leakage rotector according to the local code for iring leakage o erating c rrent ≤ 30m . e.

  • Page 13: Operation Guidance

    5. Operation guidance 1. Key function Symbol Heating & cooling models 1. Power On/Off 2. Wi-Fi setting 1. Lock/Unlock Screen 2. Heating mode (18-40°C) 3. Cooling mode (12-30°C) 4. Auto mode (12-40°C) 1. Boost 2. Silence Temperature Setting 2. Temperature display Press together for 5 second to switch temperature display.
  • Page 14 means 104℉ 3. Operation instruction a. Screen Lock 1) Press “ ” for 3 seconds to lock or nlock the screen 2) Automatic Lock Period: 30 seconds if no operation b. Power On Press “ ” for 3 seconds to nlock screen. Press “ ”...
  • Page 15 g. Wi-Fi Setting When the screen is on, press “ ”for 3 seconds, after “ ” flashing, enter Wi-Fi connection. Connect Wi-Fi on mobile phone and input password, and then control equipment by Wi-Fi. When ” lights on. APP connects Wi-Fi successfully，“ h.

  • Page 16: Testing

    6.Testing 6.1 Inspect heat pump before use. a. Check the heat pump has adequate ventilation,ensure air inlets and outlets, and are not obstructed. b. Ensure heat pump is not installed in a corrosive environment. c. Check electric wiring is fasten and wired correctly, ensure unit is fully earthed. (all electrical work must be carried out by a licensed electrician) d.

  • Page 17: Maintenance

    7.Maintenance “SWITCH OFF” power supply to the heat pump before cleaning, examination and repair repairing 1. In the winter season when the heat pump is not in operation. a. Cut off power supply to prevent any damage to the heat pump. b.

  • Page 18: Trouble Shooting For Common Faults

    8.Trouble shooting for common faults. 1. Repairing Guidance ----------------------------------------------------------------------------------------------------------------------------------------- WARNING If repair or removal is required, please contact an authorized service center. Requirements for Service Personnel Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
  • Page 19 Protection &Failure code Display Protection code description No water protection Power supply excesses operation range (not failure) Excessive temp difference between inlet and outlet water (Insufficient water flow protection) Ambient temperature too high or too low protection (not failure) Anti-freezing reminder (not failure) Display Failure code description High pressure protection...

  • Page 20: Water Pump Connection

    9.Water pump connection Water pump: 230V voltage, ≤500W capacity Breaker/fuse (Customer prepare) Power cord Earthing Power Supply 230V~/50Hz Breaker/fuse Water Pump (Customer prepare) Power Supply 230V~/50Hz Earthing...
  • Page 21 Water pump: 230V voltage, ≤500W capacity Breaker/fuse (Customer prepare) Power cord Earthing Power Supply 230V~/50Hz Customer remote control switch connector Breaker/fuse Water Pump (Customer prepare) Power Supply 230V~/50Hz Earthing...
  • Page 22 Water pump: 230V voltage, ＞500W capacity Breaker/fuse Power cord (Customer prepare) Earthing Power Supply 230V~/50Hz Water Pump Breaker/fuse (Customer prepare) Power Supply 230V~/50Hz Earthing...
  • Page 23 Water pump: 230V voltage, ＞500W capacity Breaker/fuse (Customer prepare) Power cord Earthing Power Supply 230V~/50Hz Customer remote control switch connector Breaker/fuse Water Pump (Customer prepare) Contactor Power Supply 230V~/50Hz Earthing...
  • Page 24 Water pump control and timer connection 1: Water pump timer 2: Water pump wiring of Heat Pump Note: The installer should connect 1 parallel with 2 (as above picture). To start the water pump, condition 1 or 2 is connected. To stop the water pump, both 1 and 2 should be disconnected.

  • Page 25: Wi-Fi Operation

    10.Wi-Fi operation InverGo Download Account Registration Register by e-mail or third-party application. Android a. E-mail registration. Android please download from iPhone please download from APP Download Account-registration 1. Register by mobile or email.
  • Page 26 b. Register through third-party application Create Family Please set family name and choose location of device.
  • Page 27 APP Pairing a. With Bluetooth 1. Please confirm that o ’re connected to Wi-Fi and your Bluetooth is 2. Click “Add Device”, and then follow the instructions to pair device.
  • Page 28 b. With Wi-Fi 1. Please make sure you are connected to Wi-Fi. 2. Press " " for 3 seconds to unlock the screen. Press “ ” for 3 seconds and release. After hearing “ ee ”, enter Wi-Fi password in app. During connection “ ”...
  • Page 29 Operation 1. For heat pump with Heating function only: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting temperature temperature Query Select Timer Boost/Silence Mode On/Off 2. For heat pump with Heating&Cooling function: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting temperature...
  • Page 30 Share Devices to Your Family Members After pairing, if your family members also want to control the device, please let your family members register “In erGo” first, and then the administrator can operate as below: Notice: Weather forecast is just for reference. App is subject to updates without notice.

  • Page 31: Warranty

    11.Warranty Spa-Craft Pty Ltd (Spa-Craft) warrants all products sold will be (under normal use and service) free of defects in material and workmanship for a minimum period of one year from the date of original purchase by the customer as marked on the invoice, for specific product warranty periods please refer to below table.
  • Page 32 AQ43CM-R32-V22...

This manual is also suitable for:

Hpes07Hpes09Hpes13Hpes16Hpes20Hpes24
