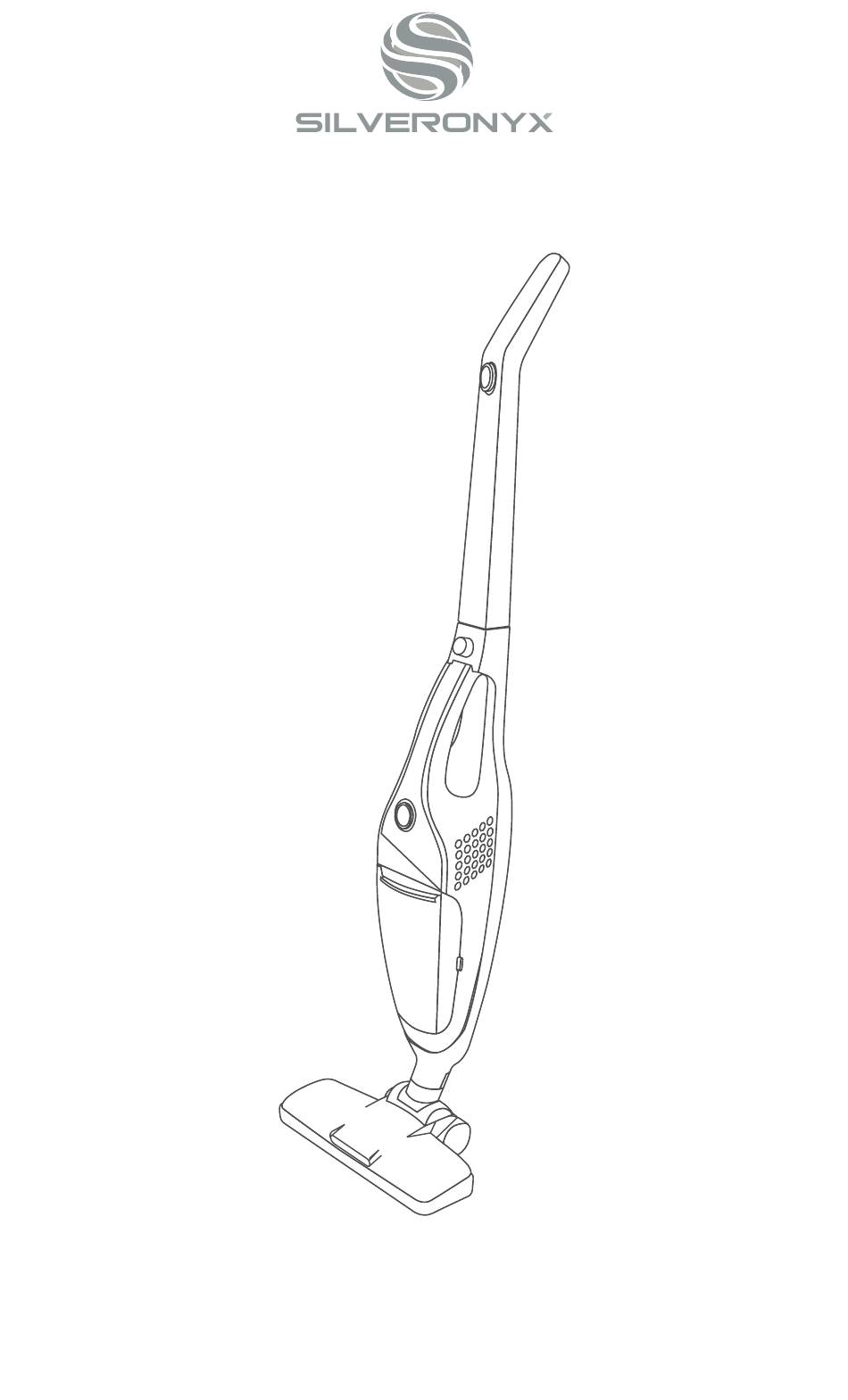

- Page 1 S7 CORDLESS STICK VACUUM Instruction Manual - Version 1.0 - Please keep in a safe place for reference.
-
Page 2: Important Safety Instructions
Important Safety Instructions IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. Do not use in rain or leave outdoors while raining. WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury. - Page 3 Important Safety Instructions Battery safety: do not incinerate batteries or expose to high This appliance includes Li-ion batteries, temperatures, as they may explode. Liquid ejected from the battery may cause irritation or burns. In an emergency situation contact professional help immediately. Leaks from the battery cells can occur under extreme conditions.
- Page 4 Components POWER Switch POWER Button CHARGING HANDLE Indicator DUST Collector HANDHELD RELEASE HANDLE AIR Outlet HANDHELD/ DUST Collector MOTOR Release Button SUCTION Inlet FLOOR BRUSH WHEELS LED Lamp ROTATING BRUSH CHARGING Port ACCESSORIES BRUSH Accessory CHARGING SEAT BASE CREVICE TOOL CHARGING SEAT BACK CHARGER...
-
Page 5: First Use
First Use ASSEMBLE CHARGER Insert power adapter into power input on bottom of charging base, then feed Slide charging back into charging through groove in base. base and snap into place. ASSEMBLE HANDLE Place nose of handheld unit in groove on base, and push handle until it snaps in place. -
Page 6: Operating The Vacuum
Operating the Vacuum Slide the POWER swich When in operation, the down once to turn on the charging indicator will be appliance in low speed. solid green. Slide again for high speed, and slide up to turn off. High The vacuum is Press the equipped with RELEASE... -
Page 7: Care And Maintenance
Care & Maintenance EMPTY DUST CUP Lift off dust collector and remove the filter. Press the dust collector release button to remove from the body of the handheld unit. DUST COLLECTOR Empty dust collector into Remove filter element trash bin. from filter screen. - Page 8 Care & Maintenance CLEAN BRUSH HEAD Remove the driving belt from the brush. Use a coin to unlock the brush compartment on the underside of the brush head as shown here. Driving Belt Pull brush to remove from Carefully cut away any brush head.
-
Page 9: Clean Filter
Care & Maintenance CLEAN DUST CUP CLEAN FILTER After removing the Before washing the filter screen and dust collector from filter element, carefully knock out the body, remove any dust or debris. the filter screen and filter element. The dust collector may then be washed with a mild soap and soft cloth/... -
Page 10: Troubleshooting
Troubleshooting Problem Battery Possible Cause Solution Indicator Appliance Charging 1. The charging plug may Attach the power adapter cannot be indicator does be loose in the socket. securely to the appliance. recharged. not light. 2. Power adapter is not securely attached to the appliance. -
Page 11: Technical Specifications
Technical Specifications Model S7-LI-BLK Battery 18.5V/2,200mAh Charging Time 5-6 hours Battery Charger Output 15V/800mAh Net Weight 3.1Kg Usage Time 40 min (low); 25 min (high) Power 120W Suction Power 4Kpa Airflow 20m3/s... - Page 12 SilverOnyx LLC 14807 S Heritagecrest Way, Ste B Bluffdale, UT 84065 801-341-2845 support@silveronyx.com Go to shop.silveronyx.com for replacement parts.
