Summary of Contents for TopflyTech TSR1-B

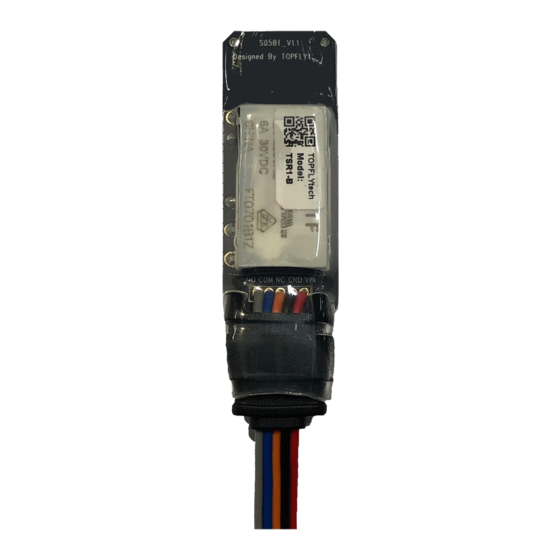

- Page 1 TOPFLYtech TSR1-B Wireless relay User Manual Revision 1.1...
- Page 2 Thanks for your purchasing of the high-quality IOT sensor from TOPFLYtech. Please read this user manual carefully before installation and operation. Information in this manual is the property of TOPFLYtech. Changes to the specifications and features in this manual may be made by TOPFLYtech without prior notice.
- Page 3 Contents QUICK REFERENCE ..........................4 PRODUCT SPECIFICATIONS ......................4 WORKING PRINCIPLES OF TSR1-B ....................4 INITIATE UNIT GUIDE ......................... 5 ............................5 OW TO INSTALL IT ....................5 OW TO CONNECT IT WITH YOUR PHONE ..................5 OW TO UPDATE THE FIRMWARE OF THE SENSOR ....................
- Page 4 Normally Open (NO) 3. Working principles of TSR1-B In default, The TSR1-B close the circuit between NC and COM. Once it gets the command to work, it will open the circuit between NC and COM and close the circuit between NO and COM.
- Page 5 If there is available latest version, it will show you a pop notice. 4.3.3 “Confirm” it to update the firmware. 4.3.4 Waiting for some minutes. In the process of updating, please don’t leave your phone far away from the sensor. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
- Page 6 4.4 How to configure it with your phone 4.4.1 Run the APP and click the “Config” button 4.4.2 Input the edit password. The password is “654321” in default. 4.4.3 will find configure box. support Name/Password/Broadcast cycle/Temperature alarm/Relay/Led/Reset setting by APP. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
- Page 7 4.5 How to connect it with TOPFLYtech tracker 4.5.1 Please make sure the device you want to connect has Bluetooth feature. 4.5.2 Please refer to the accordingly latest command list. Hardwired series please refer to <0x25> command list. OBDⅡ series please refer to <0x26>.
- Page 8 The Uploading Period Setting of Sensor. Temperature High Alarm Once meets this condition, it will trigger alarm. Temperature Low Alarm Once meets this condition, it will trigger alarm. LED Controller Switch. Reset Factory It will clean All setting. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
