RSI VIDEO TECHNOLOGIES videofied WMB Installation Datasheet

Product Summary

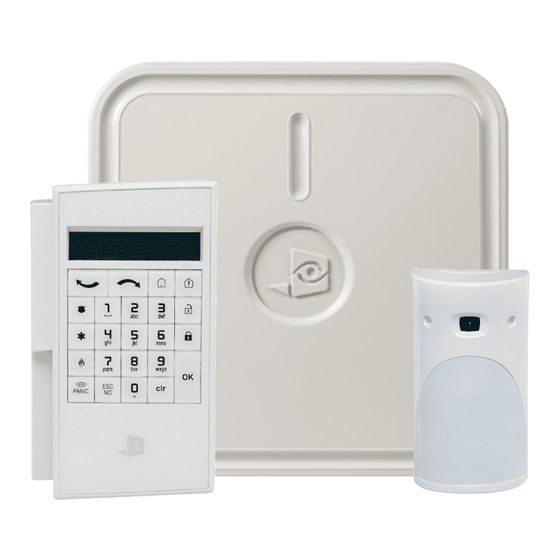

The Indoor Keypad Model WMB is designed for use in
configuring/programming and operating a Videofied
system. The keypad includes the following features:
Lithium batteries for long life.
>
32 Character Display (2 lines x 16 characters)
>
Built-in piezo for status and alarm sounds
>
Dual tamper function provides detection of both
>
wall and cover tamper.
Transmits check-in/status signal every 8 minutes.
>
> Built in Proximity Badge Reader
Programming/RF Testing*
1

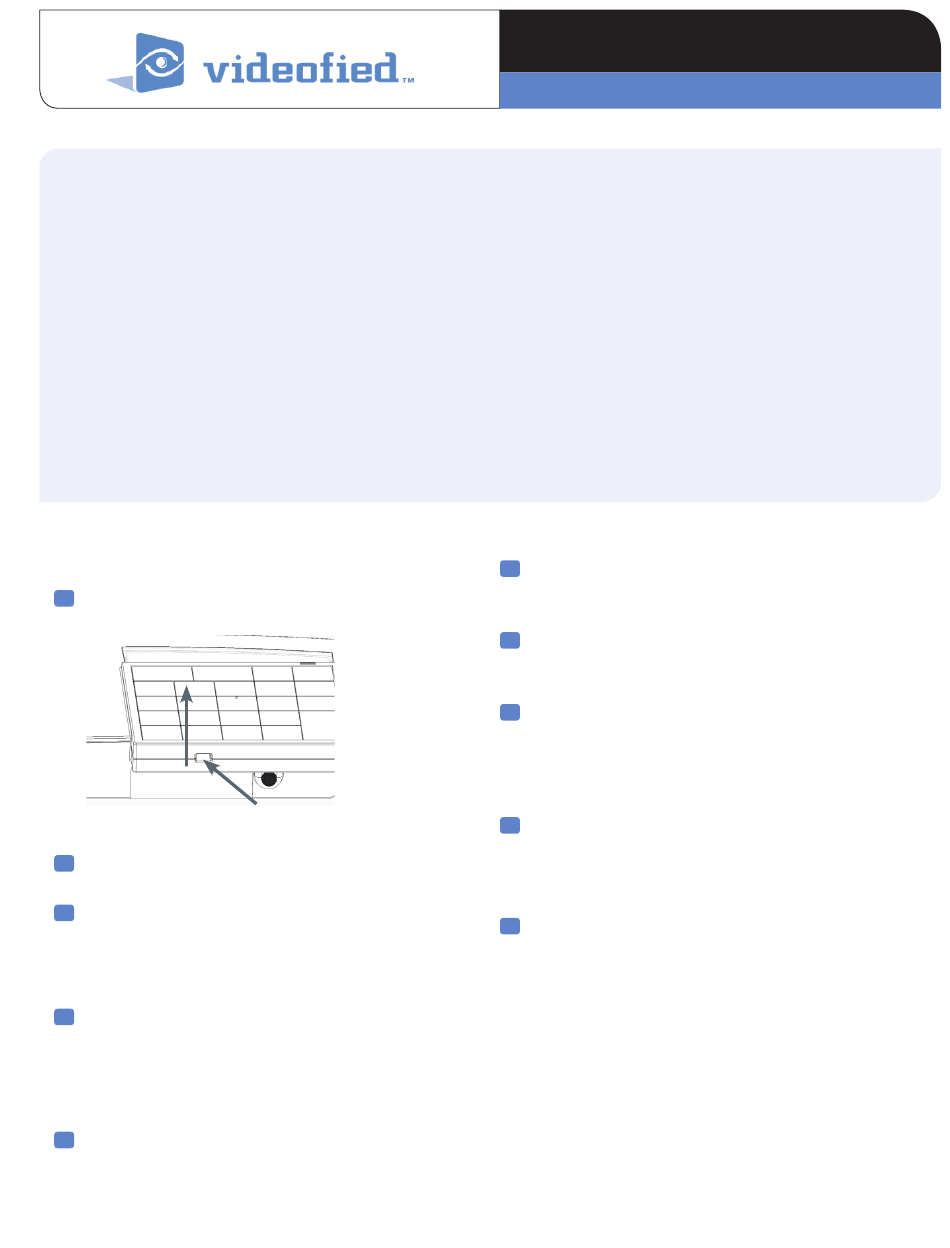

Open the casing by inserting a flat head screwdriver and
lifting UP. The case will slide apart.
2
Insert 3 (minimum) SAFT 3.6v Lithium AA LS14500
batteries.
3A
New Installation: Put the control panel into
keypad registration mode by pressing the
programming button of the control panel one time.
OR
Adding to existing system: Using a programmed
3B
alphanumeric keypad, proceed through menus until the
display shows ADD A NEW DEVICE. Press OK. The
display shows PRESS PROGRAM BUTTON OF DEVICE.
OR
Adding to existing system without a keypad: Refer to
3C
the installation manual of the control panel.
I N S T A L L A T I O N D A T A S H E E T
Made by RSI VIDEO TECHNOLOGIES
Installation Guidelines
For easier installation, programming and RF testing
TM security
should be completed before mounting the control panel and
devices.
Install the keypad and other system devices in the following
order:
Programming/RF Testing - Program keypad and all other
>
devices into the control panel and test RF communication
from each intended device location to the control panel.
Mounting - Mount keypad and devices at the tested location.
>
Press and release the programming buttons (CLR and
4
ESC/NO) on the WMB keypad. The keypad LED will flash.
Wait for keypad display to show KEYPAD# RECORDED.
Press OK. The display shows LANGUAGE: ENGLISH. Press
5
OK. (This prompt will only appear when performing a
new installation).
6
Display shows RADIO RANGE TEST? Press OK, the
keypad starts displaying the number of successful pings
to and from the control panel out of 9 (0/9 to 9/9).
Devices must be installed in a location with a stable 9/9 RF
test result to ensure reliable communication.
Press OK to end radio range test, then press Esc/No.
7
Note: If this is a new installation (3A), the keypad display
prompts other system configuration data. If adding a keypad to
an existing (operational) system, proceed to step 8.
8
When finished, exit from configuration mode.
Note: The control panel automatically assigns alphanumeric
keypads automatically to Area 1 (Entry/Exit delay)
*For complete details, refer to the control panel installation manual.
Keypad WMB
2129-WMBIN February 2013
www.videofied.com
