Toppan Forms ONTRASYS TAG Instruction Manual

ONTRASYS TAG BDT01-LC40 INSTRUCTION MANUAL
○Package content
・Ontrasys TAG (with external temperature sensor)
・Operation manual (this document)
○Parts Description
< Front View >

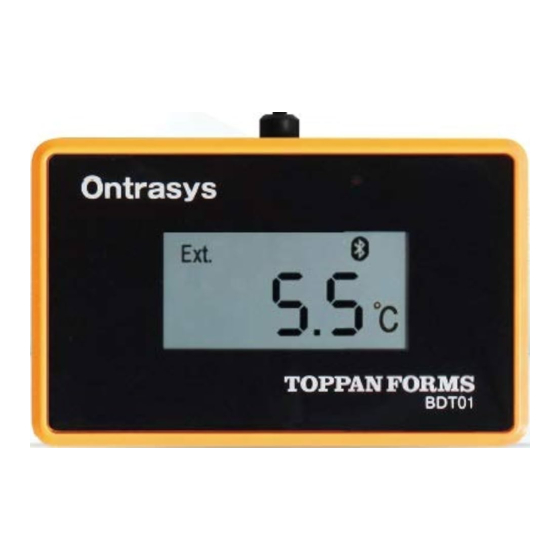

①External temperature sensor ②LED ③Temperature display ④External temperature ⑤Alert
○Features
This product has two communication ways:
BLE and NFC, which can correspond with
several systems. If you use BLE, you can
send a signal to all products automatically by
radio. And if you use NFC, you can send a
signal to an individual product reliably.
Also, Ontrasys TAG has an airplane mode,
you can attach it to goods sent by air.
(Certification RTCA/Do-160G Sec21.5 CategorhH)
○Specifications
Channel Internal temperature：1CH
External temperature：1CH
Range Internal : -20℃～70℃
External : -40℃～80℃
Accuracy ±0.5℃：0℃ to 65℃
±1.0℃：other range
Display LED
LCD
Memory
Interval
Settable at 1sec intervals, and can stop recording
Record When the memory is full, the first data is overwritten
Mode Usual mode, Airplane mode, Power saving mode
LCD Mode, Temperature, Alert of Temperature, etc
Connection NFC
※2
Battery
Battery life
Dimensions 94 × 59 × 15.3 mm（except boss）
Weight
Water proofing
Data collection
Temperature measurement interval：5 minutes
※1
Get the temperature log：one per day by BLE
The NFC transmitter is a slave device.
※2
The specifications shown on the above may be changed
without prior notice.
①
②
④
③
<Liquid Crystal Display >
⑥Airplane mode ⑦Usual mode ⑧Low battery alert ⑨℃ ⑩Mounting screws
BDT01-LC40
1
1
4096 data
1sec～10hours
、Bluetooth4.0(Bluetooth low energy)
Two alkaline AAA batteries
About 2 years
※1
About 88 g（with battery）
Grade IP64
Smart phones and tablets
・Two alkaline AAA batteries (inside the product)
⑥ ⑦ ⑧
⑤
⑨
NFC Communication
○Application
Please install the "Ontrasys Lite" by
accessing the following.
Android : Play Store
○Battery Replacement
When the symbol "
battery needs to be replaced.
Please send Ontrasys TAG to our
company (for a fee), or you can replace
the battery by using the "battery
replacement kit".
※Notice
If you replace the battery with the
battery replacement kit, the water proof
ability will be lower than IP64.
Applications・Specifications・Options・
Battery Replacement method etc.
Please see the Web site for detail.
https://www.toppan-f.co.jp/mechacool/ontrasys/
TOPPAN FORMS CO., LTD.
1-7-3 Higashishinbashi, Minato-ku, Tokyo
⑩
< Back View >
BLE Communication
Ontrasys TAG
iOS : App Store
"appears, the
105-8311, Japan
Solution sales department
TEL. 03-6253-5705
