REMINDER
CALL 1-888-755-4497
BEFORE RETURNING TO STORE.

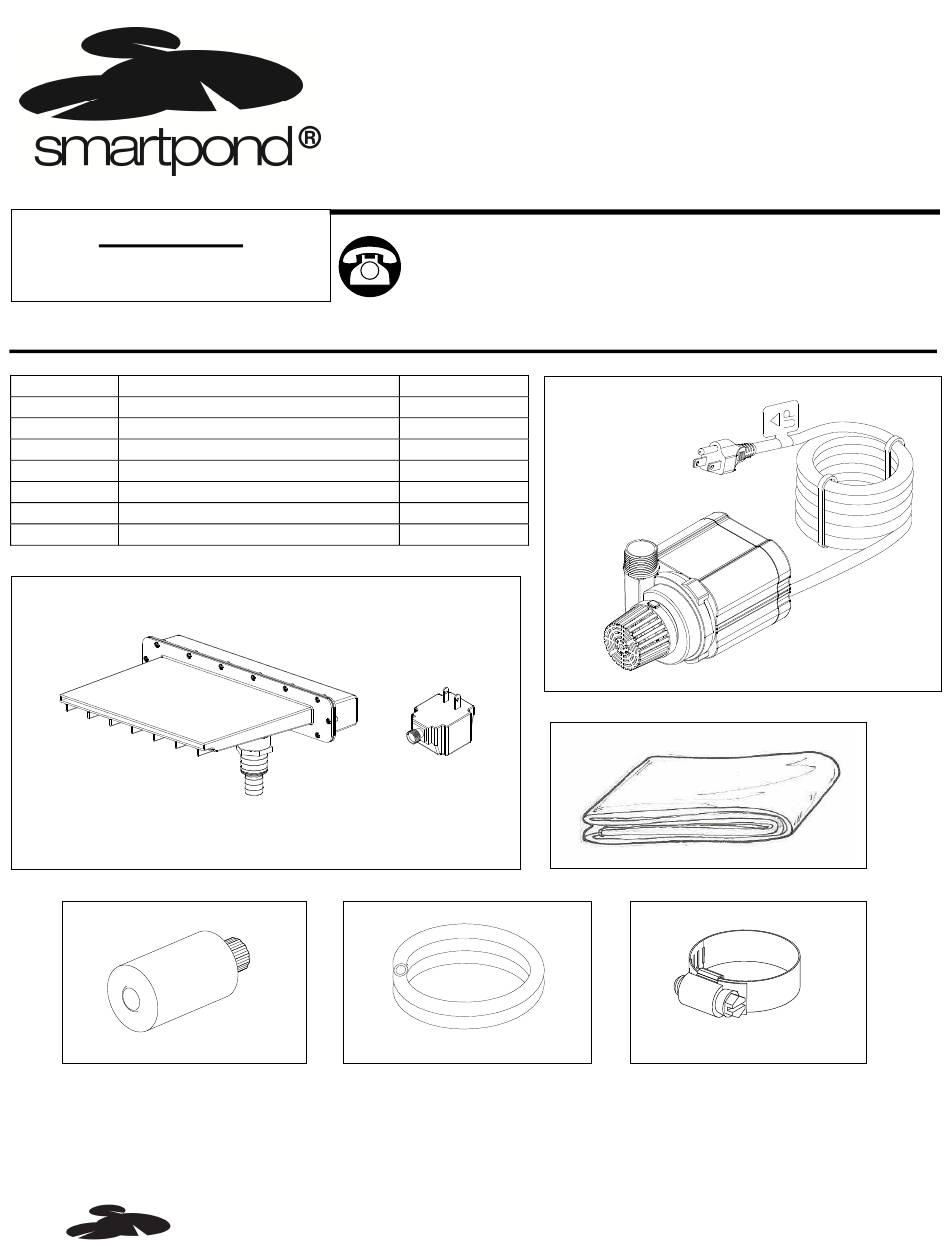

PACKAGE CONTENTS
Part
A
B
C
1" ID tubing (10 feet)
D
E
Illumifalls spillway
F
G
E
B
PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
Illumifalls Kit with Flexible Liner
Description
Pump
Prefilter
Liner
Hose clamp
Transformer
C
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at customercare@smart-pond.com.
Quantity
1
1
1
1
1
1
1
G
D
MODEL/MODELO #AISB12KR
A
F
Advertisement
Table of Contents
Related Manuals for Smartpond AISB12KR
Summary of Contents for Smartpond AISB12KR
- Page 1 Illumifalls Kit with Flexible Liner MODEL/MODELO #AISB12KR REMINDER Questions, problems, missing parts? Before returning to your retailer, call our customer service department at CALL 1-888-755-4497 1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday, or BEFORE RETURNING TO STORE. email us at customercare@smart-pond.com.
- Page 2 WARNINGS AND CAUTIONS – PUMP WARNING • Risk of electrical shock. This pump is supplied with a grounding conductor and grounding–type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
- Page 3 OPERATION INSTRUCTIONS 1. Select a level location to build the Illumifalls kit. Begin building the kit by placing the stones in the desired arrangement. It is very important that the stones are level, so be sure to check that the structure is level from front to back as well as left to right.
- Page 4 6. Connect the tubing to the pump and place it in the tub. Fig. 6 Fig. 6 7. Route the power cord of the pump and tubing through the gap between the two stones. Fig. 7 Fig. 7 8. Place a layer of stones on top of the liner. Fig. 8 Fig.
- Page 5 11. For maximum water flow, cut the adapter as shown using a hacksaw. Fig. 11 Cut ring Fig. 11 12. Connect the tubing to the inlet of the spillway using the adapter. Connection method (a) Slip the hose clamp on to the tubing but do not tighten it. Fig. 12 NOTE: The spillway has two ports to install the inlet.
- Page 6 15. Cut the stone that goes on the top of the spillway before building the next layer of stones. Or use a retaining wall block cap in place of the cut and add an inch of roofing shingles under the spillway. Fig.
- Page 7 CARE AND MAINTENANCE – PUMP • Clean the pump with filter regularly depending upon the environment in which it is operated. Clean the pump when it is visibly soiled or when a drop in performance is detected. • Before cleaning, always disconnect the pump from the power source. •...
- Page 8 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday. Part Description Hose clamp Transformer Inlet screen Impeller housing Impeller assembly O-ring Waterfall gasket Adapter gasket Adapter Filter pad Filter holder Coupler Printed in China PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
