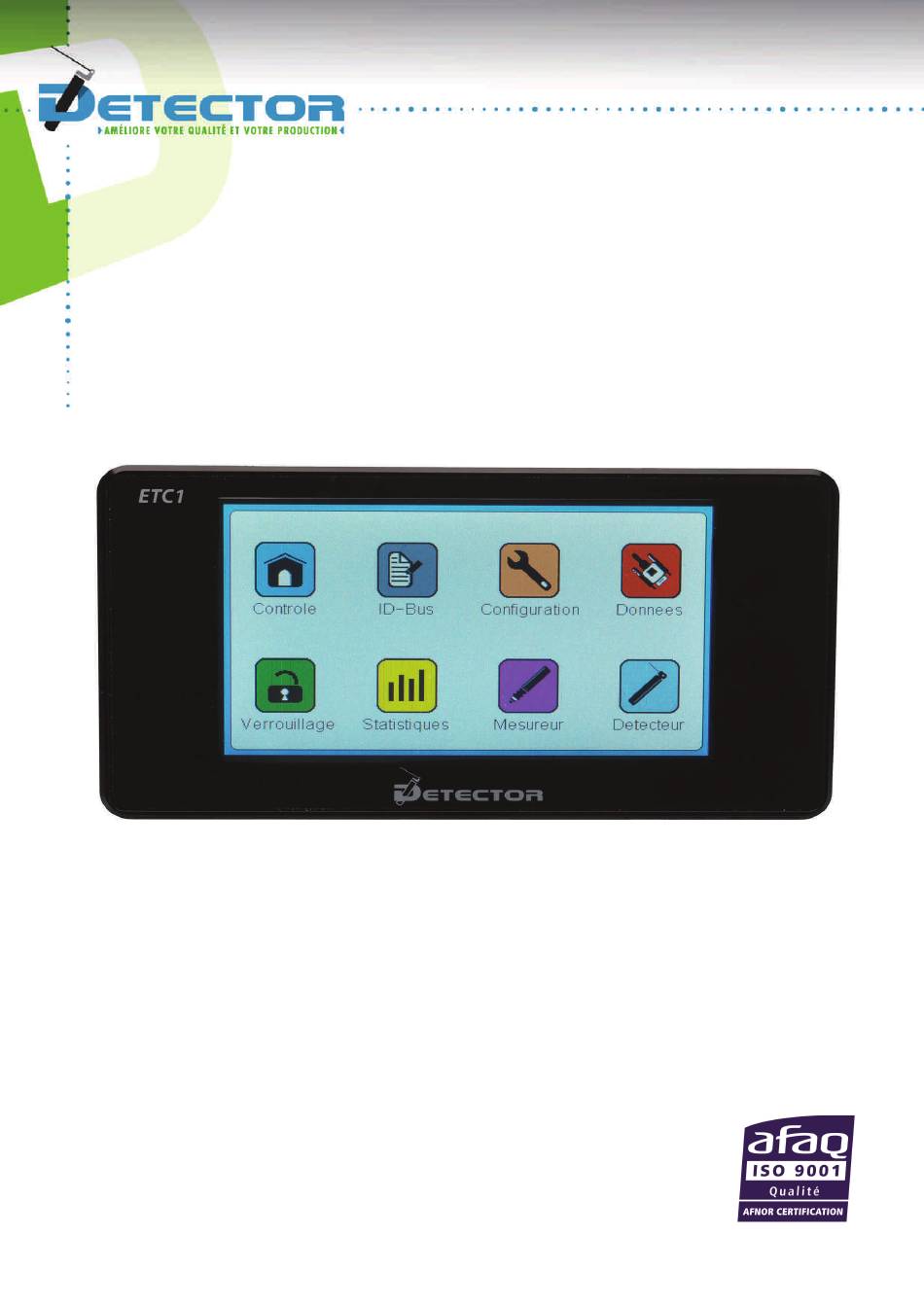

- Page 1 English Programming Manual Touchscreen + conditioner Broken tool detector type 404 www.detector-france.com PROG404CDT-404-2-EN – Index B...
-
Page 2: Table Of Contents
Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English 1. Introduction page 2 2. Identification of the conditioner page 3 3. Parameterization of the detector page 6 4. Reference by teaching page 11 5. Additional settings page 13 6. Reset Factory settings... -
Page 3: Introduction
+33 450 037 998. The CDT-404-2 conditioner is designed to control one or two 404 broken tool detectors. “Double direction” means that in the same cycle the detector can control by rotation in one direction and then in the other direction. -
Page 4: Identification Of The Conditioner
Flashing blue light: the conditioner is not identified with the touch screen. The detector cannot operate until the identification is made. Fixed blue light: The conditioner is identified by the touch screen. The detector can be operated and parameterized. - Page 5 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English PRESS ICON The home page appears: PRESS ICON The identification page appears: The settings on this page are empty because the identification has not yet been made. To identify the conditioner on the touch screen, simply open this page and press the ID button on the upper face of the conditioner.
- Page 6 Software version of the conditioner In order to verify that the detector is properly connected, the needle must be moved from side to side to see the sensor value. – The sensor value changes in + and in –...
-
Page 7: Parameterization Of The Detector
The home page appears : PRESS ICON Detector input number – Each detector Here is the setting page of the detector - 1st Level: can be set differently. This setting is present for each level. Direction of rotation of the first control:... - Page 8 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Direction of rotation of the detector : Clockwise Anticlockwise The direction of rotation is defined by positioning itself in front view of the detector. Control mode : The system allows for 2 configurable control modes avoiding inverted wiring.
- Page 9 The Associated parameter allows the controls to be continuously, one after the other, from the top control. At the top control, the detector goes to the left on the first tool and then without stopping by right on the second tool to eventually return to the origin.
- Page 10 YES, the detector will reduce its speed and torque when the needle reaches the tool. The detector set to NO can detect a tool of a minimum of 0.5mm without breaking it Tolerance level : This parameter is used to adjust the degree value of the triggering of alarms. This parameter affects the Control 1, Control 2 and Chip only alarms, but not the Origin alarm.
- Page 11 Tool Diam.1 : This setting makes it possible to inform the diameter of the tool to be controlled, always with the aim of facilitating the identification of the detector whose alarm has triggered. The information for this parameter is optional.
-
Page 12: Reference By Teaching
4. Reference by teaching The third step is to make a position reference. After setting the detector, the machine waits for a reference to be made in order to function. This is visible with the control light 1 which is in red:... - Page 13 PRESS THE BUTTON The detector then rotates at idle speed to the tool, thus enabling the system to know the angular position of the tool (tool reference). When touching the tool, the needle returns to its original position. The reference procedure is completed.
-
Page 14: Additional Settings
Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English 5. Additional settings Here is a description of the settings CONFIGURATION : PRESS ICON The home page appears : PRESS ICON The configuration page, General tab appears : Language This setting is used to change the text language of the touch screen. French, English,... - Page 15 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English The configuration page, General tab Logical outputs This parameter makes it possible to configure according to 4 states acting on the logic outputs when there is manipulation in the menus: - Inactive 60S : The machine will not stop automatically when entering the setting mode.
- Page 16 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Here is a description of the settings DATAS : PRESS ICON The home page appears : PRESS ICON The Datas page appears : RS232 or RS485 communication protocol Speed of communication Type This parameter defines the communication protocol with the connected element via the SUB-D9 COM on the back of the display.
- Page 17 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Here is description of the settings LOCKING : PRESS ICON The home page appears : PRESS ICON The locking page appears : Select Yes to lock settings Enter code to lock or...
- Page 18 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Here is lock code change procedure : PRESS ICON Press the box PRESS THE BOX This message appears : PRESS THE BUTTON This message appears : Page 17/24 PROG404CDT-404-2-EN – Index B...
- Page 19 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English PRESS THE BUTTON This message appears : Enter the original code 0000 with the numéric keypad Validate by Enter This message appears : PRESS THE BUTTON Enter the new code with the...
- Page 20 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English This message appears : PRESS THE BUTTON Confirm the new code by entering it a second time with the numeric keypad Validate by Enter This message appears : PRESS THE BUTTON The lock code has been changed.
- Page 21 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Here is the lock procedure : PRESS ICON Press the lock setting box PRESS THE BOX This message appears : PRESS THE BUTTON PRESS THE BUTTON Page 20/24 PROG404CDT-404-2-EN – Index B...
- Page 22 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Enter the code with the numeric keypad Validate by Enter The screen is now locked. When you want to enter in the menu, the code will be requested. Page 21/24 PROG404CDT-404-2-EN – Index B...
- Page 23 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Note : In locked state, when you enter in the menu, the code is requested. By entering the code you access the menu, but in any case you unlock the screen permanently. When you return to the control page and want to enter in the menu again, the code will be asked again.
- Page 24 Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English Enter the code with the numeric keypad Validate by Enter The screen is now unlocked. Page 23/24 PROG404CDT-404-2-EN – Index B...
-
Page 25: Reset Factory Settings
Programming Manual Conditioner CDT-404-2 / Touchscreen ETC1 English 6. Reset factory settings Here is the procedure if you want to restore the default factory. This restore only affects the following parameters: Detector : Rotation direction = Anticlockwise (default value) Control Mode = Presence of tool (default value) - Page 26 Manufacturer Detector France 36 route des lacs – PAE des Jourdies 74800 Saint Pierre en Faucigny Tél : +33 (0)450 037 998 Fax : +33 (0)450 036 792 Email : commercial@detector-france.com www.detector-france.com PROGCDT-404-2-EN – Index B...
