morse 400AM-60 Operator's Manual

The Specialist In Drum Handling Equipment
Contents
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Assembly Instructions. . . . . . . . . . . . . . . . . . . . 5
Operating Instructions. . . . . . . . . . . . . . . . . . 6
Maintenance. . . . . . . . . . . . . . . . . . . . . . .
Parts Lists and Diagrams. . . . . . . . . . . . . 7 - 9
Recommended Spare Parts. . . . . . . . . . . .

Receiving Procedures

Every Morse drum handler is inspected prior to shipping.
However, damage may be incurred during transit.
• Check for visible damage. If you choose to accept dam-
aged freight, always sign noting the damage on the BILL
OF LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock
for this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock
result in additional freight charges. Residential delivery fees,
inside delivery fees, re-delivery charges, and lift gate services
will be added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects
in workmanship or materials for TWO YEARS when used
properly within its rated capacity. Warranty does not cover
wear from normal use or damage from accident or abuse.
Motors and other purchased parts carry the warranties of their
manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice.
Return freight must be prepaid.
In all instances, liability is limited to the purchase price paid
or to repairing or replacing the product. Customer assumes
liability for any modifications, unauthorized repairs or parts
substitution.
www.morsedrum.com
Copyright 2010 - Morse Mfg. Co., Inc. Form PL400M-60 (0409-1110) (Updated March 12, 2018 11:38 AM)

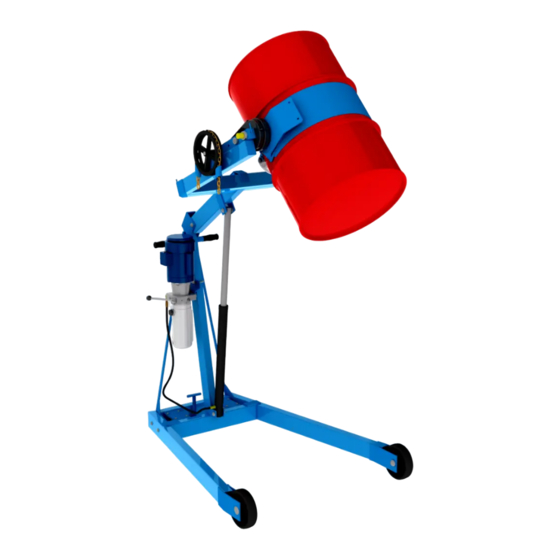

MODEL 400AM-60
Hydra-Lift, 60", with Spark Resistant Parts,
Operator's Manual
for Morse Hydra-Lift Drum Karrier
Page
with Spark Resistant Parts,
Manual Lift and Tilt
Model 400AM-60
Serial Number 0409 to 1110 (MMYY)
6
10
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and efficiency, a high degree of respon-
sibility must be placed upon the machine operator to follow
safe practices, based primarily on common sense, upon which
true safety depends.
Failure to follow the safety precautions in this manual can
result in personal injury or property damage. Observe the
same precautions as with similar machinery where careless-
ness in operating or maintenance is hazardous to personnel.
Carefully read the safety precautions below and throughout
this manual.
Manual Lift & Tilt
1
