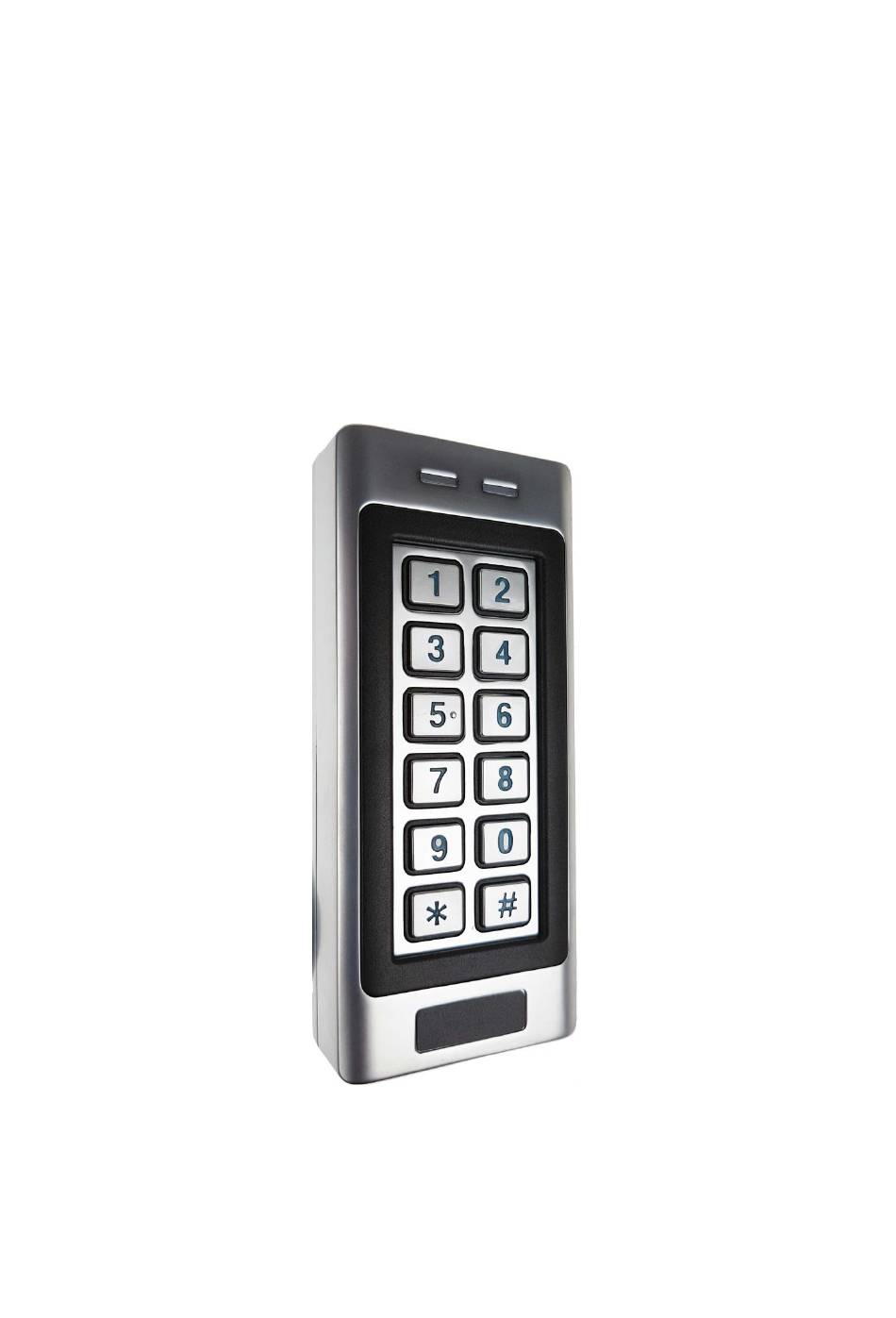

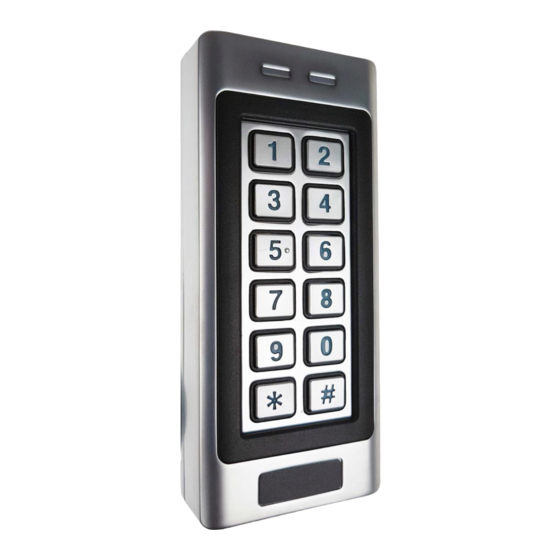

- Page 1 SK401-E External Stand-Alone Keypad & Proximity Card Reader User Manual...
- Page 2 The SK401-E has many extra features including block enrollment, anti-tamper alarm & backlit keypad buttons These features make the SK401-E an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories,...
-
Page 3: Specifications
Operating Humidity 10% - 90% Non-Condensing Physical Zinc-Alloy Enclosure Surface Finish Powder Coat Dimensions H:129 x W:55 x D:22 (mm) Unit Weight 470g Package contents SK401-E Keypad Diode IN4004 (For relay circuit protection) Self Tapping Screws Wall Anchors Screw Driver &... -
Page 4: Installation
INSTALLATION Remove the back cover from the unit Drill 2 holes (A,C) on the wall for the screws and one hole for the cable Knock the supplied rubber bungs to the screw holes (A,C) Fix the back cover firmly on the wall with 4 flat head screws ... -
Page 5: Connection Diagram Examples
Comments: Relay 2 can be used to operate a doorbell if there is no need to operate a second door. The wiring to connect the doorbell is via NO2 and COM2. Press #, the SK401-E will send out a switching signal to the... -
Page 6: Function Description
Pin input is re-made Master Card The SK401-E can use Master Cards to program user cards/fobs into and out of the system. There are two pre-programmed Master Cards (an Add Card, and a Delete Card) to allow rapid card enrollment. They are for... -
Page 7: User Settings
# key, in order to be granted access • Card + PIN: The User must first present a valid card/fob to the SK401-E and then enter their PIN code followed by the # key, in order to be granted access... - Page 8 To add Card Users. (Method 1) Read card This is an easy way to enter Cards can be added continuously without exiting programming mode cards with auto-generated ID numbers The ID number will start from 1 if no user has been programmed To add Card Users.
-
Page 9: Toggle Mode
Card and PIN Mode To set users for relay 1. 4 To Add a card and Pin user Add the card as for a card user (The PIN is any four-six digits Press * to exit from the programming mode between 0000 &... - Page 10 Door, Alarm, Acoustic Signal, Door Bell Settings Door Open Detection Door Open Too Long (DOTL) warning . When used with an optional magnetic contact or built-in magnetic contact of the lock, if the door is opened normally, but not closed after 1 minute, the internal buzzer will bleep automatically to remind people to close the door and continue for 1 minute before switching off automatically Door Forced Open warning.
-
Page 11: Reset To Factory Default
3. Release the button until both LED’s shine (Parts 4 & 5 must be undertaken within 10 seconds) 4. Present any 125KHz proximity EM card or the Master Add Card (provided) to the SK401-E. This card is now the Master Add Card 5. - Page 12 SK401-E - Simplified Instruction Function Description Operation Enter the Programming Mode * (Master Code) # (666666 is the default factory master code) 0（New Master Code）#（Repeat New Master Code）# Change the Master Code (code: 4-6 digits) Add Card User 1 (Read Card) # ( for relay 1)
