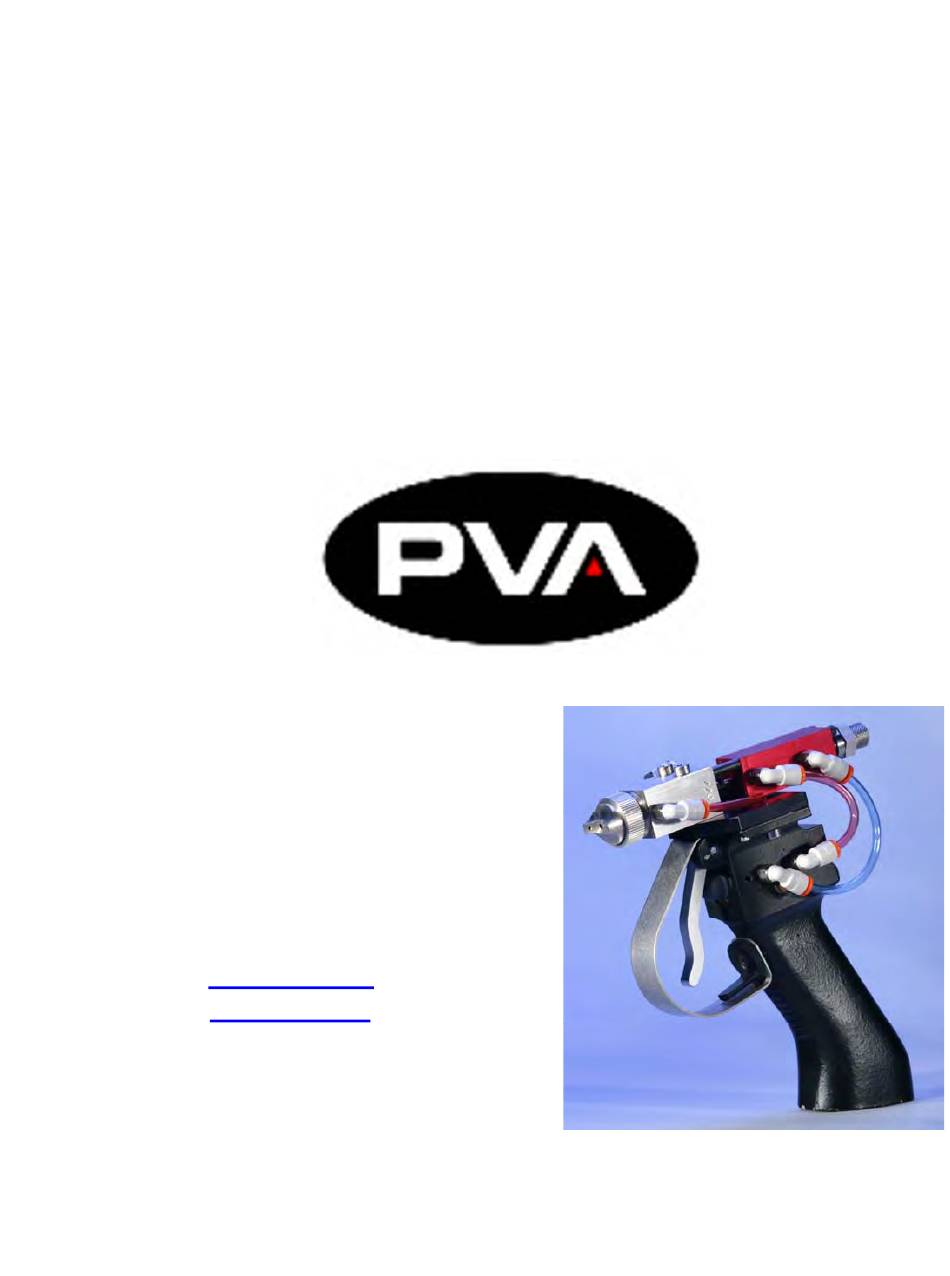

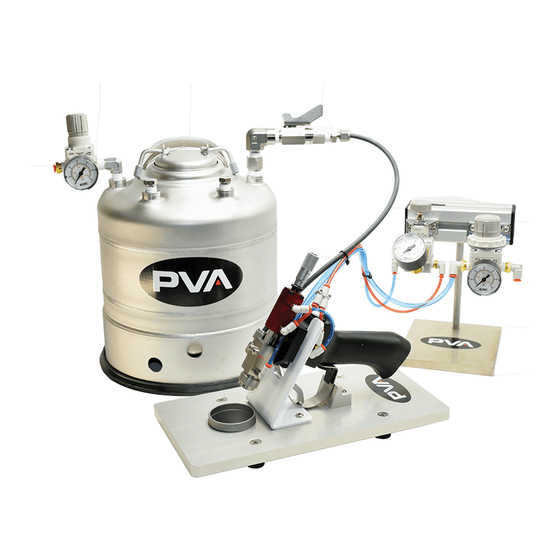

- Page 1 FCS300-R-2G-H MANUAL COATING SYSTEM Version: 163-03535 Operation Manual 6 CORPORATE DRIVE HALFMOON, NY 12065 PHONE: 518-371-2684 FAX: 518-371-2688 info@pva.net www.pva.net...
-
Page 2: Theory Of Operation
This will assist in familiarizing you with the product and ensure a successful installation. As always, if any questions or problems arise, do not hesitate to contact PVA’s Service Department for support. This department can be reached at PVA headquarters by telephone at (518) 371-2684. -
Page 3: System Operation
Safety Due to fluid contents being under pressure eye protection is recommended for operators. Refer to MSDS sheets on fluid being dispensed for and other precautions. A grounding wire should be connected to the stainless steel pressure tank to remove esd. Setup Refer to assembly drawing 163-03535 for part reference numbers. - Page 4 Adjusting Settings There are several settings that can be adjusted to fine tune the spray pattern. These settings are determined by the fluid viscosity, and desired pattern and thickness of the operator. 1. Based on the viscosity, the air pressure regulator of the fluid tank (9) should be adjusted to supply an adequate flow of fluid to the spray valve.
-
Page 5: Spare Parts
Spare Parts Kit for FCS300-R Valve Contact your PVA sales representative for pricing Optional Accessories To optimize your manual conformal coating system, PVA has developed a few accessories that can be used to assist the operators. Part # PV106-S... -
Page 6: Complete System
Air Fitting, ¼”mnpt x ¼” tube, 90’ elbow TIUB07BU Air Tubing, ¼”od Blue 8’ft KQ2L07-32A Air Fitting, 10-32 x ¼”od tube, 90’ elbow PVA-2G 2-Gallon Stainless Steel Pressure Tank 4FSC6N-316 Fitting, 3/8”fnpt x ¼” tube TFETB01870250B ¼”od UV Safe Teflon Tubing 8’ft... - Page 8 Unauthorized repair or modification of the enclosed product, and/or the use of spare parts not directly obtained from PVA (or from factory authorized dealers) will void all warranties.
