Summary of Contents for provita sens07vest

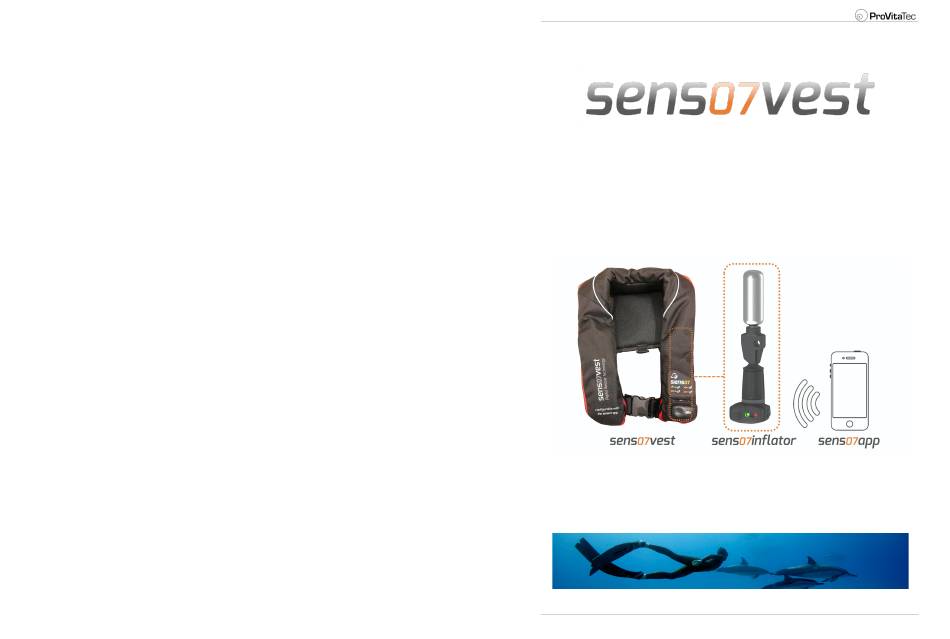

- Page 1 User Manual sens07vest User Manual Mai 2020 May 2020 Page 1...
- Page 2 Check sens07vest components ..................26 Choosing the right CO2 cylinder & max. depth ..............27 Perform Self-Test ......................28 Location of the manual handle ..................29 Put on the sens07vest correctly ..................29 Rinse sens07vest after diving ..................29 Page 2 May 2020...
- Page 3 About sens07vest sens07vest components Overview The sens07vest is an electronic floating device to return free diver and spear fisher back to the surface in case of danger. The core component of the sens07vest is the sens07inflator which sens07vest constantly monitors drowning risk based on user pro- is the electronic inflator module.
- Page 4 User Manual sens07vest User Manual sens07vest sens07 inflator components Activation on water contact The sens07 inflator immediately starts its auto-supervision when wa- ter can be “sensed” by the integrated contact-free water sensors. When taking out of the water, the sens07 inflator automatically goes into a power-saving “ready”...
- Page 5 2 seconds. Suspend upcoming inflation in water The smartphone is not required to operate the sens07vest or to A suspend button allows the user to switch between the already uploaded profiles.
- Page 6 2.2 Suspend upcoming inflation while diving Switching between profiles Pressing the self-test button when the sens07vest is submerged Pressing the button in dry condition for more than 2 seconds will will suspend (freeze) the risk inflation countdown for the specified switch to the next profile specified in the sens07 app.
- Page 7 User Manual sens07vest User Manual sens07vest 2.4 Replacing actuator module & CO2 cylinder 3 LED signals The inflator head has 2 front LED for important information and 3 back LED for system information. Main LEDs on the front side The green and red front LED signal the following information: 3.1.1...
- Page 8 User Manual sens07vest User Manual sens07vest 3.1.3 Blackout warning 3.2 System LEDs on the back side • • • • • • • • • Blackout warning • • • • • • • • • After emersion in Blackout-mode, sens07 blinks fast with both LEDs indicating the need for immediate user action (press the button to con- firm consciousness).
- Page 9 The sens07-app allows to manage up to 3 profiles defining the way the Apple App store or Android Play store. how sens07vest is operating. The profiles are transferred wireless A registration code for private or cooperate users is required before using flickering light flashes from the smartphone screen which are using the sens07app.
- Page 10 User Manual sens07vest User Manual sens07vest 4.3 Tab 1: “Profiles” 4.3.1 Profiles configurator (basic) The drowning algorithm is based on 3 depth zones: Safe zone, Diving zone and Inflation zone. A simple inflation countdown starts at the specified value when entering into the Div- ing Zone.
- Page 11 User Manual sens07vest User Manual sens07vest 4.3.2 Profiles configurator (Blackout) 4.3.3 Profile switcher The profile of type "Blackout" requires manual confirmation of con- sciousness after the dive within a specified time. The drowning algorithm is based on 4 depth zones:...
- Page 12 User Manual sens07vest User Manual sens07vest 4.3.4 Start transfer Ensuring identical profile data in the app and sens07 inflator The sens07 app can’t read out data from the inflator head. There- fore it is important that you confirm a successful parameter trans- fer on the sens07 app.
- Page 13 User Manual sens07vest User Manual sens07vest 4.4 Tab 2: “Timer” (optional) 4.5 Tab 3: “Info” This tab shows basically this manual. 4.6 Tab 4: “Settings” The second tab offers timed inflation or inflation countdown, inde- pendent of the sens07 sensors.
- Page 14 Verify CO cylinder compression and excessive weights. Therefore there is a point where sens07vest can’t bring the diver Unscrew the CO cylinder and verify that there is back to the surface anymore.
- Page 15 The cord is equipped with a Velcro tag near to the red handle. This Velcro tag must be attached to the Velcro closure on the sens07vest, so that the handle is always available on the same, specified position. Pressing the button in dry condition (outside of the water) will...
- Page 16 User Manual sens07vest User Manual sens07vest 6 Configuration examples The following examples illustrate the configuration options. 6.2 Inflation due to exceeded diving depth Inflation due to exceeded diving time Basic Configuration Mode Safe zone: Inflation countdown: 2 min. Diving zone: 20 m Safe zone reset: 1 min.
- Page 17 There is no other option to stop upcoming inflation except getting out of the water in time. Please note that the water sensor needs some seconds to detect missing water. After pressing the button (confirming no blackout) the sens07vest is ready for the next dive. Page 32...
- Page 18 User Manual sens07vest 7.2 Unsuccessful self-test An unsuccessful self-test will not stop the sens07 inflator to per- form its normal operation as far technically possible. All features (like LED signals, drowning risk calculation, optical data transfer, blackout protection and even firing the activator module for infla- tion) are still enabled and performed as far as possible.
