Summary of Contents for AbodeFit WalkSlim 920

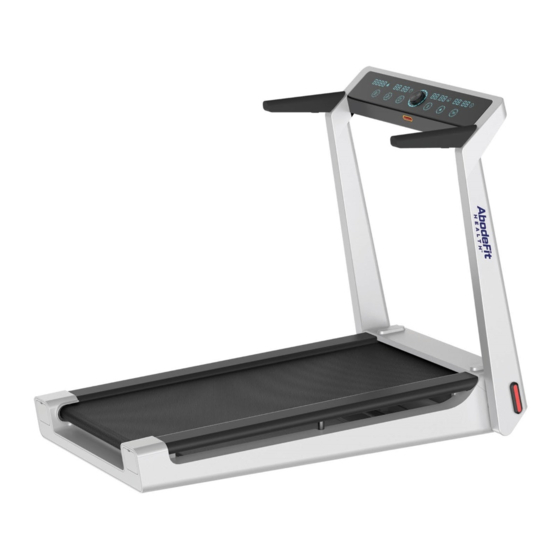

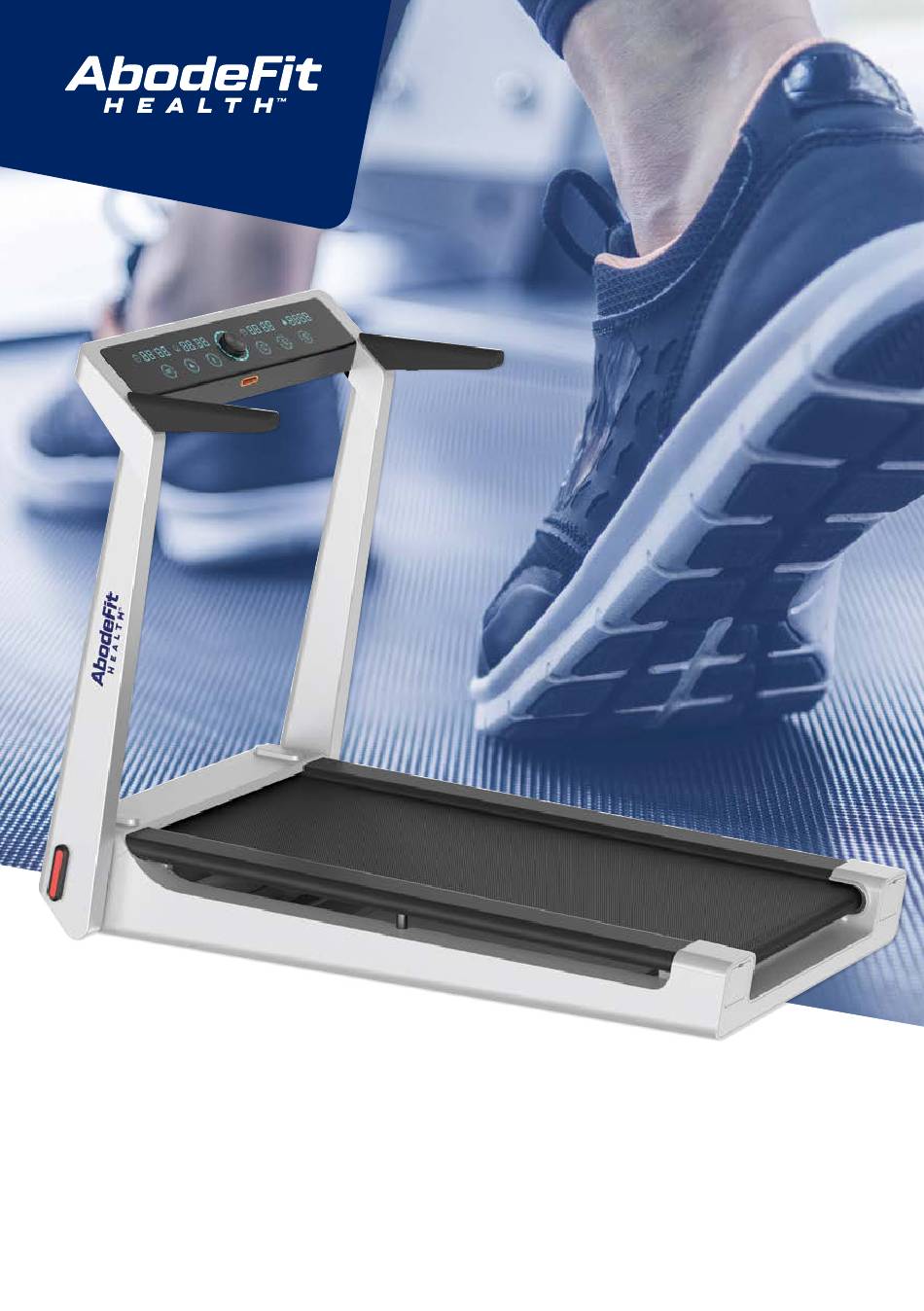

- Page 1 WalkSlim 920 TREADMILL • USER MANUAL...
- Page 2 Congratulations on your purchase of the AbodeFit Health™ WalkSlim 920. Please read the user manual carefully before using, pay special attention to the safety precautions and keep for future reference. Please contact AbodeFit Health’s warranty provider, Vitality 4 Life, (details on back page) if any malfunction occurs and a qualified technician will assist you.
-
Page 3: Table Of Contents
Safety Precautions Parts and Features Operating Instructions Using your Walkslim 920 Warm Up Exercises Maintenance Troubleshooting Warranty... -
Page 4: Safety Precautions
Safety Precautions • The WalkSlim 920 is only suitable for adults over the age of 18. It is not a toy and should not be used by children. • The WalkSlim 920 is for personal use only and is unsuitable for professional training, testing or medical purposes. - Page 5 Keep a distance of 1 metre between the treadmill and the rear space and on both sides. • Unplug the WalkSlim 920 when it is not likely to be used for long periods of time. • Do not let cord contact any other parts such as tread belt.
-
Page 6: Parts And Features
Parts and Features Phone Holder Touch Screen Foldable Hydraulic Handles Handle Safety Key Insert Release Button Silicone Lubricating Oil & Allen Key Tread Belt Footrail 02 Structure and Function Diagram 2. Introduction of display screen Touch Screen Time Distance Speed Calories HIIT Walking... -
Page 7: Operating Instructions
Operating Instructions STARTING YOUR WALKSLIM 920 • First find the right spot for your WalkSlim 920 , ensuring you choose a location that is flat and open, free of sharp objects, with a sufficient 1 metre clear space around the treadmill. - Page 8 Inappropriate or excessive training will n health. 1. Place the Walkslim 920 on a level surface and lift the frame up from the side of the treadmill. ove the machine from the package, and 1.
-
Page 9: Using Your Walkslim 920
4. Before starting your training, insert the Safety Key into the Safety Key Insert and clip the other end to your clothing. 5. Press the Function Dial and the Walkslim 920 will start slowly at the minimum speed 04 Learn to Use the Treadmill of 0.8km/hour. -
Page 10: Warm Up Exercises
Warm-Up Exercises It is recommended to warm up for 5 to 10 minutes before exercise to prevent sports injuries. Refer to the following stretching exercises and repeat after your treadmill exercise program. 1. Stretch down: Keep knees slightly flexed and your body slowly bent forward, relax your back and shoulders, touch your toes with your hands as much as possible, and keep for 10~15 seconds, then relax. - Page 11 • S ace the machine in a stable • If you prefer to store it upright, the WalkSlim 920 comes with a base which holds up to 110kg. 3. Lubricate the running belt • S • L •...
-
Page 12: Maintenance
• Disconnect the power cord when the WalkSlim 920 will not be used for a long time. • Do not store the treadmill in the bathroom or outside and avoid areas with a lot of moisture. - Page 13 Motor Belt Adjustments While each treadmill motor belt has been finely adjusted, after transport and installation it may need to be adjusted again and also throughout the life of the treadmill. Adjustment Steps: Motor balance Belt tightness 1. Adjust the balance of the motor adjustment bolts with an allen key.
-
Page 14: Troubleshooting
Troubleshooting The treadmill is • Make sure the power cord is properly secured into the power not working outlet and that the switch is turned to the ‘ON’ position. • Check the Safety Key is inserted in the correct position. The tread belt is •... - Page 15 2. If the belt is still not in the middle repeat the action until adjusted to a central middle position. 3. After adjusting the belt to the middle, start the WalkSlim 920, set to the maximum speed and observe the tread belt to ensure that is running smoothly.
- Page 16 Error Fault Description Solution Code Communication Unplug the WalkSlim 920, leave for several minutes Issue and then restart. If it does not restart please contact our Customer Service Centre. Stall Protection Turn the power off, unplug and leave for one hour then restart.
-
Page 17: Warranty
Warranty Period: Lifetime Frame, 5 Years Motor, 2 Years Parts & Labour. Vitality 4 Life are the warranty providers for AbodeFit Health™ products. Vitality 4 Life warrant this product to be free from defects in materials and workmanship while in normal domestic use for a period of five years on the motor and two years on other parts (with the exception of a life warranty on the frame) from the original date of purchase. - Page 18 Support & Service Centres Contact your local distributor for warranty & service Vitality 4 Life – Australia & New Zealand E: support@vitality4life.com W: www.vitality4life.com.au Vitality 4 Life – United Kingdom E: support@vitality4life.co.uk W: www.vitality4life.co.uk Vitality 4 Life - United States E: support@vitality4life.com W: www.vitality4life.com Vitality 4 Life –...
