a stereo unbal line input at -10 dBV level. The No 1, 3 and 4 line inputs are equalized in level, then
these 3 left signals are mixed together, and 3 right signals are mixed together, controlled by the Line
Gain pot, then the volume control. The No. 2 mic input signal is equalized in level, controlled by the Mic
Gain pot, not controlled by volume control (to prevent feedback from speakers to mic), split evenly to
left and right channels, and mixed to the main left and right channels. Volume control is a standard 10

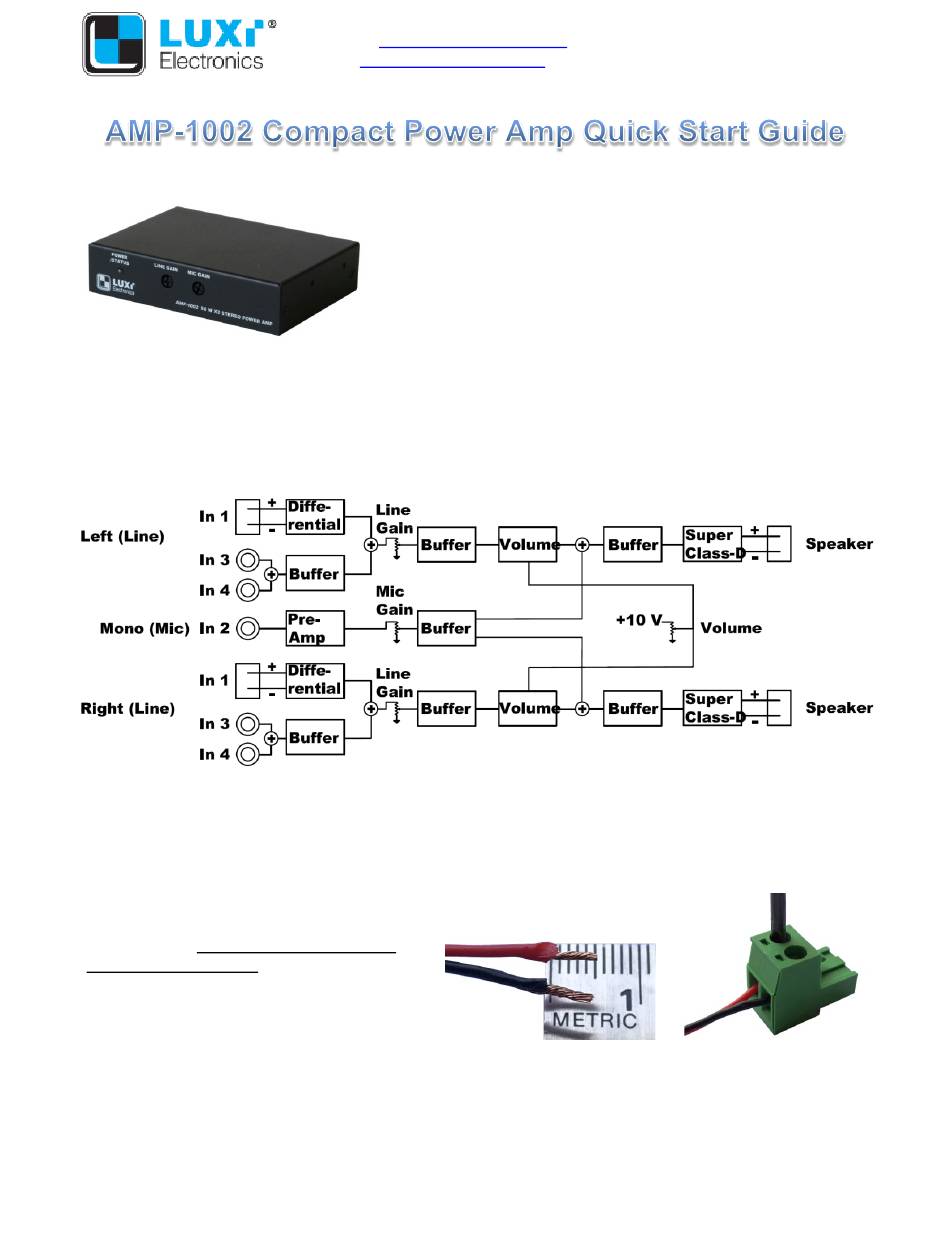

V reference voltage, external 10k ohm pot analog control for both left and right channels. See the block
diagram below.
Power options: This product draws power from an external 24 V 3 A power supply sold separately (Luxi
P/N 69-008-03).
Do NOT plug the power supply connector into any other connectors; this could cause
permanent damages to the product and void the warranty.
Captive screw plug termination: The captive screw plugs for power, audio,
speakers and volume controls are supplied
with the unit. Separate the wires about 1"
(2.5 cm) long; strip off the wire insulation
precisely 3/16" (5 mm) from the end.
Identify the positive and negative leads for
power; Luxi power supply uses red wire for
the positive wire. If not sure, use a multi
meter to verify.
Reversing power polarity
could cause permanent damages to the product and void the warranty.
Mounting options: Luxi has the under desk mount (Luxi P/N 78-002-01) or the MediaHub table tanks
sold separately; the product also fits many other mounting hardware from Extron, Middle Atlantic, etc.
Only use the type 4-40, 3/16" (5 mm) long screws supplied with the mounting hardware to screw onto
Document name: AMP-1002 quick start guide
US and PCT patents pending
Website:
www.luxielectronics.com
Email:
xlu@luxielectronics.com

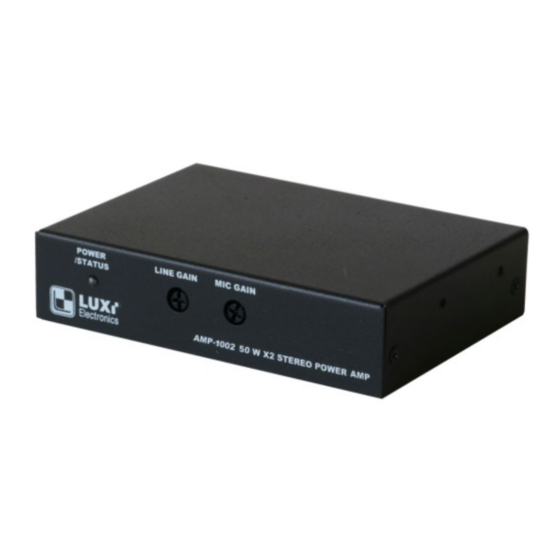

Thank you for purchasing the Luxi Electronics® AMP-1002
compact power amp. Please read through this manual before
using the product.
How the product functions: This product has 4 audio inputs: No
1 is a stereo balanced/unbalanced line input at +4 dBu level, No 2
is a mono unbal mic input at -20 dBV level, No 3 and No 4 each is
Revision: 1.05
Specifications are subject to change without notice
Phone: +1 (949) 654-2047
Address: Irvine, CA, USA
Date: 7/31/2020
Advertisement
Summary of Contents for Luxi Electronics AMP-1002
- Page 1 Phone: +1 (949) 654-2047 Email: xlu@luxielectronics.com Address: Irvine, CA, USA Thank you for purchasing the Luxi Electronics® AMP-1002 compact power amp. Please read through this manual before using the product. How the product functions: This product has 4 audio inputs: No...
- Page 2 When connecting to a subwoofer with speaker level summer and filter, check the resistance between the subwoofer’s “-“ side of the left and Document name: AMP-1002 quick start guide Revision: 1.05...
- Page 3 Luxi 69-008-03 power adaptor as with a lab power supply. Support: Please contact your reseller directly for local support; or Luxi using the contact info in the header. See Luxi website for additional and more updated documents. Document name: AMP-1002 quick start guide Revision: 1.05 Date: 7/31/2020...
- Page 4 90 W 70/100 V power amp EMI/EMC: CE, FCC Class A P/N 76-006-01 MTBF: 30,000 hours Warranty: 3 years parts and labor Document name: AMP-1002 quick start guide Revision: 1.05 Date: 7/31/2020 US and PCT patents pending Specifications are subject to change without notice...
