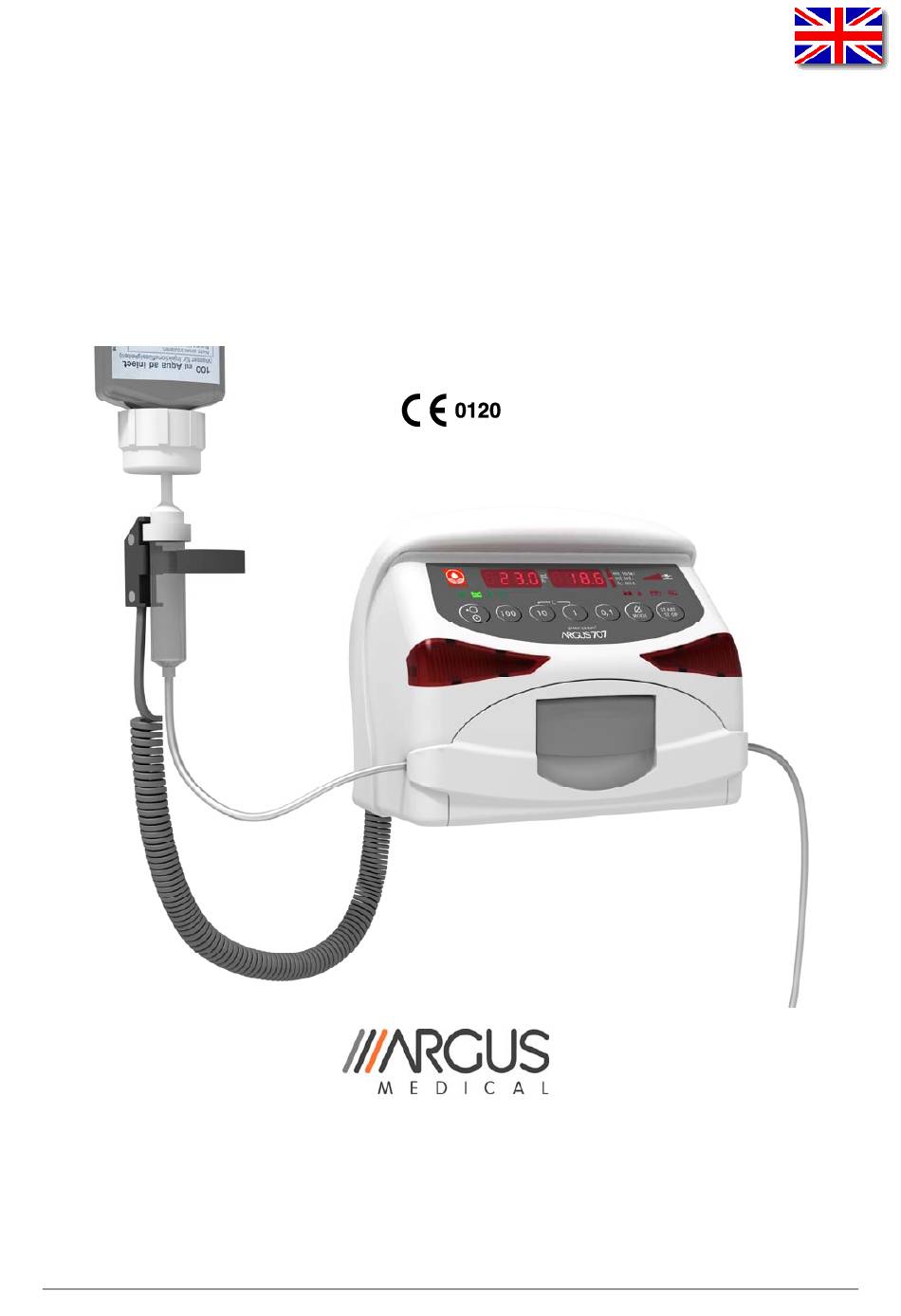

Service Manual for Volumetric Infusion Pump
ARGUS 707 V
Made in Switzerland
ARGUS Medical AG, CH-3627 Heimberg / Switzerland
(a member of the CODAN group)
14.203.B_A707 en.SM.V4.3X
ARGUS Medical AG 28.03.06 / PJ
1 / 48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 707 V and is the answer not in the manual?

Questions and answers

Related Manuals for Argus 707 V

Summary of Contents for Argus 707 V

  • Page 1 Service Manual for Volumetric Infusion Pump ARGUS 707 V Made in Switzerland ARGUS Medical AG, CH-3627 Heimberg / Switzerland (a member of the CODAN group) 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 1 / 48...

  • Page 2: Table Of Contents

    2.4. First activation of a PIN code (write protection) ..............7 2.5. Changing an existing PIN code..................8 2.6. Address list of the pump configuration (without ARGUS service) ........9 2.7. Index list of the pump configuration (with ARGUS service) ..........10 2.8.
  • Page 3 INTRODUCTION Park area for drop detector Display Drop detector Drop chamber Global alarm Air bubble detector Pressure sensor automatic Pressure sensor „upstream“ „free-flow“-clamp „downstream“ 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 2 / 48...
  • Page 4 INTRODUCTION Staff alert and Universal clamp RS-232-connection Drop detector connection Identification plate AC power with pump serial connection number ® DC-connection & QUICK Docking Station interface 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 3 / 48...

  • Page 5: Introduction

    The service manual is meant to be used together with the user manual. IMPORTANT! ARGUS Medical AG shall not assume any responsibility for any manipulations which have been carried out on the ARGUS 707 V infusion pump by a non- authorized person. CAUTION!

  • Page 6: Interrogation Mode (Without Argus Service)

    PUMP CONFIGURATIONS 2.2. Interrogation mode (without ARGUS service) With the interrogation mode you can read the present keypad configuration of the pump without the possibility to modify any configurations. For a complete overview, please take the “ARGUS service” PC-tool! 1. To enter into the interrogation mode, switch the pump on while keeping the keys “MODE”...

  • Page 7: Configuration Mode (Without Argus Service)

    PUMP CONFIGURATIONS 2.3. Configuration mode (without ARGUS service) The configuration mode permit you to modify the pump keypad configuration manually using the keypad. Please refer to chapter 2.6. where the meaning of the adresses are explained. To have access to all configuration options, please use the “ARGUS service”...

  • Page 8: First Activation Of A Pin Code (Write Protection)

    The display will show “Cod ----“. 5. Press “MODE” key (Code “0” will be set) then “START” key to acknowledge the entered PIN code “0”. 3. Press key “MODE” 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 7 / 48...

  • Page 9: Changing An Existing Pin Code

    Press “MODE” key (#0). The flashing decimal points will change to the right hand display. Enter the new PIN code and press the “START/STOP” key to acknowledge the entered code. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 8 / 48...

  • Page 10: Address List Of The Pump Configuration (Without Argus Service)

    50 - 1000 Enter the calibration menu (volume) Enter the calibration menu (pressure) 1234 Note! The address does not correspond with the index used by the “ARGUS service” tool. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 9 / 48...

  • Page 11: Index List Of The Pump Configuration (With Argus Service)

    PUMP CONFIGURATIONS 2.7. Index list of the pump configuration (with ARGUS service) Index PC Add. Default Function Unit Range Run indication by running decimal point No / Yes Key ON/OFF only at stop valid No / Yes Rate change allowed only at STOP...
  • Page 12 Correction at 500 ml/h ratio 900 - 1100 Correction at 750 ml/h ratio 900 - 1100 Correction at 999 ml/h ratio 900 - 1100 1000 Correction at 1200 ml/h ratio 1000-1100 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 11 / 48...
  • Page 13 2 - 40 Downstream default pressure limit PrL • 100 mbar 1 - 10 Air bubble size µl 50 - 1000 Drop rate window center drops 10 - 65 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 12 / 48...
  • Page 14 Service interval in hours of operation (0 = disabled) hour 0 -10000 Pump serial number xxx 8 yyy xxx 8 yyy Enter the calibration menu / clears protection key 123/4 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 13 / 48...

  • Page 15: Special Configuration Options (With Argus Service)

    “Yes” in the corresponding index 101, 102, 103, 104 b) make sure the set definitions (index 201 to 277) correspond to the IV sets used. In case of doubt, contact ARGUS Medical AG or your local dealer. c) configure the set parameters (index 310 to 349 and 351) d) perform a complete set calibration as per chapters 6.3.

  • Page 16: Medication List

    UserM 30 1 - 8 ASCII User med. name 31 char UserM 31 1 - 8 ASCII User med. name 32 char UserM 32 1 - 8 ASCII 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 15 / 48...
  • Page 17 No / Yes Oxaliplatine No / Yes Fludarabine No / Yes Oxytocin No / Yes Fluimucil No / Yes Paclitaxel No / Yes Fluorouracil No / Yes Pentoxityllin No / Yes 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 16 / 48...
  • Page 18 User defined med. 32 No / Yes Urapidil No / Yes REMARK : Via barcode reader all medication names can be selected, even if they are not released in the configuration. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 17 / 48...

  • Page 19: Serial Communication Of The Pump

    (refer index #55 in the configuration). If the pump is docked into a docking station ARGUS 60 M or ARGUS 100 M, the software switches automatically to the docking interface and the docking station builds the separation device (galvanic isolation) then.

  • Page 20: Argus Service

    4. ARGUS SERVICE 4.1. General The new ARGUS service utility is a high and user friendly PC software which can configure and upgrade pumps over PC serial COM port. With this Windows based software you can also set pump clock, change PIN code, read and print out history and easily replicate pump configurations, and so on.

  • Page 21: Argus Service - Configuration

    # 20, 22-30, 32-34, 369 # 1, 7, 8, 15, 16, 45, 46, 48, 56, 366 # 2-5, 14, 39, 49, 361, 365 # 11-13, 17, 38, 40-42, 60 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 20 / 48...

  • Page 22: Argus Service - Calibration (Volumetric Pums Only)

    If a config. has been edited (performed point 1 and 2) once do not switch off the pump! Otherwise the pump will change always into the PC-configuration mode automatically. 4.3. ARGUS service - Calibration (volumetric pums only) Use this feature to easily calibrate the volume delivered by the volumetric pump.

  • Page 23: Argus Service - Toolbox

    We recommend to do a control measurement after changing the correction factor! 4.4. ARGUS service - Toolbox With the “ARGUS service” PC-tool you can set the pump clock, change PIN code, read and print out history, etc. Select the next step by pressing one of the but- tons (set clock, change PIN code, view history, service interval or replicate).
  • Page 24 2.3.2. If a PIN code greater than 9999 is entered, the pump configuration can only be accessed using the ARGUS service PC tool. 4.4.3. ARGUS service - Toolbox - Service interval Use this feature to set a reminder alarm on the pump for the next service interval.
  • Page 25 ARGUS service 4.4.5. ARGUS service - Toolbox - Pump history Each registered event has his own date & time stamp. An event is registered on each pump status change. Please refer to the com- plete list mentioned in chapter 4.4.6 below.
  • Page 26 ARGUS service All pre-alarms, alarms and technical failures are high lighted in a different colour. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 25 / 48...

  • Page 27: Software Updates

    5.1. General This chapter describes the procedure to perform a software update on the ARGUS 707 infusion pump. To check the installed software release in your ARGUS 707 V press the "MODE" key while switching on the pump. Please refer to your local distributor or ARGUS Medical AG to determine the latest software release able to run on your device hardware.
  • Page 28 “…”. 7. Press “Update the pump firmware”. Follow the instructions displayed on the PC. The firmware will be installed and the pump will be switched off automatically. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 27 / 48...

  • Page 29: Safety Aspects

    5.4. Safety aspects Be aware of the following points: For medical device traceability your local distributor or ARGUS Medical AG needs to be informed about every device updates (serial number) you performed! Do not make any software updates when the device is used and/or connected to...

  • Page 30: Maintenance

    Only authorized persons who have been trained by ARGUS Medical AG or by the local distributor are allowed to service the ARGUS 707 V infusion pump. In case of repair request, send the unit with the filled out “repair order form” (see chapter 11) to the local distributor.

  • Page 31: Pressure Calibration

    MAINTENANCE 6.3. Pressure calibration 6.3.1. General The volumetric infusion pump ARGUS 707 V contains two pressure sensors: - One upstream sensor, bottle side (left input) - One downstream sensor, patient side (right output). A pressure calibration becomes necessary if: - the pressure control measurement is not...
  • Page 32 1. Remove the IV set and open the door. 2. Press “START/STOP” to store the values for the up- and downstream sensor. 3. Press “MODE”. Display shows “CAL 1.0b”. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 31 / 48...
  • Page 33 “START/STOP” to store the value (refer to step 1). The software will not allow the value to drop lower than the previous saved door open offset value +50mV. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 32 / 48...
  • Page 34 The pump pumps reverse. Remark: The pump must reach a pressure of at least 1.2 bar. Otherwise there might be a mechanical problem (Check the pump unit and the door). 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 33 / 48...
  • Page 35 9. Release the pressure and press "MODE". Display shows “SEt - 1-”. 10. Switch the pump off. Close the roller clamp and remove the IV set. 11. Perform a control measurement according chapter 6.4. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 34 / 48...

  • Page 36: Pressure Control Measurement

    If the result of this control measurement does not fulfil the stated requirement, a pressure calibration according to chapter "Pressure calibration" has to be carried out again. 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 35 / 48...

  • Page 37: Volume Calibration

    250 ml/h. 3. Determine the weight of the delivered water. 4. Connect the pump to a PC and start the ARGUS service PC tool as described in chapter 4, go into the calibration part of this tool.

  • Page 38: Pump Specifications

    For an optimized long time accuracy over 24 hours, we recommend to do a control measurement over 24 hours on a rate of 25 ml/h. 6.6. Pump specifications Please refer to the user manual for the specifications (chapter 9). 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 37 / 48...

  • Page 39: Fault Codes

    If the pump was switched OFF after a detected failure, the fault code will be stored in the configuration of the pump (see index 380 - 389 via ARGUS service PC-tool). The possible fault codes registered in the configuration are listed in the table below:...

  • Page 40: Replacement Of Parts

    7. REPLACEMENT OF PARTS 7.1. General CAUTION! The ARGUS 707 V may only be used with accessories and spare parts which have been approved by ARGUS Medical AG for safe technical use. CAUTION! If a door, a housing, a pressure sensor or a main board is replaced, a full calibration (pressure sensors and volume calibration) is required.
  • Page 41 7.2.4. Assembling the pump 1. Use the screw with two washers at these places (torque 1.0 Nm)! 2. Use the screw without a washer at these places (torque 1.0 Nm)! 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 40 / 48...
  • Page 42 (battery, power & docking interface)! 6. Make sure that both ca- bles are correctly placed in the notch before the main board is inserted! 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 41 / 48...
  • Page 43 Into pump unit 0.40 Display board Into front 0.50 Transformer Into Backplane 1.00 Clamp holder Into Backplane 0.50 Mains plug Into Backplane 0.50 Edge board Into clamp holder 0.50 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 42 / 48...

  • Page 44: Spare Parts

    10.119 Battery NiMH 12V/1500mAh 10.120 Display board A707 10.121 Pressure sensor 10.124 Main board A707 10.122 Air detector 10.123 Stop flow A707 0.125 Sensor board A707 10.126 Pump unit A707 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 43 / 48...
  • Page 45 12.042 Cable staff alert 2m 12.011 Interface cable 8pol/2m 11.268 Alarm lights & 12.012 Interface adapter 11.132 Label external 11.237 Identification plate A707 11.238 Label flow direction drop detector 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 44 / 48...
  • Page 46 Short instructions Part no. 11.222 Front panel A707 (SW, DE, EN, FR, DK, NL, CZ, PT, SP, IT) 11.005 Bottle holder 45 cm 12.044 Plug 11.043 Bottle holder 60 cm 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 45 / 48...

  • Page 47: Wiring Diagramm

    (Motor + Buzzer) Ext. DC Li-Batt. 3 Volt + 5V Air Bubble Detector (Logic) Ni-Cd Akku 12V Drop Detector Pressure Sensor (in) Door Control Pressure Sensor (out) Motion Control 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 46 / 48...

  • Page 48: Safety Standard Check

    - Measurements attached Charge the battery after this test! The pump has passed the SSC and is safe for use Date / Name: ……...…………………………………….. Signature: ………………………………....… ARGUS Medical AG 14.203.B_A707 en.SM.V4.3X ARGUS Medical AG 28.03.06 / PJ 47 / 48...

  • Page 49: Repair Order Form

    REPAIR ORDER FORM 11. REPAIR ORDER FORM ARGUS Medical AG / Heimberg Switzerland REPAIR ORDER FORM Purchase order / Proforma invoice number: Customer name and address: Name of contact person: Tel. number: A414 ARGUS 100 P Device: A400 ARGUS 100 M...
