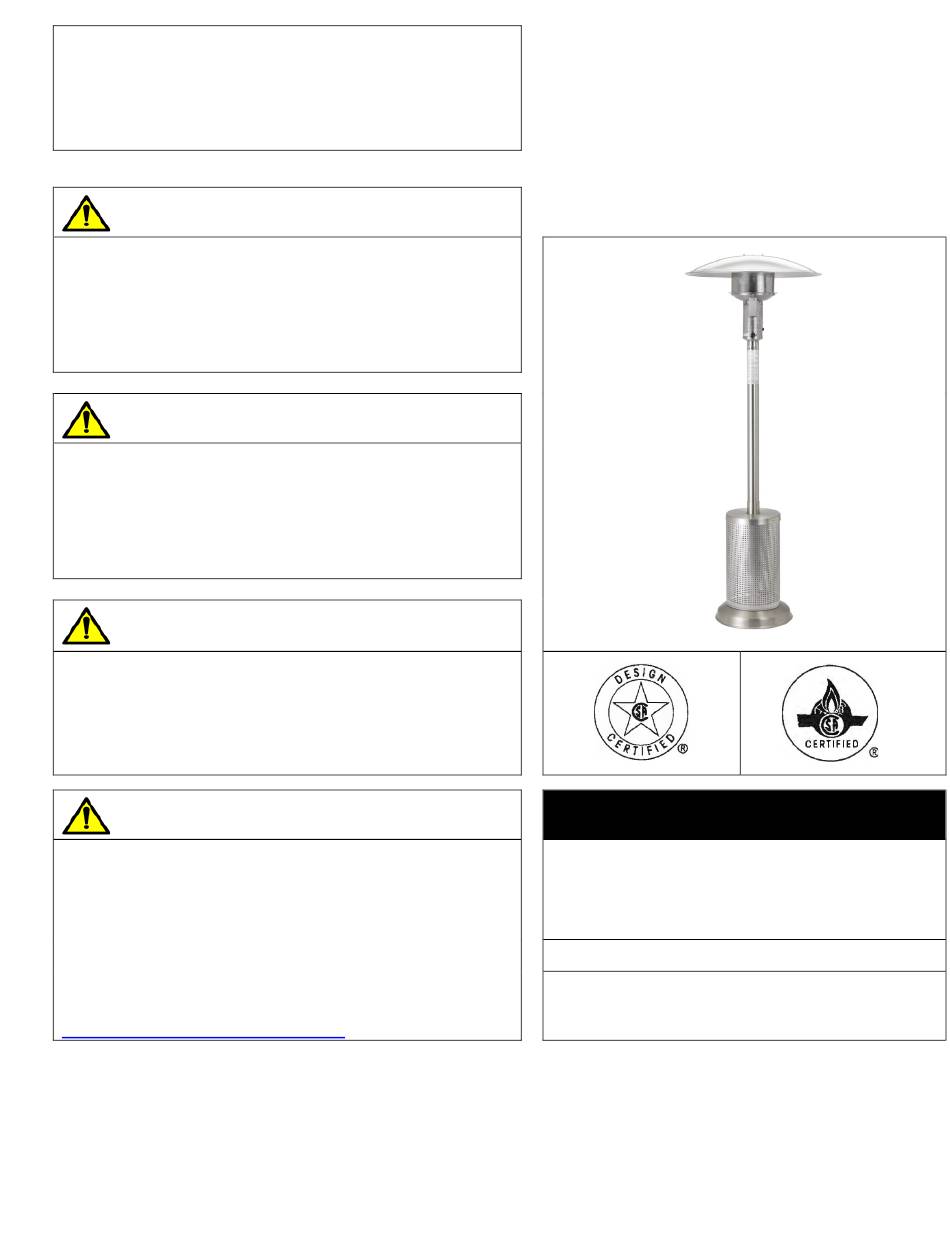

SunGlo A270 Quick Start Manual

Gas-fired infrared patio heater

Advertisement

Quick Links

Sunglo®
Patio Heater
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3.
If the odor continues, keep away from the
appliance and immediately call your gas
company.
DANGER
DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
An Propane Gas cylinder not connected for use
shall not be stored in the vicinity of this or any
other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or
installation, operating and maintenance
instructions thoroughly. before installing or
servicing this heater.
WARNING: CA Prop 65
If not installed, operated and maintained in
accordance with the manufacturer's
instructions, this product can expose you to
substances in the fuel or from combustion
including carbon monoxide, resulting in death
or serious illness and which are known to the
State of California to cause cancer, birth
defects or reproductive harm. For more
information go to
www.P65WARNINGS.CA.GOV
TO THE INSTALLER: Leave this manual with the
owner after installation.
TO THE OWNER: Keep this manual in a safe place in
order to provide your service technician with necessary
information for future reference.
P/N 65135-6/21
death.
Read the
Copyright © 2021 By Infrared Dynamics, Inc.
MODEL A270
Gas-fired Infrared Patio Heater
Propane Gas
FOR OUTDOOR PORTABLE USE ONLY
Not for use in residential dwellings
Please Note the following:
It is the sole responsibility of the purchaser
to check for and comply with any local or
national standards or restrictions as they
pertain to the installation of outdoor
heaters before purchase.
High Altitude
Installation of this appliance at altitudes above
2,000 (610 m) shall be in accordance with local
codes, or in the absence of local codes,
ANSI Z224.1/NFPA 54 or CSA B149.1.
Manufactured By:
Infrared Dynamics, Inc.
3830 Prospect Avenue
Yorba Linda, CA 92886
(888) 317-5255
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A270 and is the answer not in the manual?

Questions and answers

Summary of Contents for SunGlo A270

  • Page 1 Sunglo® MODEL A270 Patio Heater Gas-fired Infrared Patio Heater Propane Gas FOR OUTDOOR PORTABLE USE ONLY Not for use in residential dwellings DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. If the odor continues, keep away from the appliance and immediately call your gas company.
  • Page 2: Installation

    6. The heater must be inspected before each use, and at least annually by a qualified service 1. The Model A270 gas-fired infrared patio heater is intended for heating residential and non- person. residential outdoor areas. When the appliance a.
  • Page 3 Handling of Liquefied Gases, ANSI/NFPA 58. painted. The reflector may be cleaned, but never painted. 13. The A270 Sunglo Heater has been designed with several safety features. These include 7. The hose assembly shall be properly located 100% safety shutoff control, elevated heating out of pathways where people may trip over it.
  • Page 4 The Original Outdoor Patio Heater •...
  • Page 5: Replacement Parts List

    HEATER HEAD ASSEMBLY Replacement Parts List Item Part No. Description 70017 Nut, ¼-20 Hex SST 70024 Washer, ¼ SAE SST 10261 Reflector, PH 70006 Bolt, ¼ x ¾ Hex 70033 Washer, ¼ Inter SST 27006 Assy, PH Emitter Grid 70065 Wingnut, ¼...
  • Page 6 HEATER ASSEMBLY MODEL A270 Step 1. a. Remove Pipe Assembly from Post Package and thread pipe onto heater base. Use 2 wrenches at least 12” long to tighten pipe to heater base. If Teflon tape is not provided gas pipe sealant should be used at this joint.
  • Page 7: Base Parts List

    Model A270 Base Parts List Propane Portable Patio Heater Item Part No. Description 60008-1 Lighting Instructions 30280 Post, A270 – 45” L 80006-4 Pipe, 42” L Black 70011 Nut, 3/8 Acorn 70013 Washer, 3/8 Lock 70007 Bolt, 3/8 x ¾ Hex...
  • Page 8 Electrode with lead 70037 Screw, #8-32 x 3/8 70038 Nut, #8-32 30623-3 Igniter Cover 70072 Screw, #8-32 x ½ SST 60623 Bracket, A270 Igniter 30629 Plate, Igniter Ground 90072 Battery, AA 1.5 Volts 90071 Igniter, BP-E1 70066 Screw #10-24 x .25 30204-5...
  • Page 9: Propane Safety

    The A270 heater comes equipped with a hose and regulator for connection to a standard 20 lb. propane cylinder. All fittings necessary to attach the CYLINDER VALVE HAND WHEEL hose/regulator to the heater are included.
  • Page 10: Troubleshooting

    TEST FIRING HEATER Test fire heater, following the lighting instructions on heater post. Leak test all gas connections with soapy water. Soap bubbles indicate gas leakage. Do use a match to test for gas leaks. WARNING: White smoke may appear around the emitter grid during the first minute of the initial firing. TROUBLE SHOOTING Problem Possible Causes...
