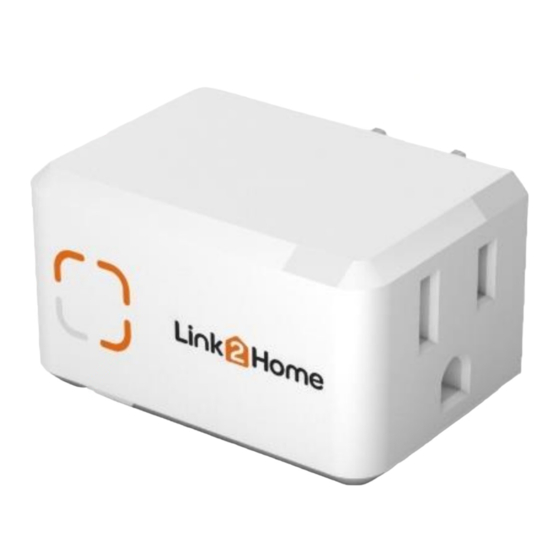

Item no. Receiver RF201R-UL and Transmitter RF102T
Functions
A.
1. Learning code system
2. Manual button on each receiver for ON/OFF control.
3. All ON/All OFF control
4. Countdown function with 1, 2, 3, 4 hours
5. Random function for security use
B.
Diagram
No.
Description
1
ALL ON
ALL OFF
2
ON OFF
3
Countdown
4
Random
5
Manual
Button
6
LED indicator
Instruction Manual
Remote control
1
2
3
4
Function
Switch ON/OFF all the paired receivers
Switch ON/OFF the paired receiver
Press the button from 1-4 hours, the paired receivers will switch
off after the set countdown time
Press the button, the paired receivers will enter the random
mode, switch ON/OFF randomly
Switch ON/OFF the receiver;
press over 3 seconds on transmitter to pair with selected receiver
or delete paired transmitters.
LED ON/OFF indicates receiver power ON/OFF; LED flashes
means receiver is under pairing mode; indicator countdown hours
5
6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for SiliconDust RF201R-UL
- Page 1 Instruction Manual Remote control Item no. Receiver RF201R-UL and Transmitter RF102T Functions 1. Learning code system 2. Manual button on each receiver for ON/OFF control. 3. All ON/All OFF control 4. Countdown function with 1, 2, 3, 4 hours 5. Random function for security use...
- Page 2 Instruction 1. Pairing a) Plug the receiver into an outlet, the LED indicator flashes (under pairing mode), press the ON or OFF button on the transmitter (select one from 1-5, number means different channels). If the LED is not under pairing mode, press the manual button over 3 seconds to turn the receiver into pairing mode.
- Page 3 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
