- Page 1 Instruction Manual Alfa Laval Level Switch (TE67O) TE91K023-EN5 ESE01748EN Date of issue: October 2019 First published: 2010...
-
Page 2: Table Of Contents
9.1 Ordering key table ........................17 9.2 Certificates table ........................18 General information ......................19 10.1 Service / Repair ........................18 10.2 Warranty ..........................18 10.3 How to contact Alfa Laval Kolding A/S ..................18 Page 2 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 3: Ec Declaration Of Conformity
Global Product Quality Manager Pumps, Valves, Fittings and Tank Equipment Lars Kruse Andersen Title Name Signature April 1, 2019 Kolding Date Place This Declaration of Conformity replaces Declaration of Conformity dated 2019-02-01 Page 3 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 4: Safety
Indicates that special procedures must be followed to avoid damage to the level switch NOTE Indicates important information to simplify or clarify procedures 2.2 Warning signs General warning: Dangerous electrical voltage: Caustic agents: Page 4 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 5: Safety Instructions
This instruction manual is copyrighted. The contents of this instruction manual reflect the version available at the time of printing. It has been issued to our best knowledge. However, errors may have occurred. Alfa Laval Kolding A/S is not liable for any incorrect statements and their effects. -
Page 6: General Description

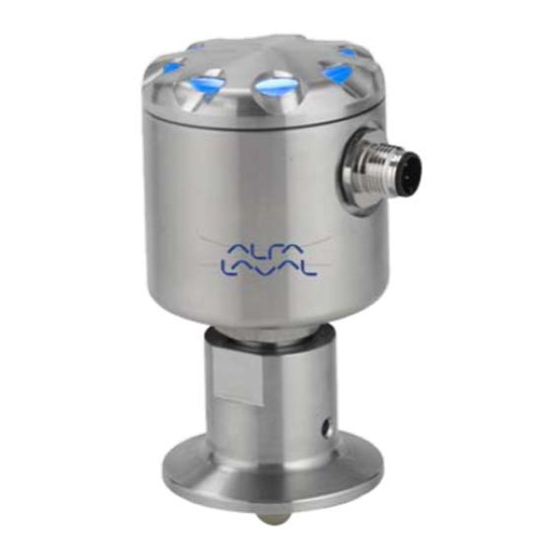

3.2 General description Alfa Laval level switch TE67O is designed for level detection in tanks and dry-run protection of pumps by empty pipe monitoring. It detects liquid, pasty or oily media, but also solid-bulk materials like flour or plastic granulate. The TE67O is capable of media differentiation by distinguishing the specific properties, such as oil, water, foam and liquid. -
Page 7: Technical Specifications
Short circuit protection Voltage drop PNP: (+Vs -1.5 V) ± 0.5 V, Rload = 10 kΩ Off leak current ± 100 μA max. Switching logic Normally open (NO) Normally closed (NC) Page 7 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... - Page 8 G½, 250 mm sliding TE67OxM… -20 … 115 -1 … 10 -1 … 10 Unique Flexbody, type F TE67OxN… -20 … 115 -1 … 10 -1 … 10 Unique Flexbody, type N Page 8 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5...
-
Page 9: Installation
The TE67O has several possibilities for mechanical mounting into the process. It can de delivered with both hygienic clamp connections and non-hygienic versions. Warning: Install only the Alfa Laval level switch when the tank or pipe is depressurized and currentless. Installation: ... - Page 10 Electropolishing + 3.1 certificate: TE67N000000038 Mounting with Unique Flexbody Connection: The TE67O is available with the Unique Flexbody connection which offer a 100% flush connection in tanks or in combination with the Unique Flexbody body in any piping. A/F 22...
-
Page 11: General Installation Guidelines
Flexbody connection to get a flush mounting without any dead legs. After installation Check the leak tightness of the sleeve/ferrule. Check the tightness of glands or M12 plugs. Check the tightness of the cover Page 11 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 12: Electrical Installation, M12 Plug
5.4 Electrical installation with M16 cable gland PNP NO Cable diameter for M16 3...9 mm Warning Out T-in Note: Check the maximum temperature for the cable used. PNP NC Out T-in Page 12 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 13: Setup
Teach-In process. Otherwise a faulty calibration can be the result. If Teach-In for some reason do not succeed, the level Switch TE67O will enter “Error State” and automatically reload factory settings . The factory settings can always be reloaded by connecting the terminal “Teach-In” to -VDC for more than 6.5 sec- onds. -
Page 14: Dimensional Drawings
PEEK AISI 316 L Safety G½, 250 mm sliding (TE67OxFxxxxxxx) G 1/2 A ø15 PEEK AISI 316 L PEEK AISI 316 L Safety PEEK compression ring set (Spare part No.: 9614462401) Page 14 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... - Page 15 DN 25 (DIN11851) (TE67OxAxxxxxxx) ø 4 DN 40 (DIN11851) (TE67OxBxxxxxxx) ø 6 DN 50 (DIN11851) (TE67OxCxxxxxxx) ø Unique Flexbody, type F, Unique Flexbody, type N, DN 40 … DN 25 DN 125 Page 15 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5...
-
Page 16: Troubleshooting
Check if wiring is according to the scedule on p. 12 If all of these points is checked, and the sensor still have an error, the level switch needs to be returned to Alfa Laval for repair. Page 16... -
Page 17: Ordering
Digital out, PNP NO (50 mA.) TE67Oxxxxx1xxx Electronical features TE67Oxxxxxx0xx M12 Connector, Stainless Steel Others TE67Oxxxxxxx3x Cable gland M16, Plastic TE67Oxxxxxxx4x Cable gland M16, Stainless Steel TE67Oxxxxxxx5x Certificates None TE67Oxxxxxxxx0 3.1 Certificate TE67Oxxxxxxxx2 Page 17 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 18: Certificates Table
Unique Flexbody, type N - DN 40...DN 125 (1½” … 6”) TE67O0Nx1110xx 3-A Approval is only valid with a 3-A approved welding part 3-A Certificate Authorization number: 1536 A copy of the certificate can be downloaded from 3-A Sanitary Standards, Incorporated Page 18 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5... -
Page 19: General Information
10. General information 10.1 Service / Repair The product contains no direct replaceable parts. In case of malfunction the product must be sent to Alfa Laval for repair. The PEEK compression rings for the sliding connection need to be replaced if they are deformed. - Page 20 Page 20 Instruction Manual, Alfa Laval Level Switch TE91K023-EN5...
- Page 21 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise) or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
