myone SMARTONE Installation And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

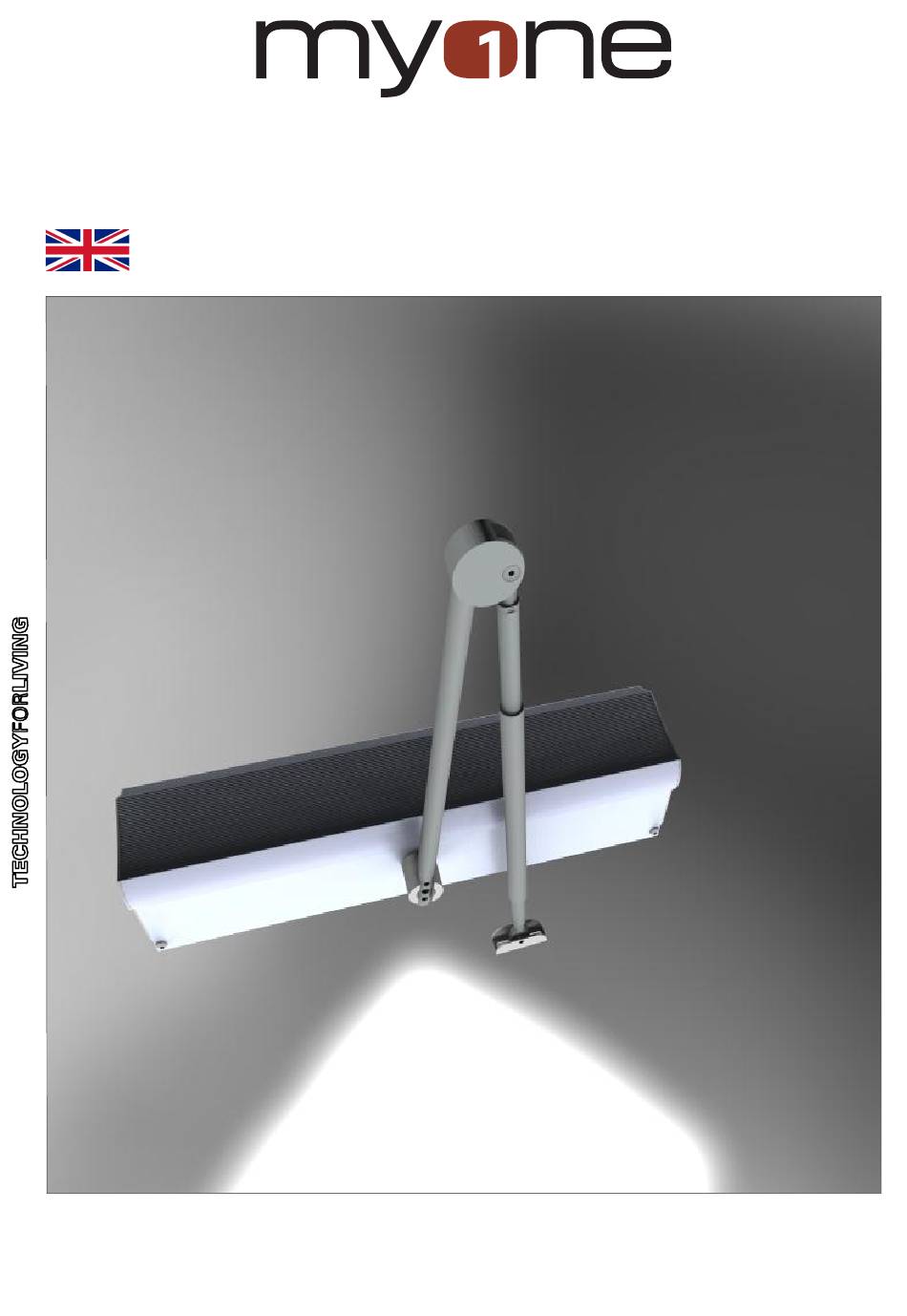

SMARTONE
Hinged doors' automation installation and
EN
maintenance manual
myone S.r.l - Via T. Edison, 11 - 30035 Mirano (VE) - ITALY Tel. +39 041 412542 - Fax +39 041 412542
www.myoneautomation.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTONE and is the answer not in the manual?

Questions and answers

Related Manuals for myone SMARTONE

Summary of Contents for myone SMARTONE

  • Page 1 SMARTONE Hinged doors’ automation installation and maintenance manual myone S.r.l - Via T. Edison, 11 - 30035 Mirano (VE) - ITALY Tel. +39 041 412542 - Fax +39 041 412542 www.myoneautomation.com...

  • Page 2: Safety Warnings

    4. Installazione automazione pag. 4 4. Automation installation 4.1 Positioning of drills to fasten SMARTONE automation with articulated arm (01FE0055) 4.2 Installation with articulated arm 4.3 Articulated arm for hinged door COD. 01FE0055 4.4 Positioning of drills to fasten SMARTONE automation with sliding arm (01FE0056) 4.5 Installation with sliding arm 01FE0056...
  • Page 3 9- Spring lever spring 10- Emergency battery molla spring 11- Bush for arm connection batterie di emergenza emergency battery boccola attacco braccio bushing arm connection WARNING: Operation and performances are guaranteed only with MYONE accessories and devices. - 3 -...
  • Page 4 4. Automation installation 4.1 Positioning of drills to fasten SMARTONE automation with articulated arm (01FE0055) Fig. A = HOLE M8 OPEN SX 20 mm OPEN DX 30 mm cable entry cable entry ~ 6 mm 1- Check that the wall is straight and...
  • Page 5 4.2 Installation with articulated arm Use the articulated arm 01FE0055 for outward opening doors looking from the automation side. min. 600 Pierce the leaf and fasten the articulated arm respecting the measures indicated in the pic.tures. (*) If needed, use the extension bush 01FE0054 to increase the gap between the automation and the arm to 85 mm.
  • Page 6 4.4 Positioning of drills to fasten SMARTONE automation with sliding arm (01FE0056) = HOLE M8 Fig. A OPEN SX 20 mm OPEN DX 30 mm cable entry cable entry ~ 6 mm 1- Check that the wall is straight and...
  • Page 7 4.5 Installation with sliding arm 01FE0056 Use the sliding arm 01FE0056 for inward opening doors looking from the automation side. min 700 Fasten the sliding track on top of the leaf as shown in the pic.tures, respecting the given measures and cutting the part of the track in excess if the leaf is too narrow.

  • Page 8: Application Samples

    5. Application samples 5.1 Sliding arm hinged door COD. 01FE0056 31RM0001 Microwave radar. IP30 31ST0004 Surface mounting wired mobility-impaired soft touch device. IP54 31RS0001 Safety sensor for hinged door. DIN 18650 / EN16005 IP54 5.2 Articulated arm hinged door COD. 01FE0055 31RM0001 Microwave radar.
  • Page 9 COM 10 OPEN 17 OPEN 17 Connect the terminal INT.I 18 COM 10 OPEN 17 –SMARTONE 1- with INT.I 18 COM 10 OPEN 17 -SMARTONE 2- How to synchronize 2 automations through LCD parameters set-up, overlapping leaves: R parameter = 3 H parameter = from 1 to 9 (second leaf closure delay) J parameter = 1 (1,5 sec.
  • Page 10 6. Limit switches adjustment and opening safety “B” limit switch that excludes the safety sensor in opening “A” limit switch for maximum opening stop Cam that activates the limit switch for maximum opening stop Cam that activates the limit switch that excludes the safety sensor in opening NC terminal FCA11 NO terminal PHOTO RAL 12 NO terminal PHOTO RAL 12...
  • Page 11 7. Connections cod.30DC3003 26 27 12 - 24 Vac/dc 125 - 230 VAC I max 10VA 50 - 60 Hz - 11 -...

  • Page 12: Test Input

    8. Commands and power supply for accessories ELECTRICAL CONNECTIONS / LED STRIPE COLORS LEGEND brown LED 5 white – 4 = RED LED brown LED 5 yellow – 4 = BLUE LED marrone/brown brown LED 5 – 4 = GREEN LED brown LED 5 yellow white –...
  • Page 13 9. Operating The control panel is designed to operate an auto-set feature and to be ready for the use from the instant it is connected to the power supply. 9.1 Auto-set and automatic closure time regulation WARNING: the auto-set process needs all the safeties to be wired; if one or more safeties are not used, close the relative input terminal with Com 10 or COM 31 terminals.
  • Page 14 6. Funzionamento selettore ON / OFF 10. Accessories’ electrical connections samples 10.1 Wired rotating selector electrical connection cod.30DC3003 cod. 31SR0005 cod. 31SR0007 - 20 + 21 SIG 22 10.2 Soft touch / mobility-impaired soft touch electrical connection cod. 31ST0001 cod. 31ST0001 cod.30DC3003 cod.

  • Page 15: Control Terminal Description

    11. Control terminal description 10- COM Common inputs (negative). 31- COM N.C. safety, the opening of the contact (10-12 or 31-12) during the opening phase, 12 - FOTO RAL changes the door movement to “low speed”. N.C. safety, the opening of the contact (16-18) stops the movement of the door and inhibits any command.
  • Page 16 12. SMARTONE hinged doors instruction manual Unlocking system: In case of malfunctioning of the safety devices or the automation, disconnect from power supply and operate the door manually. Warning: if equipped with electro lock, use the dedicated key to unlock.
  • Page 17 Installation date ___ / ___ / _________ Activation date ___ / ___ / _________ NOTES: myone S.r.l - Via T. Edison, 11 - 30035 Mirano (VE) - ITALY Tel. +39 041 412542 - Fax +39 041 412542 www.myoneautomation.com - 17 -...
  • Page 18 S.r.l - Via T. Edison, 11 - 30035 Mirano (VE) - ITALY Tel. +39 041 412542 - Fax +39 041 412542 www.myoneautomation.com - 18 -...
