- Page 1 A DIVERSITY B USER GUIDE 9988 / 9989 / 9990 / 9991 / 9992 / 9374 - Version 1 / 12-2012...
- Page 2 English GO series microphones - Lavalier, headband or handheld UHF systems Page 2...
-
Page 3: Safety Information
English GO series microphones - Lavalier, headband or handheld UHF systems 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 4 English GO series microphones - Lavalier, headband or handheld UHF systems Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.

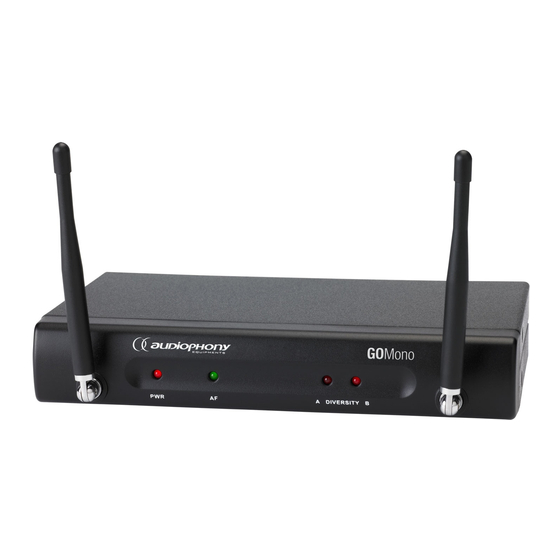

- Page 5 UHF system with 16 frequencies and up to 4 microphones simultaneously, depending on the configuration and the conditions of your performance. This user guide will provide useful information and details about the whole GO series and its components. GoMono code 9988 2.1 - Receiver box - Carrier frequency: UHF 863 ~ 865MHz.
- Page 6 English GO series microphones - Lavalier, headband or handheld UHF systems 2.2 - GOHand code 9989 Handheld microphone CHANNEL [1] Protection grille. [5] Channel selector: Allows you to choose the [2] Battery level LED indicator. This LED lights up transmission channel, depending on the channel when the microphone is activated, flashes when used by the receiver.
- Page 7 English GO series microphones - Lavalier, headband or handheld UHF systems [1] ON/OFF button: Press and hold for 2 seconds to [6] Gain control knob. activate/deactivate the transmitter. [7] Output selector. Allows you to connect either an [2] Male mini-XLR socket electret microphone or a line level device (such [3] Battery level LED indicator.
-
Page 8: Installation
English GO series microphones - Lavalier, headband or handheld UHF systems 3 - Installation 3.1 - Connecting the receiver DC INPUT AUDIO OUTPUT 12V 500mA UNBALANCED CHANNEL LINE MIC BALANCED - Connect the supplied AC adapter to an electrical outlet, and to the DC 12V socket located at the rear of the GOMono receiver. - Page 9 English GO series microphones - Lavalier, headband or handheld UHF systems 3.2 - Commissioning GOBody et GOHand transmitter - Open the battery compartment and insert two LR6 or AA batteries. Please respect the polarity as described opposite. - Unscrew the battery compartment panel and insert two LR6 or AA batteries.
-
Page 10: Battery Charge Level Indicator
English GO series microphones - Lavalier, headband or handheld UHF systems 3.3 - Battery charge level indicator - This LED flashes to indicate the batteries are almost empty and need to be replaced or charged. 3.4 - Using the output selector - Use the MIC/LINE located at the rear of the transmitter box to adjust its input level. - Page 11 English GO series microphones - Lavalier, headband or handheld UHF systems 3.6 - Configuring channels Use the faders located on your transmitter and receiver to select the carrier frequency of your UHF system. Your transmitter and receiver must be set on the same channel. In order to use several mic simultaneously, choose frequencies as far apart as possible.
-
Page 12: Troubleshooting
English GO series microphones - Lavalier, headband or handheld UHF systems 4 - Troubleshooting No sound: - Check on the power supply units. - Check on the frequency channels - It must be the same channel on both the transmitter and receiver. -
Page 13: Technical Specifications
English GO series microphones - Lavalier, headband or handheld UHF systems 4 - Technical specifications GOMono receiver • Carrier frequency: UHF 863 ~ 865 MHz • Housing: Compact • Oscillator: PLL synthesiser • Reception: Diversity Mono channel • Frequency stability: ±0.005% •... - Page 14 English GO series microphones - Lavalier, headband or handheld UHF systems GOBody transmitter • Frequency range : UHF 863 ~ 865 MHz • Maximum output level: 10mW (max.) • Oscillator: PLL synthesiser • Frequency stability: ± 0,005% • Maximum deviation: ±20KHz •...
- Page 15 Adress: Parc d’Activités du Sycala – 46091 CAHORS Cedex 09 – France Declare under our sole responsibility that the Audiophony UHF wireless transmitter and receiver microphones: GO-Mono (9988) / GO-Hand (9989) / GO-Body (9990) Are in conformity with the Council Directives: - 2011/65/UE ROHS - 1999/5/EC R&TTE...
- Page 16 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
