RHINO Fence Pro Service Kit Installation

Hide thumbs Also See for Fence Pro Service Kit:

Advertisement

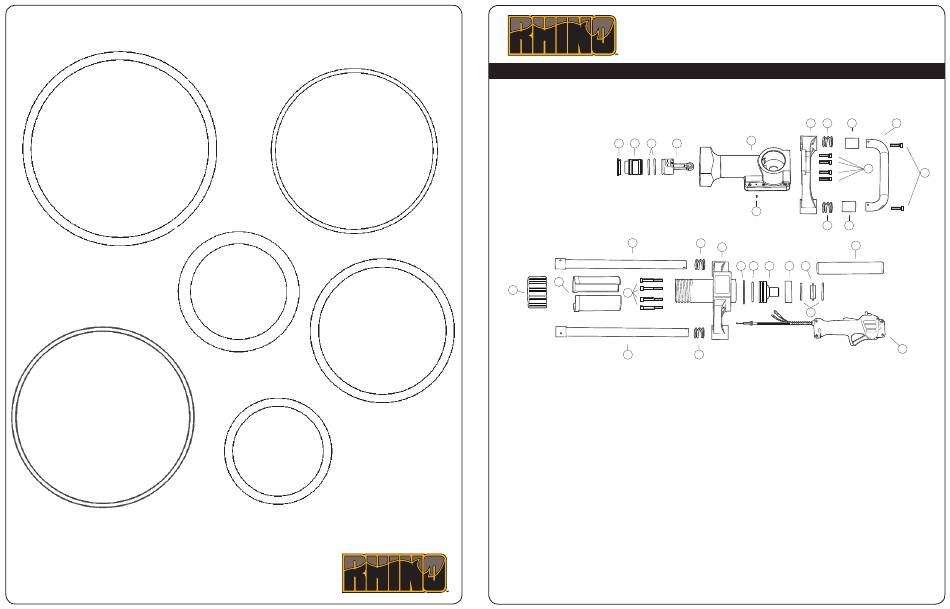

Fence Pro Service Kit Parts - Shown Approximate Actual Size*
PLEASE CALL RHINO IF YOU DO NOT HAVE ALL THESE PARTS IN YOUR KIT BAG
(# location indicated on exploded parts diagram)
(#26) O-Ring Seal
for Pro-Series
Crankcase Cover
P/N: 301617
(#26) O-Ring Seal
for Bolt-On
Crankcase Cover
P/N: 300602
*This is a quick reference quide to your sizes, they are as accurate as possible allowing for some variances.
RHINO TOOL COMPANY, INC.
P.O. Box 111 | Kewanee, IL 61443
Please visit: www.rhinotool.com to find your nearest servicing Rhino Dealer
301815.03.21.18
(#19) Chuck Tube or Sleeve
O-Ring Seal
P/N: 301618
(#14) Large
Retainer O-Ring
Seal (2) P/N:
301614
(#18) Anvil O-Ring
Seal P/N: 301616
(#8) O-Ring Seal for
Piston and Hammer
(2) P/N: 301610
Rhino
®
Rhino
®
Fence-Pro
Standard Configuration
10
9
8
7
21
23
24
22
31
30
29
21
1: Loosen the two 5/32" bolts on the Throttle (#12). Do Not Remove Them.
2: Mark the top side of the Handle Collars (#3) with a black marker or alike as they are specific on the
direction they are installed. Using a 1/4" Hex Wrench, remove the two 5/16" bolts (#1) recessed in the
Top Handle Assembly (#2). Caution as the Handle Collars (#3) are under tension from the
Handle Springs (#4). Set aside.
3: Using a 1/4" Hex Wrench, remove the four 5/16" bolts (#22) from the lower body (#20). Take down
the Lower Body with both Side Handles (#21). Remove the Throttle (#12) from the Side Handle.
4: Discard the used Chuck Tube O-Ring (#19).
5: Extract the Anvil O-ring Cup (#16) and its components; Large Retainer (#15) and Large Retainer
O-rings (#14) from the Lower Body (#20). This can be done by pushing a 1" dowel rod or hammer
handle into the chuck tube from the opposite side. Note order of assembly. Inspect for damage.
6: Remove the Anvil (#17) from the Chuck Tube in the Lower Body (#20). Inspect for damage.
Remove the Anvil O-ring (#18) and discard. Lubricate the Anvil's O-ring groove with the lubricant
supplied with the kit and install the new Anvil O-ring, reseat the Anvil into the Chuck Tube.
Fence-Pro
Service Kit Installation
5
4
3
6
1
11
4
3
4
13
20
19
18
17
16
15
14
4
2
1
12
