Shark WANDVAC WV203ANZ Quick Start Manual

CORD-FREE HANDHELD VACUUM
WV203ANZ
WHAT'S INSIDE

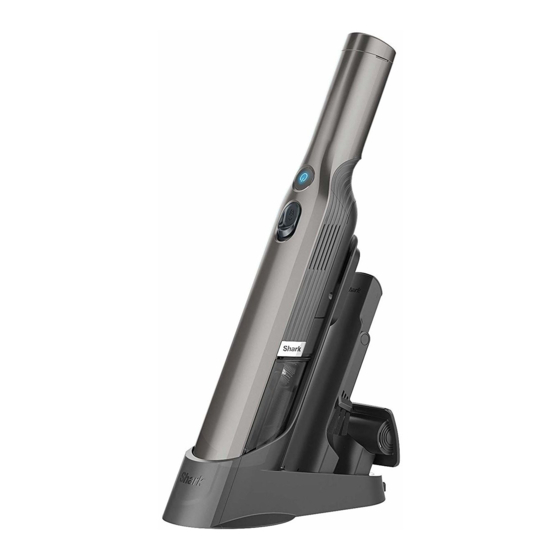

Shark Wandvac™ Handheld ION Charging Stand
A D
Duster Crevice Tool ION Charging Base
B E
Multi-Surface Pet Tool Accessory Storage Tray
C F
A B
ION CHARGING STAND ASSEMBLY
D
2 3
E
1
1. Align the holes in the bottom of 3. Route the cord
the ION Charging Stand with the
posts on the front of the Charging
Base. Run the Charger Cord
between the posts.
2. With the cord in place, slide the 4. Insert the Accessory
stand down until it clicks securely
into place on the base.
IMPORTANT SAFETY INSTRUCTIONS – FOR HOUSEHOLD USE ONLY
®
WARNING
To reduce the risk of injury, fire, electric shock, and property damage
resulting from improper use of the appliance, carefully observe the
following instructions. This unit contains electrical connections and
moving parts that potentially present risk to the user.
POWER SUPPLY, CHARGING DOCK, AND VACUUM CONTAIN
ELECTRICAL CONNECTIONS:
1. There are NO serviceable parts.
2. DO NOT use to vacuum any liquids.
3. DO NOT immerse in water or other liquids.
4. If vacuum is damaged, discontinue use.
5. To avoid fire, explosion, or injury, inspect vacuum and charging dock for any damage before use.
DO NOT use damaged vacuum or charging dock.
6. DO NOT use outdoors or on wet surfaces. Use only on dry surfaces.
7. If vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or immersed in
water, call Mann&Noble Customer Service on AU 02 8801 7666 NZ 0800 1 12 660 for advice.
8. DO NOT handle charger or vacuum cleaner with wet hands.
9. DO NOT leave vacuum cleaner unattended while powered on.
10. Keep vacuum away from heated surfaces.
11. Always turn off vacuum before connecting charging dock.
12. Use only Shark® chargers and batteries. Other types of batteries may burst, causing injury and damage.
13. Use charging dock on flat and stable surfaces only.
14. DO NOT incinerate appliance, even if it is severely damaged, as lithium-ion battery may explode in a fire.
GENERAL USE
15. DO NOT carry the charger by the cord or yank to disconnect from an outlet; instead grasp the plug and pull
to disconnect.
16. Keep charger cord away from heated surfaces.
17. Use only as described in this manual.
18. Keep your work area well lit.
19. To avoid unintentional starting, always turn off the vacuum cleaner before picking it up or carrying it, and
before attaching or detaching the charger, dust cup, filter, or any accessories.
20. DO NOT put any objects into openings.
21. DO NOT use if any opening is blocked; keep free of dust, lint, hair, or anything that may reduce airflow.
22. This vacuum is not a toy, and must not be played with. Children over 8 years old and persons with reduced
physical, sensory, or mental capabilities may only use the vacuum with supervision or prior safety instruction and
an understanding of the hazards involved. Children may not clean or maintain the vacuum without supervision.
C
F
4
through the groove
in the bottom of the
base and out the
indent in the back.
Storage Tray into the
NOTE: During first use, run the battery all the way down to properly
opening behind the
condition it, then charge fully. It takes approximately 2.5 hours to
charging stand.
charge battery completely.
READ CAREFULLY BEFORE USE – SAVE THESE INSTRUCTIONS
CHARGING THE BATTERY
Prior to first use,
the lithium-ion battery
must be charged
completely, even if
it comes with a
partial charge.
Place the Shark
Wandvac™ Handheld
onto the Wandvac
Charging Dock with the
nozzle in the cradle.
Plug the charging dock
into a wall outlet.
In Use Low Battery
Solid blue Blinking
Charging Charged
Fades in Dim
and out
23. DO NOT use without dust cup and filter in place.
24. DO NOT use if airflow is restricted; if the air paths become blocked, turn off the vacuum cleaner. Clear all
obstructions and power on again.
25. Keep nozzle away from hair, face, fingers, uncovered feet, or loose clothing.
26. Only use manufacturer's recommended attachments.
27. DO NOT charge at temperatures below 50°F (10°C) or above 104°F (40°C). Charging improperly or at
temperatures outside of the specified range may damage the battery and increase the risk of fire.
28. Store the appliance indoors. DO NOT use or store it below 37.4°F (3°C). Ensure the appliance is at room
temperature before operating.
DUST CUP/FILTERS/ACCESSORIES
Before turning on the vacuum:
29. Make sure filter is thoroughly dry after routine cleaning.
30. Make sure dust cup and filter are in place after routine maintenance.
31. Make sure accessories are free of blockages and keep openings away from face and body.
32. Use only Shark® brand filters and accessories. Using other brands will void warranty.
GENERAL CLEANING
33. DO NOT vacuum up hard or sharp objects such as glass, nails, screws, or coins that could damage the vacuum cleaner.
34. DO NOT vacuum up drywall dust, fireplace ash, or embers.
35. DO NOT use as an attachment to power tools for dust collection.
36. DO NOT vacuum up smoking or burning objects such as hot coals, cigarette butts, or matches.
37. DO NOT vacuum up flammable or combustible materials (e.g., lighter fluid, gasoline, or kerosene) or use
vacuum in areas where they may be present.
38. DO NOT vacuum up toxic solutions (e.g., chlorine bleach, ammonia, or drain cleaner).
39. DO NOT use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing
substances, flammable dust, or other explosive or toxic materials.
40. DO NOT immerse vacuum cleaner in water or other liquids.
41. Use extra care when cleaning on stairs.
LITHIUM-ION BATTERY
42. The battery is the power source for the appliance. DO NOT carry the appliance with your finger on the power
button. DO NOT charge appliance with the power on.
43. Use only the included charging dock to charge. Use of incorrect charger may create a risk of fire.
44. Use appliance only with included lithium-ion battery. Use of any other battery may create a risk of injury and fire.
45. Under abusive conditions, liquid may be ejected from the battery. Avoid contact with liquid, as it may cause
irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
46. Store the appliance indoors. To maintain battery life, DO NOT use or store battery at temperatures below
37.4°F (3°C) or above 104°F (40°C).
47. DO NOT expose appliance to fire or temperature above 266°F (130°C) as it may cause explosion.
48. There are NO serviceable parts. To ensure safety, DO NOT modify or attempt to repair the appliance.
USING YOUR SHARK WANDVAC™ HANDHELD
1
3
1. Press Power button.
2. Run the nozzle over the surface to be cleaned.
3. To empty the dust cup, hold your ION Handheld over the trash.
4. Slide dust cup button forward to release debris.
NOTE: For maintenance, see reverse side.
2
4
