Summary of Contents for IRIS OC821
- Page 1 OC821 Iris Outdoor Camera Set-Up Guide ™...
-
Page 2: Outdoor Camera

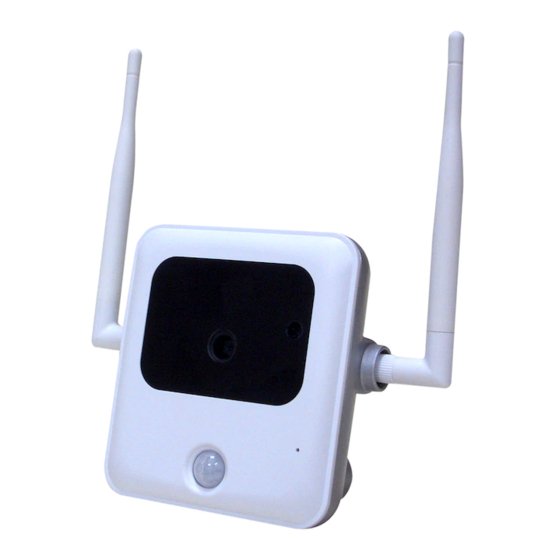

Overview Thank you for choosing Iris™ as your self-monitored home security service. The outdoor video camera is an integral part of the Iris™ system. The camera comes complete with an integrated On (Green) - microcomputer and high-quality digital image-sensor, enabling it to display high-quality... -
Page 3: Basic Setup
This chapter provides details on how to setup and mount the camera. System Requirement The Iris™ camera requires the Iris™ smart hub for operation. To use the wireless interface on the wireless model, other wireless devices must be compliant with the IEEE802.11b, IEEE802.11g or IEEE 802.11n speciications. -
Page 4: Rear Panel
Camera to your router for initial coniguration with Iris. Once coniguration is complete, On (Green) - you may add your home network wireless settings to the camera via the Iris website. The Of - camera can then be disconnected from the router, and the supplied water sealing LAN port cover should be installed. -
Page 5: Setup The Camera
3. Select devices. 4. Follow the on screen instructions. The Iris™ system will ind your camera and add it 1. LAN port to your system. Adding your Iris™ camera to a new Iris™ system: 1. Set-up your camera as described in the steps above. - Page 6 NOTE: Prior to permanently installing your camera, ensure that it is within range of your wireless router. To test it is working, place the camera in its inal location and use the Iris website or mobile app to stream live video. Tips for Best Outdoor Camera Placement a.
- Page 7 OC821 Iris Outdoor Camera ™ Step 3: Atach the stand and swivel connector to the base by turning clockwise Step 4: Attach the Outdoor Camera to the swivel connector by turning it clockwise On (Green) - Of - 1. LAN port Step 5: Finalize the Outdoor Camera’s Mount a.
- Page 8 Outdoor Camera ™ Appendix A Specifications Camera Model Network Camera OC821 103 mm (W) x 94 mm (H) x 43 mm (D) Dimensions Video compression H.264, MPEG4 and MJPEG 1280 x 720 (720p), 640 x 480 (VGA, system default), Image resolution...
-
Page 9: Fcc Radiation Exposure Statement
OC821 Iris Outdoor Camera ™ FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
