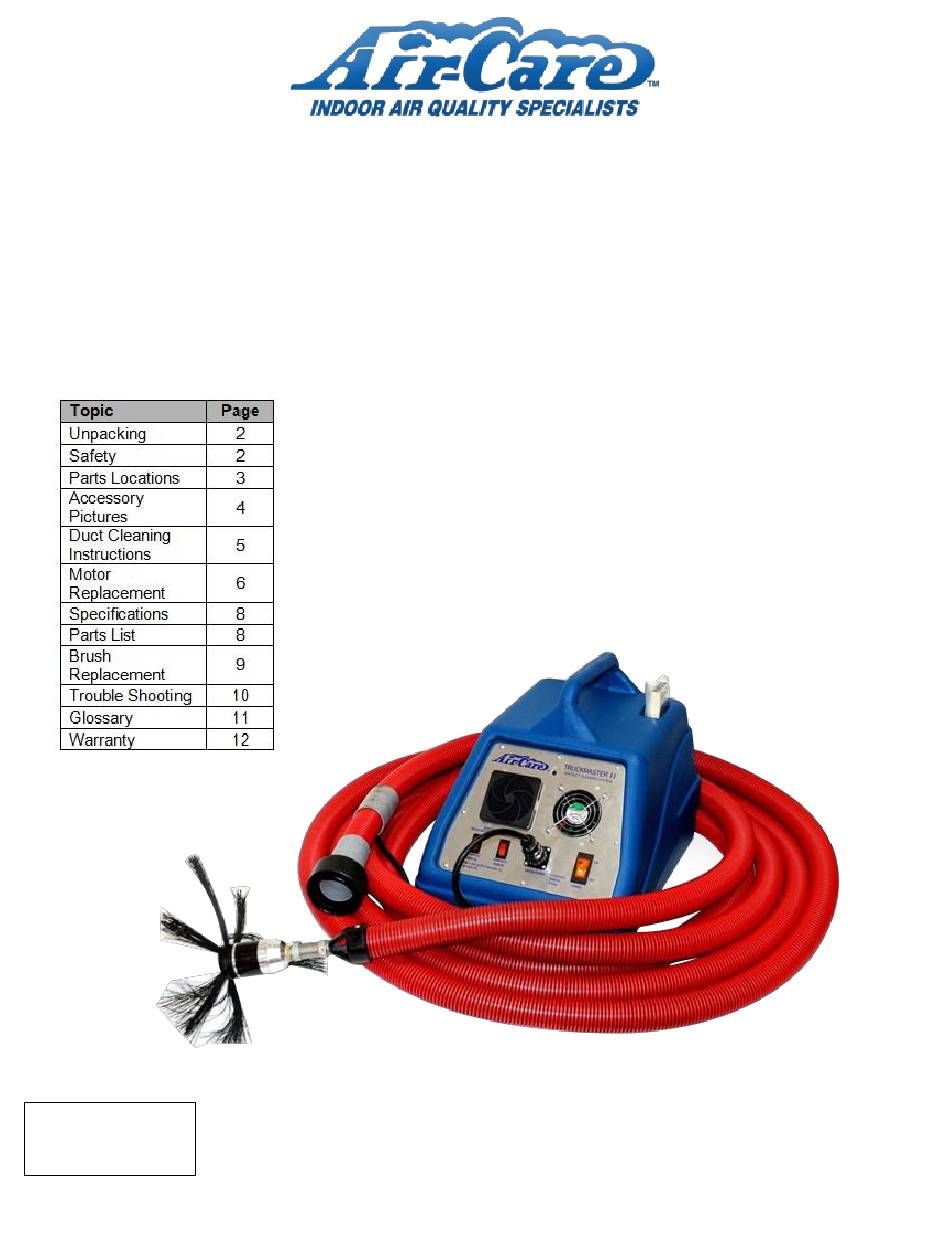

- Page 1 TruckMaster II Duct Cleaner for Use with Truck Mount Carpet Vacuums OPERATING INSTRUCTIONS MANUAL TruckMaster II Duct Cleaning System Part #: FG0193 MM0205 TruckMaster Manual Updated 04/19/2016 Page 1 of 12...
-
Page 2: Safety Precautions
All Air-Care equipment is designed for US standard 115 volt, 60 Hz AC. The Air-Care TruckMaster II will operate from 100 to 240 Volt AC, 50/60 Hz Power. Always check the specifications on the equipment before connecting electrical power to Air-Care Equipment. - Page 3 TruckMaster II Parts Locations Page 3 of 12...
- Page 4 Clip for Pocket or Belt Infrared Window Battery Compartment Cover Red LED Indicator Brush Motor RUN and STOP Button 2 x AA Battery Compartment Brush Motor Forward and Reverse Button Truck Mount Solution Hose connection Truck Mount Vacuum Hose Connection Connection to TruckMaster Vacuum Hose 12”...
- Page 5 Duct Cleaning with the Air-Care TruckMaster II The Air-Care TruckMaster II has a unique dual function. The motorized brush on the end of the vacuum hose assembly agitates the dust and debris in the air duct, while you’re Truck Mount Vacuum functions as the debris collector.
- Page 6 All 3 wires will need to be the same length for this new Motor Connection. 3. You will no longer need any of the parts in the original motor assembly unless you are returning it to Air-Care with an RMA for warranty evaluation. Installing the NEW motor assembly.
- Page 7 If there is no stiffener, just install the nut and tighten the screws. 15. Your repair and upgrade is now complete and ready to test. If you have any questions, please call Air-Care Tech Support, 800-322-9919. Page 7 of 12...
-
Page 8: Specifications
Specifications Specification Description 14.4” W x 19.5” D x 14” H Size 10.1 Pounds Weight 115 Volt AC, 60Hz, 5 AMPS Power requirements: (Optional: 220/240 Volt, 50/60 Hz, 3 AMPS) Power Cord 16 gauge, 3 wired, pigtail with grounded to 3 prong plug ... - Page 9 Pancake-Style Brush P/N SAO0307 w/12” Bristles: Updated: 7/7/14 The configuration of the 12” brush (0.021 Dia Bristles) for the TruckMaster and DuctMaster 1.5” vacuum hose and Motor has been changed to a flat, “Pancake-Style” hub that allows it to negotiate sharper turns in smaller air ducts than the previous type hub.
- Page 10 Panel Connector. 5. Wire in Motor Head Is Contact Air Care tech support. broken Call Air-Care for an RMA for a 1. The “crush proof” hose is There are holes in the red vacuum hose.
-
Page 11: Glossary And Acronyms
Glossary & Acronyms 1. ACGIH—American Conference of Government Industrial Hygienists 2. ASHRAE—American Society of Heating, Refrigerating, and Air Conditioning Engineers 3. Air Handler/ AHU—The Furnace or air conditioner that heats, cools and moves the air. 4. Antimicrobial—Agent that kills Bacteria, Molds and viruses. See “Sanitizer 5. -
Page 12: Limited Warranty
90 Days Brush Assembly No Warranty Warranty covers both parts and labor (labor is to be performed at Air-Care’s facility located at 3868 E. Post Road; Las Vegas, Nevada). Warranty is extended to the original purchaser and is not transferrable.
