Summary of Contents for One Control Tire Linc
- Page 1 Quick Start Guide Alert Indicator Powered by Technology CCD-0004068...
- Page 2 Quick Start Guide Pairing Alert Indicator to Repeater ......3 Operation ..............6 NOTE: The purpose of this Quick Start Guide is for a quick setup of the Alert Indicator for the Tyre Pressure and Temperature Monitoring System. Refer to the complete Aftermarket Manual https://support.lci1.com/tire-linc additional information.

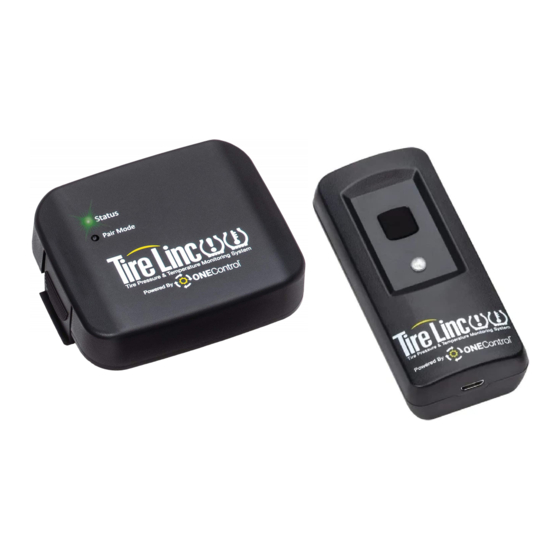

- Page 3 Pairing Alert Indicator to Repeater 1. Pair the Alert Indicator (Fig.1) to the Repeater by pressing and releasing the Alert Indicator button (Fig.1A). A. The Indicator will power up and its LED (Fig.1B) will blink red once then blue three times indicating the Alert Indicator is NOT linked to the Fig.1 repeater.
- Page 4 3. Release the Repeater’s Pair Mode III. After the Indicator beeps three button. times, release the button. The LED will blink green three times. 4. Press the Alert Indicator’s button (Fig.1A) once to make sure the B. The Alert Indicator’s LED will indicator is awake.
- Page 5 • Red followed by blue notes In- 7. Wait for the Repeater’s Status LED to turn off, then press and release dicator is not linked to the Repeater. the Alert Indicator’s button. The 8. Battery status indicators are as indicator’s LED will flash as follows: follows (regardless of LED color in •...
-
Page 6: Operation
Operation When Stem Sensors are under • moving/rotating, every one pressure, data is transmitted to the minute; Repeater when tyres are: • not moving/not rotating, scan- • moving/rotating, every one ning time increments in 1, 2, 4, minute; 8 and 15 minutes (maximum), •... -
Page 7: Deep Sleep Mode
• Red followed by blue notes Indi- Wait for the Repeater’s Status LED to turn off, then press and release the cator is not linked to the Repeater. Alert Indicator’s button. The indica- Battery status indicators are as fol- tor’s LED will flash as follows: lows (regardless of LED color): •... - Page 8 Contact Lippert Components Incorporated Should you have any questions, please do not hesitate to contact us at 574-537-8900 or by email at customerservice@lci1.com. Self-help tips, techni- cal documents, product videos and a training class schedule are available at lci1.com or by download- ing the MyLCI app.
