Summary of Contents for RigExpert TI-3000

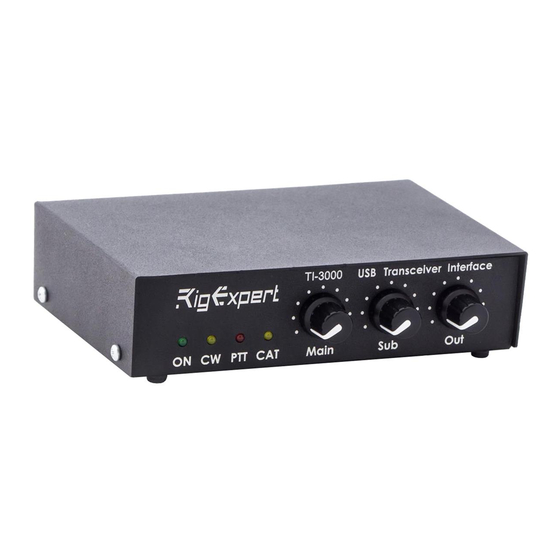

- Page 1 TI-3000 RigExpert ® USB Transceiver Interface User’s manual...
-
Page 3: Table Of Contents
Table of contents Introduction Operating the TI-3000 Front and rear panels Transceiver and computer connection Annexes Annex 1: Specifications Annex 2: Adjusting input and output audio levels... -
Page 4: Introduction
RigExpert TI-3000 is a device for • CAT interface for various transceiver operating phone, CW and digital modes models using personal computer with USB port. - Page 5 In RigExpert TI-3000, the squelch input is assigned to the DCD line of the COM port used for PTT and CW outputs. RigExpert TI-3000...
-
Page 6: Operating The Ti-3000
Operating the TI-3000 Front and rear panels Front panel: 5. Main. Input level, channel 1 (main 1. ON. Lights when the RigExpert TI-3000 receiver audio). device is plugged in and the drivers are installed. 6. Sub. Input level, channel 2 (sub- receiver audio). - Page 7 Rear panel: 8. TRANSCEIVER. 25-pin transceiver connector. 9. USB IN. Connect to the computer USB port. RigExpert TI-3000...
-
Page 8: Transceiver And Computer Connection
You may either order a transceiver cable with your TI-3000 or assemble it yourself. See the schematic diagrams on our website, www.rigexpert.com . A number of analog and digital signals are routed between your transceiver and RigExpert TI-3000. - Page 9 Use a standard USB A-B cable (up to 5 meters long) to connect your RigExpert TI-3000 to a USB port of your computer. It is recommended to use USB sockets located at the back panel of the PC. Once the cable is connected, computer detects a new device.
-
Page 10: Annexes
Annex 1 CAT serial port: Specifications • Baudrate: 300-115200 baud • Electrical compatibility: RS-232, CI-V, TTL or inverted-TTL (Yaesu, Icom, Kenwood, Ten-Tec, Elecraft and JRC General features: transceivers) • Transceiver audio interface for operating digital modes PTT/CW outputs: • CAT (Computer Aided Transceiver) •... - Page 11 • Single 25-pin connector for transceiver cable • Various transceiver models supported Dimensions: 145x 110x 40 mm (5.7 × 4.9 × 1.6 in) Operating temperature: 0…40 °C (32…104 °F) Weight: 200 g (7.05 oz) Warranty: 2 years RigExpert TI-3000 is made in Ukraine. RigExpert TI-3000...
- Page 12 You can adjust input and output audio levels by regulators on the front panel. However, it is possible to increase range of input and output audio levels by using 6 switches which are located on bottom side of TI-3000. User’s manual...
- Page 13 RigExpert TI-3000...
- Page 14 Copyright © 2019 Rig Expert Ukraine Ltd. “RigExpert” is a registered trademark of Rig Expert Ukraine Ltd. Doc. date: 27-Nov-2019...
