Stingray T2000 Series Installation & Maintenance Manual

5330 East 25th Street
Indianapolis Indiana 46218
Phone: (888) 445-4142
www.tepid.com
Stingray Systems

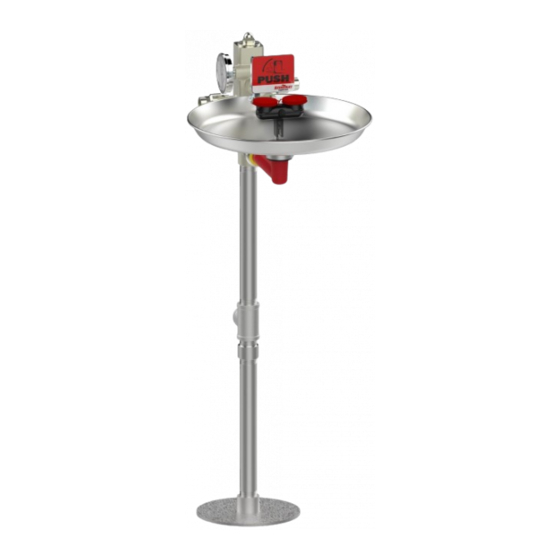

SERIES T2000
Floor Mounted
Eye/Face Wash
In order to comply with the ANSI Z358.1 Standard the
following notes should be observed:
• Station should be assembled and installed in accordance
with the manufacturer's instructions, including flushing fluid
delivery requirements.
• Station should be in accessible locations that require no
more than 10 seconds to reach. The eye/face wash station
shall be located on the same level as the hazard and the
path of travel shall be free of obstructions that may inhibit
its immediate use.
• Station should be located in an area
identified with a highly visible sign
positioned so the sign shall be visible
within the area served by the eye/face
wash station. The area around the eye/
face wash station shall be well-lit.
• Eye/Face wash flow pattern shall be positioned with
nozzles not less then 33 inches (83.8 cm) and no greater
than 53 inches (134.6 cm) from surface on which user
stands and 6 inches (15.3 cm) minimum from wall or
nearest obstruction.
• If shut off valves are installed in the supply line for
maintenance purposes, provisions shall be made to
prevent unauthorized shut off.
• Refer to ANSI Z358.1 to ensure compliance.
NOTES: It is recommended to flush pipes prior to installing
emergency eye/face wash fixture. Instructions should be
reviewed prior to starting the installation. Remove parts from
packaging and verify all necessary parts are accounted for
and not damaged. Please contact Stingray Systems for any
missing or damaged parts prior to starting installation.
Stingray Systems recommends that you work safely at all
times and in a manner consistent with the OSHA Lock/Tagout
standard, 29 CFR 1910.147 and other applicable standards.
tepid.com
Installation &
Maintenance Manual
Certified to ANSI Z358.1
