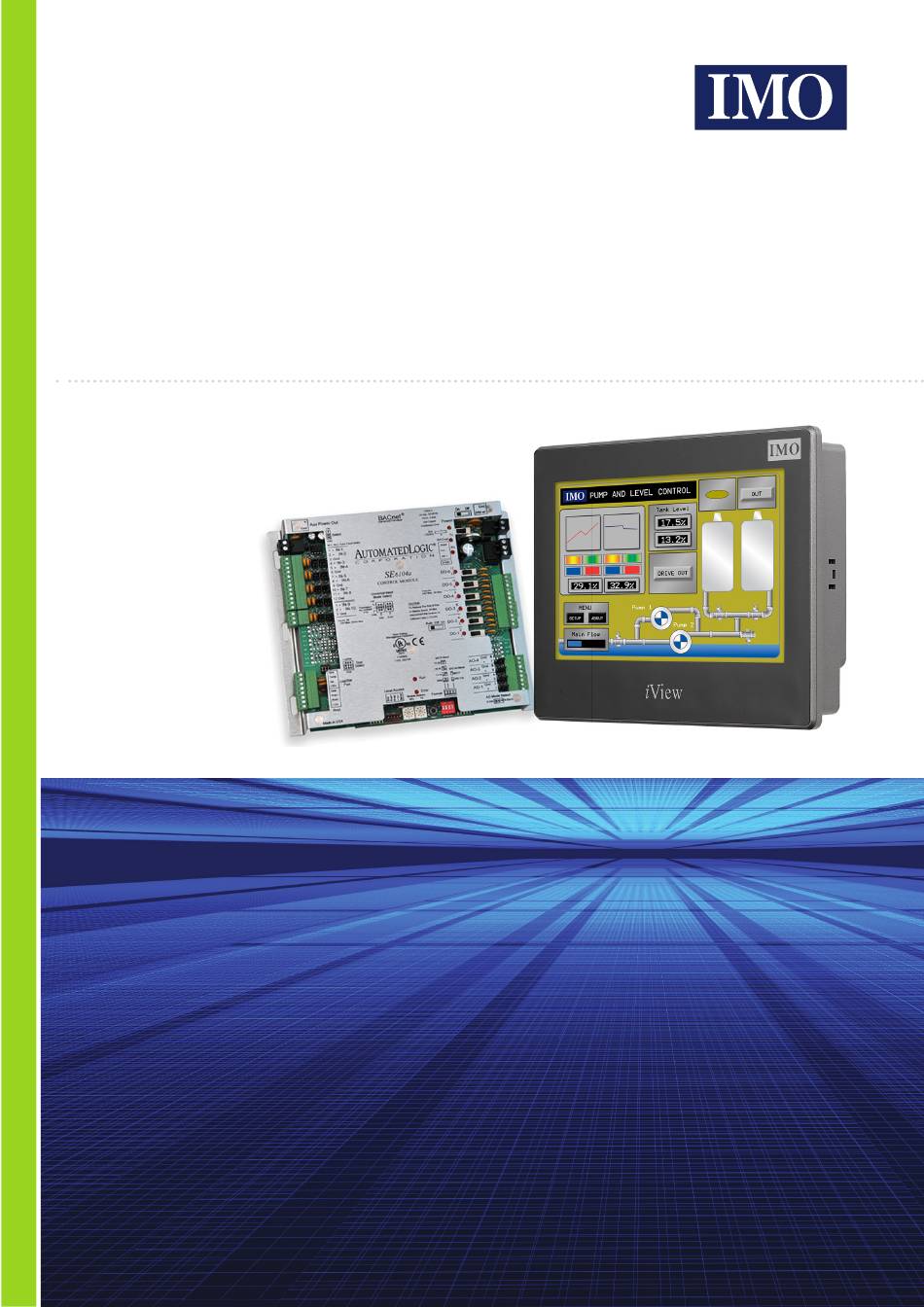

- Page 1 HMI BACnet IP Driver Setting Tutorial HMI solutions you can view...
- Page 2 Table Of Contents INTRODUCTION......................3 SETTING UP ......................4 HMI SETTING......................9 Information in this document is subject to change without notice and does not represent a commitment on the part of IMO Precision Controls Ltd. Ref: IV010R01215 www.imopc.com...

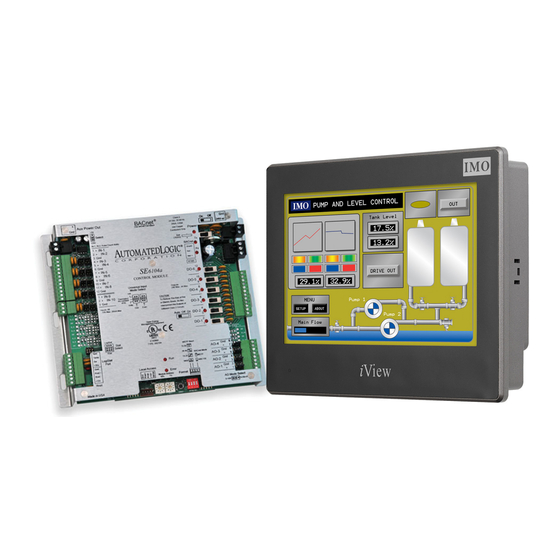

- Page 3 Introduction This document illustrates how to connect BACnet/IP devices with the iView Advanced HMI. Ref: IV010R01215 www.imopc.com...
- Page 4 Setting Up When you wish to link with the BACNet/IP device, please follow steps below to use the CAS BACNet Explorer to search on-line device: 1. CAS BACNet Explorer setting Ref: IV010R01215 www.imopc.com...
- Page 5 Apply the CAS BACNet Explorer tool Step 1: Press the “License” Step 2: Fill out one e-mail address to apply the “Product Key” and it can be used for 60-minutes. If you need to use several times, you can use same e-mail account to apply it. Step 3: Press the ”Request a key”, it will enter its website and key-in the e-mail account to execute the “Apply”...
- Page 6 BACNet/IP network setting Step 1: Select the “Network” Step 2: Select the “BACnet IP” and “BACnet Ethernet” Step 3: Key-in the “BACNet IP Port” Step 4: To make sure the the PC and BACNet/IP device is linking, to press the “Refresh” button to get the on-line device.
- Page 7 Press the ”Discover” button and select all device to press ”Send Ref: IV010R01215 www.imopc.com...
- Page 8 Sample: the object ID is ”9999” and this ID is the node address of the iView Developer software setting. Note: The node address of the iView Developer software (Before Ver1.2.57) is 0~32767. Please set the object ID to 0~32767. Device AV1=456.000 (Floating Point) Ref: IV010R01215 www.imopc.com...
- Page 9 HMI Settings Select [Device/Server: Honeywell àBACnet/IP Protocol] Setting HMI IP address to 192.168.1.34, and the Node Address=9999 (Object I.D.) Ref: IV010R01215 www.imopc.com...
- Page 10 Bit Device: Word Device: Ref: IV010R01215 www.imopc.com...
- Page 11 Fax: 905 799 0450 IMO South Africa Email: sales@imopc.com IMO Pacific Web: www.imopc.com IMO Russia IMO South Africa (Pty) Ltd IMO Pacific Pty Ltd Office N 4063 G16 Centurion Business Park 1/34 Fallon Road 9, Zemlyanoy Val, 105064 Montague Gardens...
