A-52xx DCS User Manual
V1.12 Edit: 2019.12.5
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the A-52 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ATC A-52 Series

Summary of Contents for ATC A-52 Series

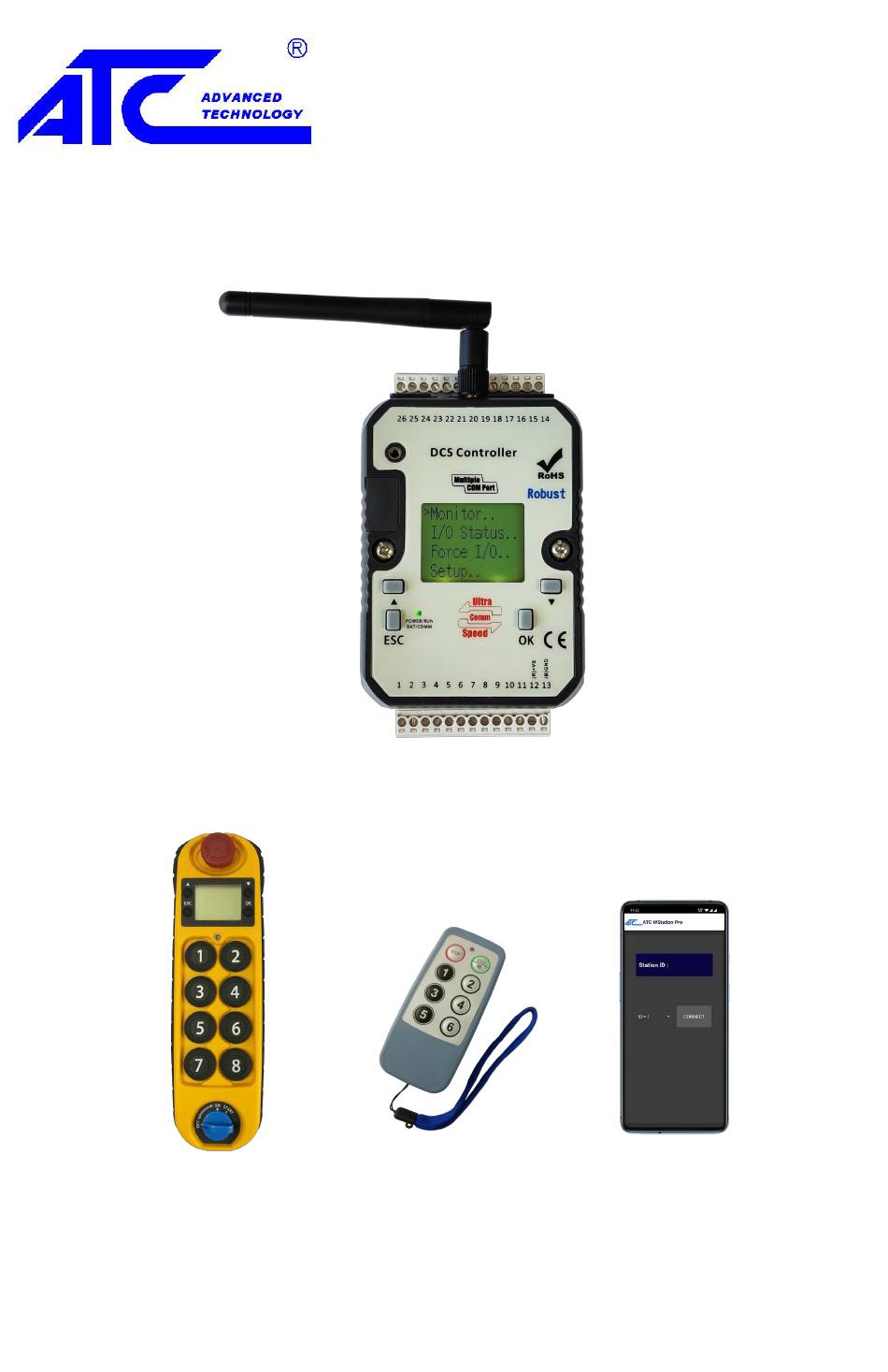

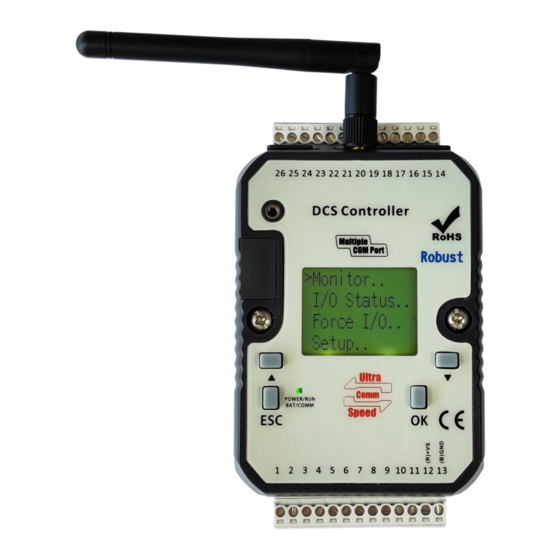

  • Page 1 A-52xx DCS User Manual V1.12 Edit: 2019.12.5...
  • Page 2  Android APP Quick Start The A-52 WiFi series controller had installed an initial program in it. You can use the smart phone to communicate with it directly. Operation Video:http://www.szatc.com/uploads/download_file/A52QuickStart.mp4. 1. You can download it from the below web link: http://www.szatc.com/uploads/download_file/ATCWStationPro.zip 2.
  • Page 3 4. Click the “ATC WStation Pro” APP, and press the Connect button. 5. WStation Pro Main menu. 6. Click the Station Input to control the A-52 WiFi series controller’s output. The I0, I1, I2, I3 button can control the controller’s DO0, DO1, DO2, DO3. And the controller will show (trigger) the related graph on...
  • Page 4 7. Click the Station Input I4 button can start the controller’s Stop Watch function. The controller’s LCM will also show the stop watch time value. 8. Press the Return button back to the main menu, and switch to the Station Analog Input. Adjust the AI0 or AI1 bar, the controller’s LCM will show the current analog value.
  • Page 5 A-52 WiFi controller. Please follow the step2 step 4 to check the setting.  A-52 series WiF i controller Display and ATP 2 (text panel) menu structure Depend on controller’s switch status (Init/Normal), the display will show below figure, and can via button to complete below setting.

  • Page 6: Quick Start

    Quick Start: If would like to modify the program parameter 1. Turn controller switch to Init mode. 2. Choose Program -> Edit -> Edit Program 3. Display will show related block parameter, can use ▲UP or ▼DOWN button to select the block, and press OK more than 3 Sec to modify.
  • Page 7 1. Init mode 1.1 Program menu 1.1.1 Edit menu In the Edit menu, you can edit the parameter as above graph. Edit Param: It will show all blocks No and parameter, you can use the ▲▼button to choose the block you would like to edit.
  • Page 8 1.1.3 Msg Config This menu can edit the Message Text’s block display time. You can edit the Analog Time, Tick Time and CurrCharSet in this menu. Analog Time: the initial value is 100 ms. Tick Time: the initial value is 1000 ms (1 Sec). Current Character set: CharSet1 or CharSet2.
  • Page 9 1.3.1 Module info: You can detect the controller’s firmware version, temperature and series number, the value just read only. 1.3.2 Com_Port: You can detect the controller’s com port parameters. The parameters just read only. Or you can use the ATC Editor software to edit it. 1.4 WiFi Setup menu...
  • Page 10 Remote: In this mode, the device will set to WiFi Remote IO Module. It can communicate with the WiFi AP router, but can’t communicate with the Server device. The performance is as same as the ATC A-1 series Remote IO Module.
  • Page 11 IP Address: Edit the IP address. Port: Edit the port. 1.4.2 Network SSID: In the Server mode, you can name the Sever mode’s SSID. In the Station & Groups mode, you must type the Server item’s SSID. In the Remote &...
  • Page 12 2.2.1 D. Input: You can read the Digital Input status. 2.2.2 D. Output: You can read the Digital Output status. 2.2.3 D. Flag: You can read the Digital Flag (M) status. 2.2.4 A. Input: You can read the Analog Input status. 2.2.5 A.
  • Page 13 2.3.3 Force Out On: You can Force On Output in this menu. Press OK more than 3 Sec to edit it. ESC & OK to choose the IOs,▲or ▼to change the status. When complete setting, press OK more than 3 Sec to save it. 2.3.4 Force Out Off: You can Force Off Output in this menu.
  • Page 14 2.5 System inf. You can read the device information on this menu. The information involves IP Address, MAC Address, SSID, Device Mode, Device ID, Port. 3. ATC Editor Quick Setup ATC Editor download web link: http://www.szatc.com/download/category/controller-io-module-software 3.1 Open a new program file 3.2 Choose the hardware as the 52series...
  • Page 15 Contact us Shenzhen ATC Technology Co.,Ltd Add. Room 803, Block D, Building 16, South Station Enterprise City,Port Road Nanhai District, Foshan, China,528251 Tel: (86 757) 8676 7929 --------------------------------------------------------------------------------------- NOTES:ATC company has been move to Foshan on March 29.2019 Website:www.szatc.com E-mail:sales@szatc.com...
