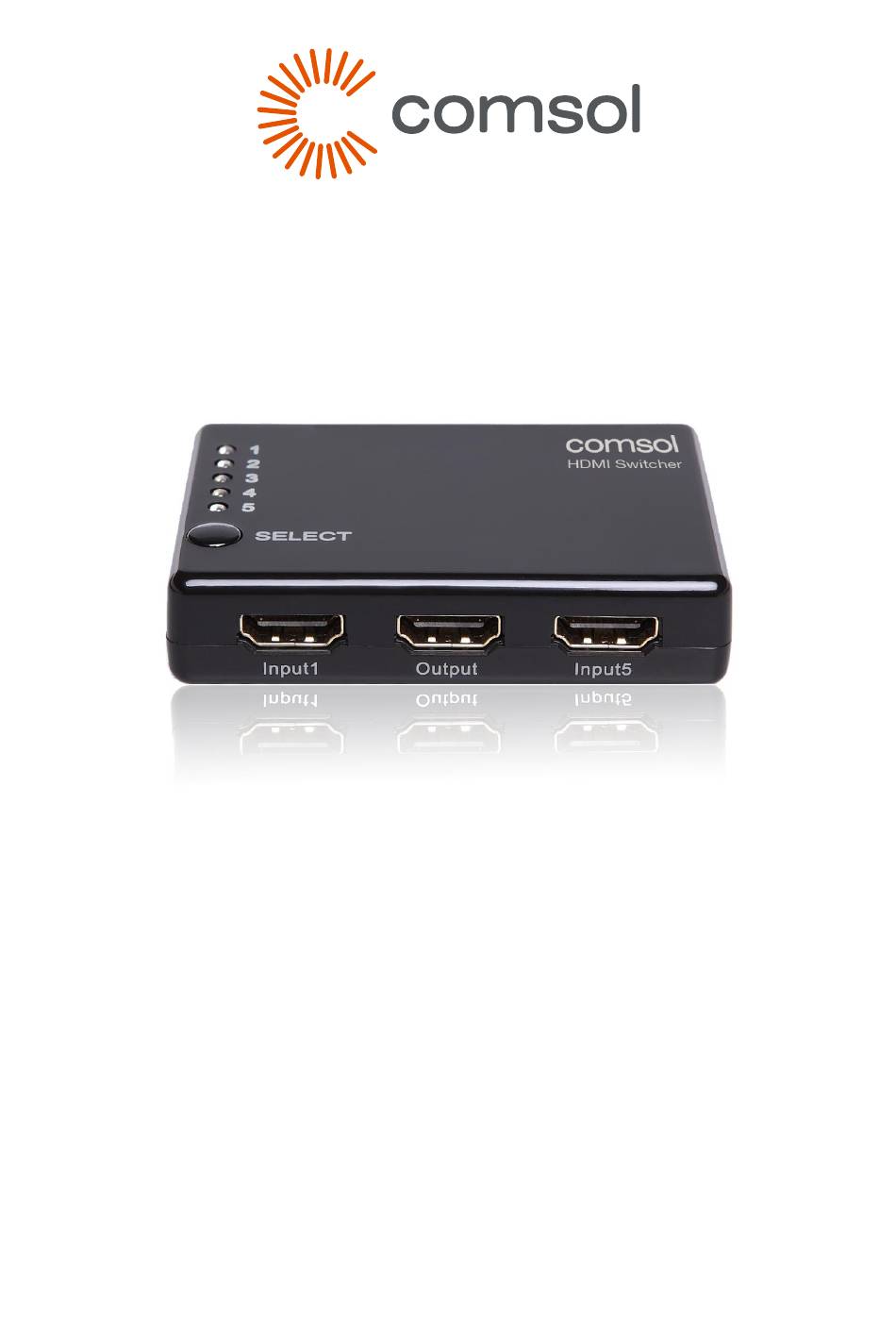

HD5014K
5 Port 4K2K HDMI Switch
User Manual
1. Introduction ............................................................................... 1
2. Automatic Function .................................................................. 1
3. Features ..................................................................................... 1
4. Specifications ............................................................................ 2
5. Package Contents ..................................................................... 2
6. Panel Descriptions .................................................................... 3
7. Connection & Operation .......................................................... 3
Advertisement
Related Manuals for COMSOL HD5014K
Summary of Contents for COMSOL HD5014K
- Page 1 HD5014K 5 Port 4K2K HDMI Switch User Manual 1. Introduction ................1 2. Automatic Function ..............1 3. Features ..................1 4. Specifications ................2 5. Package Contents ..............2 6. Panel Descriptions ..............3 7. Connection & Operation ............3...

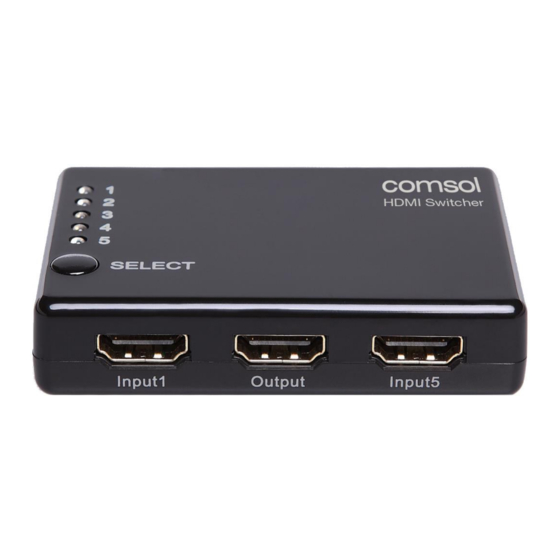

- Page 2 5 Port HDMI Switch 1. Introduction This 4K2K HDMI switch will switch up to five HDMI sources to one HDTV or HDMI monitor. Perfect for switching between your DVD, Blu-ray player, set top box, gaming console, media player, foxtel box or other HDMI source. Switch between inputs using push button, included remote control or automatic function.
- Page 3 5 Port HDMI Switch 4. Specifications Input Connector 5 x HDMI Female Connectors Output Connector 1 x HDMI Female Connector Maximum Resolution 3840 x 2160 @30Hz Video Bandwidth per Channel 300MHz/3Gbps Total Video Bandwidth 10.2Gbps HDCP Version HDCP 1.3 HDMI Version HDMI v1.4 Operating Temperature 0℃...
- Page 4 5 Port HDMI Switch 6. Panel Descriptions 7. Connection & Operation 1. Connect one end of an HDMI cable into the output port of the switch and the other end of the cable into the HDMI port on your HDTV or HDMI monitor.
