Speedaire 1WC95 Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or
maintain the product described. Protect yourself and others by observing all safety information. Failure to
comply with instructions could result in personal injury and/or property damage! Retain instructions for
future reference.
Speedaire
Twin Cylinder Air Compressor
Description

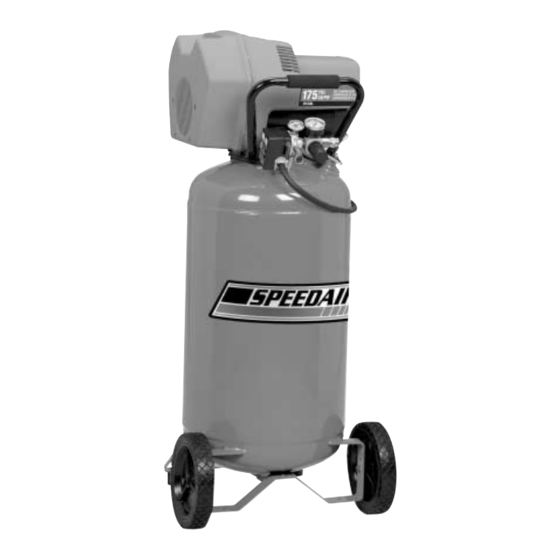

Speedaire twin cylinder, direct drive, oil free air compressor
designed for durability and no maintenance. Featuring a 25
gallon tank, high flow air regulator, and a larger air regulat-
ed pressure gauge this unit is for home, farm, and medium
duty industrial use at a 50/50 duty cycle.
Unpacking
1. Remove all packaging
leaving the air compres-
sor on the pallet.
2. Remove and discard the
(4) screws holding the air
compressor to the pallet.
Screws
Form 5S4673
®
Permanently Lubricated
Specifications
Horsepower . . . . . . . . . . . . . . . .1.6
Cylinders . . . . . . . . . . . . . . . . . . . . .2
Air Delivery - SCFM @ 90 . . . . . .5.1
Maximum Air Pressure(psi) . . . .175
Tank Size (gallons) . . . . . . . . . . .25
Voltage @ 60 Hz., 1- Phase . . . .120
Amperage (Amps) . . . . . . . . . . . .15
Overall Dimensions
L W
23" 23"
necessary to brace or sup-
port one side of the air
compressor when remov-
ing the pallet because the
air compressor will have
a tendency to tip.
3. Carefully remove the air
compressor from the pal-
let.
Printed in U.S.A.
03465
1001/183/VCPVP
H Weight
53" 150 lbs.
After unpacking unit,
It may be
inspect carefully for any
damage that may have
occurred during transit.
Check for loose, missing, or
damaged parts. Shipping
damage claim must be filed
with carrier.
D24848
