Rear Exhaust Wet Grinder

OWNER'S MANUAL & PARTS LIST

Revision 101

Manual Part # 166553-OM

Caution: Read all safety and operating

instructions before using this equipment.

This manual MUST accompany the

equipment at all times.

04.2019

Barranca Diamond Products, Inc.

1315 Storm Parkway

Torrance, CA 90501

Toll-Free: (800) 630-7682

Phone: (310) 523-5867

Fax: (310) 257-3063

www.barrancadiamond.com

Table of Contents

Need help?

Do you have a question about the BD-5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Barranca Diamond BD-5000

Page 1 BD-5000 Rear Exhaust Wet Grinder OWNER’S MANUAL & PARTS LIST Revision 101 04.2019 Barranca Diamond Products, Inc. Manual Part # 166553-OM 1315 Storm Parkway Torrance, CA 90501 Caution: Read all safety and operating Toll-Free: (800) 630-7682 instructions before using this equipment.
Page 2 INTRODUCTION Congratulations on your purchase of a BD-5000 Wet Grinder. We are certain that you will be pleased with your purchase. Barranca Diamond takes pride in producing the finest construction power tools and diamond blades in the industry. In order to help you, we have included this manual. This owners manual contains information neces- sary to operate and maintain your BD-5000 safely and correctly.
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY Safety Precautions California Proposition 65 Warning Product Specifications ASSEMBLY Unpacking Contents Assembly MAINTENANCE Maintenance TROUBLESHOOTING Troubleshooting EXPLODED VIEW Exploded View & Parts List 14-16 THEORY Theory ACCESSORIES Accessories RETURN, & CUSTOMER SERVICE Return & Customer Service 18-19...
Page 4: Safety Precautions
BD-5000 SAFETY Read and follow all safety, operating and maintenance instructions. Failure to read and follow these instructions could result in injury or death to you or others. Failure to read and follow these instructions could also result in damage and/or reduced equipment life. Safety warnings and guidelines do not by themselves eliminate danger.
Page 5 BD-5000 SAFETY PERSONAL PROTECTIVE EQUIPMENT ALWAYS wear approved respiratory, head, ear and eye protection when operating this machine. ACCIDENTAL STARTS! Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre- vent accidental starting. Place the ON/OFF switch in the OFF position before performing any service operation.
Page 6 BD-5000 SAFETY SECURE WORK Clamps or a vise should be used to hold work whenever practical. Keeping your hands free to operate a power tool is safer. DO NOT OVERREACH Keep proper footing and balance at all times by not overreaching.
Page 7 BD-5000 SAFETY NEVER LEAVE A TOOL UNATTENDED TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS turn a power tool OFF when leaving the work area, or, when a cut is finished.
Page 8: California Proposition 65 Warning
BD-5000 SAFETY SILICA DUST WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis.
Page 9: Safety

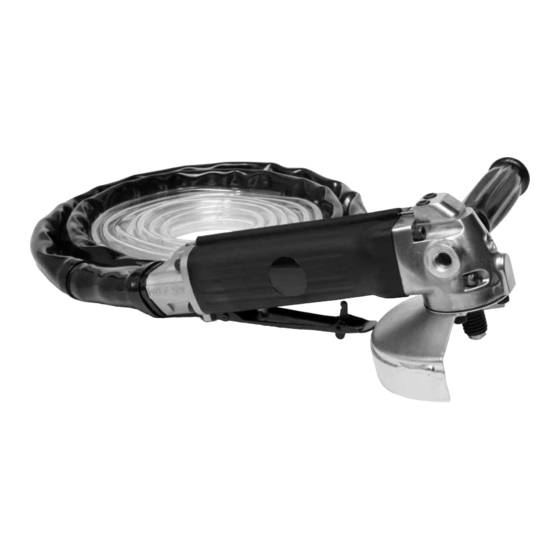

Rear air vent removes exhaust through a hose protector, away from operator’s hands. It consumes 165 CFM at 90 PSI, requiring a 5 HP compressor. Maximum disc size is 5”. The BD-5000 comes with 25' water hose, 5' air hose, 4' air/water hose protector, handle and wrench. Ninety day limited warranty.
Page 10: Unpacking
Torrance, CA 90501 dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall Barranca Diamond be liable for consequential damages arising out Caution: Read all safety and operating Toll-Free: (800) 630-7682 of the failure of any product if operated improperly.
Page 11: Assembly
BD-5000 ASSEMBLY Attach the hose nipple to the Thread the air hose to the Tighten the air hose nut. water hose. grinder air hose fitting. Thread the water hose to the Tighten the water hose Slide the exhaust hose water hose fitting.
Page 12: Maintenance
BD-5000 ASSEMBLY Screw on Cup Wheel and Turn the water on to desired Place wrench on bottom of tighten. water volume. spindle. Use handle to control air flow. Begin grinding. Maintenance Use 3-4 drops of spindle/machine Grease gears as needed using a oil in the air intake valve.
Page 13: Troubleshooting
BD-5000 TROUBLESHOOTING NOTE: • Do not submerge the grinder in water. Water and moisture will harm and rust the inner parts of the grinder. • Excessive downward force on grinder will result in premature failure of gears and bearing. WORN...
Page 14 BD-5000 EXPLODED VIEW BD-5000 WET GRINDER P/N 166553X...
Page 15 BD-5000 PARTS LIST BD-5000 WET GRINDER P/N 166553X ITEM DESCRIPTION PART# QTY. INLET BUSHING 180-1 161461 WATER HOSE #1110A-61 161690 ADAPTER,HOSE,1110A-22 161320 SCREW, CAP, #ZM50-150 162410 WASHER,HSW-50 167053 OUTER PIPE, 241RW-7 167054 PIPE BUSH, #1110-17 161451 O-RING, #P-4 161732 STEEL BALL, #SB-1/8...
Page 16 BD-5000 PARTS LIST BD-5000 WET GRINDER P/N 166553X ITEM DESCRIPTION PART # QTY. BALL BEARING, 6201 162587 PINION GEAR, 240RW-13 167088 GASKET, 241RW-17 167089 CAP SCREW, Z-M50-120 167090 PIPE CONNECTOR, 241RW-8 167091 INNER PIPE, 241RW-6 167092 ANGLE HEAD, 241RW-2 167093...
Page 17 BD-5000 THEORY Polishing pads are designed to achieve a monument quality finish on all straight or shaped surfaces. The unique design of the polishing pads allows for rapid and even surface removal rates of the mate- rial being polished with minimal effort. When used correctly, these pads provide a clear advantage over all other polishing methods.
Page 18 BD-5000 ACCESSORIES ACCESSORIES ITEM DESCRIPTION PRODUCT Arbor 7/8"-5/8" 155444 4" MK-304CG-1 Nut 5/8" -11 155684 Arbor 7/8"-5/8" 158068 5" MK-304CG-1 Nut 5/8" -11 158376 Arbor 7/8"-5/8" 155445 4" MK-304SG-2 Nut 5/8" -11 155686 Arbor 7/8"-5/8" 158069 5" MK-304SG-2 Nut 5/8" -11 1583765 Arbor 7/8"-5/8"...
Page 19 Barranca Diamond Customer Service department at (800) 630-7682 M-F 8am - 5pm PST. Barranca Diamond warrants to the original retail purchaser for a period of 90 days except as noted, from the date of purchase all products covered by this Warranty to be free of defects in materials and workmanship.
Page 20 Blades and bits damaged due to careless or improper use are not covered under this war- ranty. Exclusions: Barranca Diamond does not warrant the following components, which carry their own manufacturer’s warranty for the indicated periods: Electric Motors Manufacturer’s Warranty...
Page 21 • Date of purchase • Distributor’s name Then please call Barranca Diamond at (310) 523-5867 or toll free at 800-630-7682 to obtain a Return Goods Authorization number (RGA) authorizing the return. Please Note: • Ensure your item(s) are prepaid to the destination •...
Page 22 NOTES...
Page 23 NOTES...
Page 24 BD-5000 Rear Exhaust Wet Grinder OWNER’S MANUAL & PARTS LIST Barranca Diamond Products, Inc. 1315 Storm Parkway Torrance, CA 90501 Toll-Free: (800) 421-5830 Phone: (310) 539-5221 Fax: (310) 539-5158 www.barrancadiamond.com...
