TEMPERED 500 Series Platform Manual

Conductor-500 and Airwall-500
e-mail: support@tempered.io
Phone: +1 206.452.5500 ext. 2
www.tempered.io
19410 HWY 99 STE A #119
Lynnwood, WA 98036

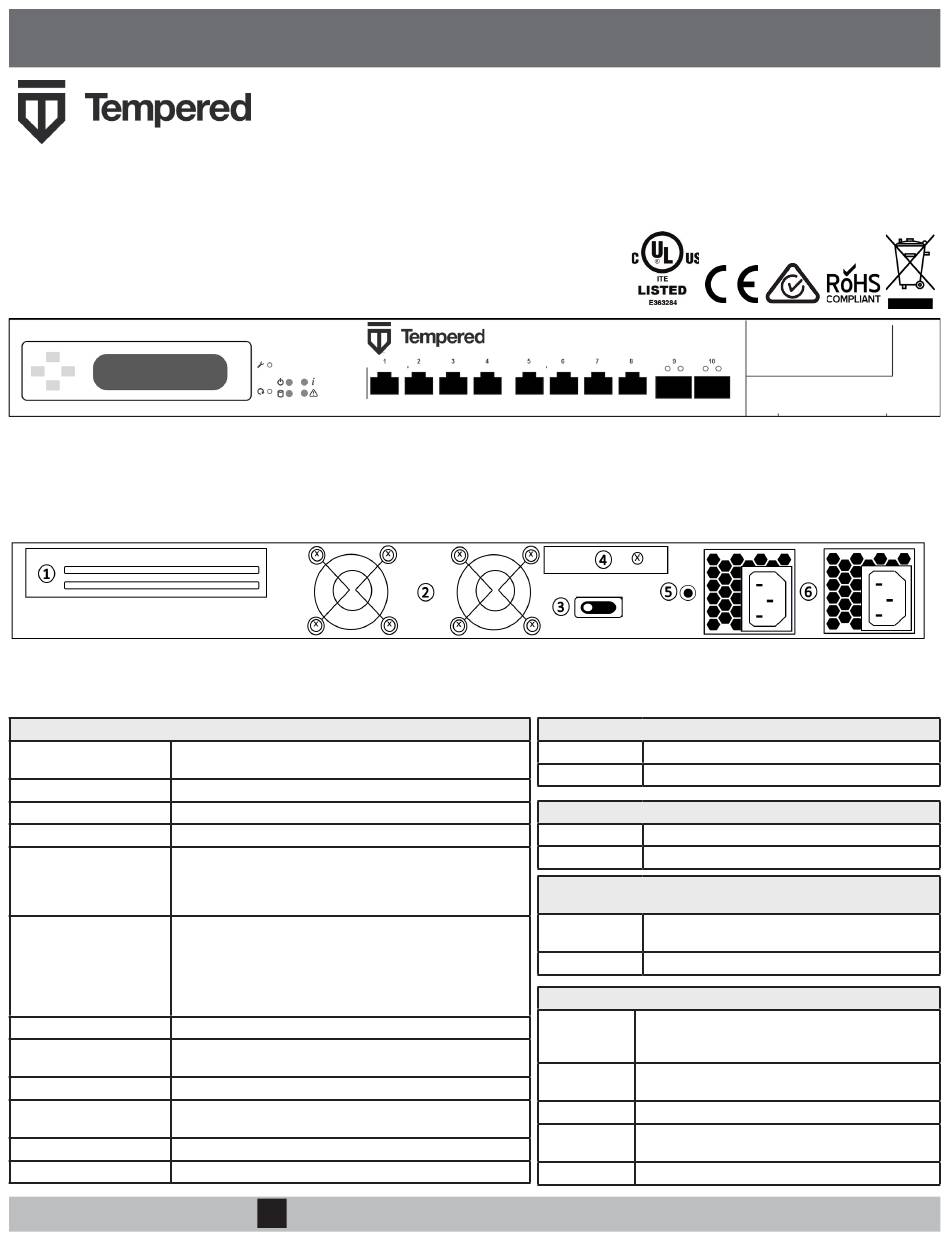

Front Panel Layout

1 2
1 Buttons for LCD display navigation
2 LCD display panel
3 Diagnostic/Reset button
4 (non-functional)

Back Panel Layout

1 Future expansion slots
2 Case exhaust fans

Specifications

500 Series Hardware
Ethernet Ports 8 x GbE on RJ-45 ports 1000/100/10M
2 x SFP GbE 1000/100M
Ethernet Expansion Bays 1
Power Supply (dual) 100-240V, 47-63Hz
Power Consumption 270W, max
Controls 1 Reboot button (actuated with pin)
1 Reset button (actuated with pin)
4 Push-buttons for LCD display unit
1 Power supply alert mute (back of unit)
Displays 1 Power LED
1 Activity LED
1 Status LED
1 Alert LED
1 2-line x 20-character LCD configuration and management
front panel
Storage Temp range -20° to 70° C (-4° to 158° F)
Operating Temp range Primary power: 0°C to +45°C (+32°F to +113°F)
Secondary power: 0°C to +40°C (+32°F to 104°F)
Operating humidity 5% to 90%, non-condensing
Dimensions 450mm W x 430mm D x 44mm H (17.7" W x 16.93" D x
1.74" H)
Mounting 1U rack mount
Weight 8.5 kg (18.74 lb)
500 Series Hardware
PLATFORM GUIDE
The Conductor-500 and Airwall-500 are 1U rack-mount security appliances that facilitate private overlay
networks between customer-provided equipment and devices.
Both the Conductor and Airwall Gateway have a unique public/private 2048-bit key pair and a
Tempered® signed certificate that establishes a chain of trust to a Tempered® certificate authority. The
Conductor and Airwall use these certificates to authenticate to each other and establish secure commu-
nications over trusted and untrusted networks.
This guide contains instructions for configuring both the Conductor-500 and the Airwall-500.
3
5 6
4 7 8
5 Power LED
6 Activity indicator LED
7 Status LED
8 Alert LED
3 Power switch
4 Case cover removal tab
EN
DOC-0005
9
9
10 2x SFP ports
11 1x Expansion bay
(functional for the Airwall-500 only)
5
6 Dual power supply (both required)
Ethernet Expansion Module: 2-port SFP+ (Airwall-500 only)
Ethernet Ports 2 x 10GbE SFP+
Type Fiber
Ethernet Expansion Module: 8-port RJ45 (Airwall-500 only)
Ethernet Ports 2 8 x 1GbE RJ45
Type Copper
Ethernet Expansion Module: 8-port RJ45/SFP
(Airwall-500 only)
Ethernet Ports 4 x 1GbE RJ45
4 x 1GbE SFP
Type Mixed
Regulatory Approvals
CE EN 55032: 2015 / AC: 2016 CISPR 32: 2015 (Ed
2.0) / C1: 2016
EN 61000-3-2: 2014, EN 61000-3-3: 2013
IEC IEC 60950-1:2005 (2nd edition), Am 1:2009, Am
2:2013
FCC Part 15B Class A
AS/NZS CISPR 32: 2015 CISPR 32: 2015 (Ed 2.0) / C1:
2016
VCCI VCCI-CISPR 32: 2016
Revision Date: Apr 14, 2021
500 SERIES HARDWARE
11
10
8x RJ45 Ethernet ports
Silence Alarm button
PLATFORM GUIDE
