Summary of Contents for Avatoast 184T3300B

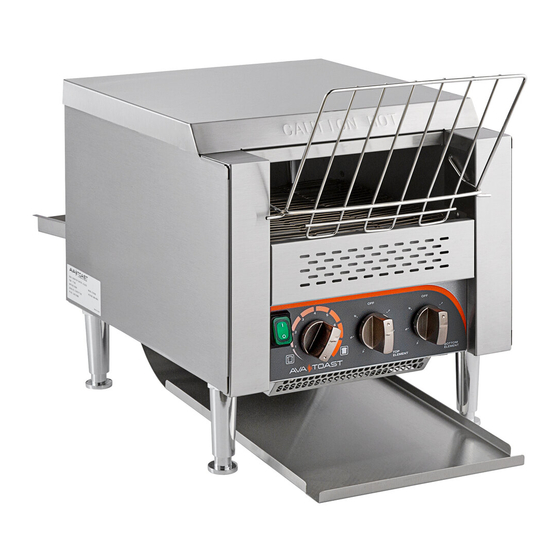

- Page 1 01/2022 USER MANUAL Adjustable Speed Conveyor Toaster 184T3300B 208V - 3300W (10" Wide Belt) 184T3300D 208V - 3300W (10" Wide Belt) 184T3600B 208V - 3600W (14½" Wide Belt) 184T3600D 208V - 3600W (14½" Wide Belt) 184T140 120V - 1750W (10" Wide Belt)
-
Page 2: Table Of Contents
INDEX Important Safety Information . . . . . . . . . . . 2 Circuit Diagram . . . . . . . . . . . . . . . . . . . . . . . 3 Discharge Assembly . -
Page 3: Important Safety Information
SAFETY When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions carefully and completely . For commercial use only . DO NOT touch hot surfaces . Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids . -
Page 4: Circuit Diagram
CIRCUIT DIAGRAM WIRING DIAGRAM LEGEND DESCRIPTION 25A/300V MODEL: CONVEYOR TOASTER 120V 184T140 16A/250V 1.75kW/120VAC/50-60Hz EH1, EH2 710W, 1040W/120V 12x12/120V ∞ 120V/60Hz 30W/150 θS 90°C 16A/250V IN5408/4A θS... -
Page 5: Discharge Assembly
DISCHARGE ASSEMBLY As detailed in the diagrams below, the unit can either be assembled with front or rear discharge depending on installation position and preference. FRONT DISCHARGE REAR DISCHARGE 1 . Pull metal plate up to the closed position 1 . Push the metal plate down to the open and latch . -
Page 6: Before Using Your Conveyor Toaster
“BUNS” - In this position, only the top element operates at full capacity . This is the ideal setting for toasting one side only of a bun . 184T3300B • 184T3300D • 184T3600B • 184T3600D These units have three controls . -
Page 7: Cleaning & Maintenance
CLEANING & MAINTENANCE CAUTION: THIS APPLIANCE SHOULD NOT BE IMMERSED IN WATER. USE ONLY A DAMP CLOTH OR SPONGE DIPPED IN SOAPY WATER. DO NOT USE STEEL WOOL AS IT WILL DAMAGE THE BRIGHT STAINLESS STEEL FINISH. EXTERIOR & CRUMB TRAY Unplug the power cord from the wall outlet . -
Page 8: Specifications
DIMENSIONS MODEL 184T3300B / 184T3300D 14 .5" 16 .5" 17" 184T3600B / 184T3600D 18 .5" 16 .5" 18" 184T140 14 .5" 16 .5" 30"... -
Page 9: Limited Warranty
EQUIPMENT LIMITED WARRANTY AvaToast warrants its equipment to be free from defects in material and workmanship for a period of 1 year . This is the sole and exclusive warranty made by AvaToast covering your AvaToast brand equipment . A claim under this warranty must be made within 1 year from the date of purchase of the equipment.
