ARTILLIAN ROPS MOUNTED
BEVERAGE COOLER HOLDER
For use on Artillian ROPS Mounted Tool Bar (P/N: 1RMTB) (sold separately)
Comes with 15ft long x 1 inch wide E-Track Cam-buckle Strap (not shown)

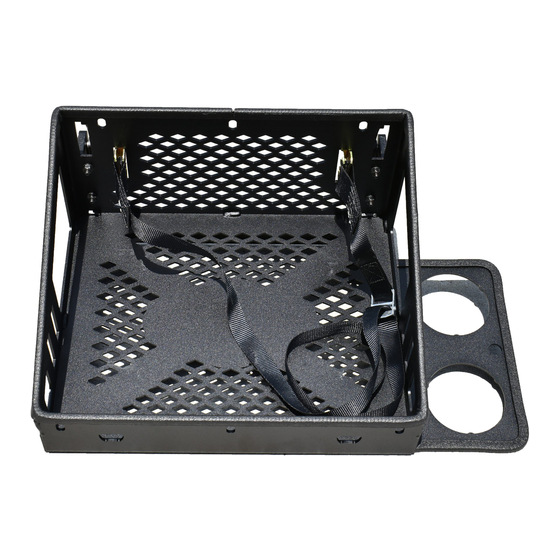

The Artillian Beverage Cooler Holder is the perfect accessory for a full day
out on the tractor. Large enough to hold most 12-pack coolers, you now
have a place to store your lunch and some ice cold drinks! An included
cam buckle strap with E-track fittings securely holds a cooler in place and
allows for quick removal on the go. Many E-track locking positions suit
various cooler sizes and orientations. Texture black powder coat,
integrated bottle openers, and two included cup holders round out the
design.
Integrated Cam Lever Latches securely lock onto the Artillian ROPS
Mounted Tool Bar (sold separately) in seconds without the use of tools.
Approximate Set-Up Time
Experienced Dealer Technician – 15 Minutes
Average Dealer Technician – 15 Minutes
Do-It-Yourself – 15 Minutes
CAUTION
The contents of this envelope are the property of the owner. Leave with the owner when installation is complete.
P/N: 1RMBCH
Approximate Product Specifications
Overall dimensions: 22.25" L x 16.25" W x 11.25" H
Weight: 19 lbs. (not including mounting bar)
Capacity: 40 lbs.
Do not exceed the rated capacity for the Beverage Cooler Holder. Doing so may
result in damage to the holder and/or the Tool Bar and will void the warranty.
Rev. B, 08/10/2020
p/n: IM-1RMBCH
1 of 6
Advertisement
Summary of Contents for Artillian 1RMBCH
- Page 1 For use on Artillian ROPS Mounted Tool Bar (P/N: 1RMTB) (sold separately) Comes with 15ft long x 1 inch wide E-Track Cam-buckle Strap (not shown) The Artillian Beverage Cooler Holder is the perfect accessory for a full day out on the tractor. Large enough to hold most 12-pack coolers, you now...
- Page 2 2 of 6 SET-UP SET-UP Bungee Cord E-Track Slots Mounting Slots 1. The beverage cooler holder features include many E-Track slots, bungee cord holes, bottle openers, cup holders and even a carabiner clip hole for a carabiner mounted accessory (for example: a Bluetooth speaker).
- Page 3 3 of 6 SET-UP SET-UP (cont’d.) 4. Install the adjustable length E-track cam-buckle strap in the desired E-track slot location. Route the strap around the front of the cooler as shown in fig. Note: If you have chosen to use one of the alternate E-track slots, route the strap accordingly.
- Page 4 4 of 6 ATTACHING AND OPERATION ATTACH TO MOUNTING BAR: Note: The Artillian ROPS Mounted Toolbar is designed to hold multiple accessories at one time. If placed appropriately, up to 3 separate accessories may be possible. For example, the Chainsaw Mount, Fuel Can Holder, and Beverage Cooler Holder were designed to fit on the toolbar simultaneously.
-
Page 5: Service Parts
5 of 6 SERVICE PARTS: 1" WIDE HOLD-DOWN, 15' LG, BLACK CAM LEVER LATCH BEVERAGE COOLER HOLDER (with Trim P/N: 9SV-9BC06 (QTY.: ONE) P/N: 8SV-110-00071 (QTY.: ONE) Lok); P/N: 8SV-WA-00372 (QTY.: ONE) TRIM LOK (10 feet long) SAFETY WALK ADHESIVE STRIPS CUP HOLDER, 3.75"... -
Page 6: Other Accessories
6 of 6 OTHER ACCESSORIES: ROPS MOUNTED TOOLBOX, X-LARGE ROPS MOUNTED TOOL RACK ROPS MOUNTED TOOLBOX, LARGE P/N: 1RMTRK P/N: 1RMTBXL P/N: 1RMTBXS ROPS MOUNTED CHAINSAW MOUNT ROPS MOUNTED TOOL BASKET ROPS MOUNTED FUEL CAN HOLDER P/N: 1RMCSM P/N: 1RMTBSK P/N: 1RMFCH (chainsaw shown for illustration purposes) (fuel can and accessories shown for illustration purposes)
